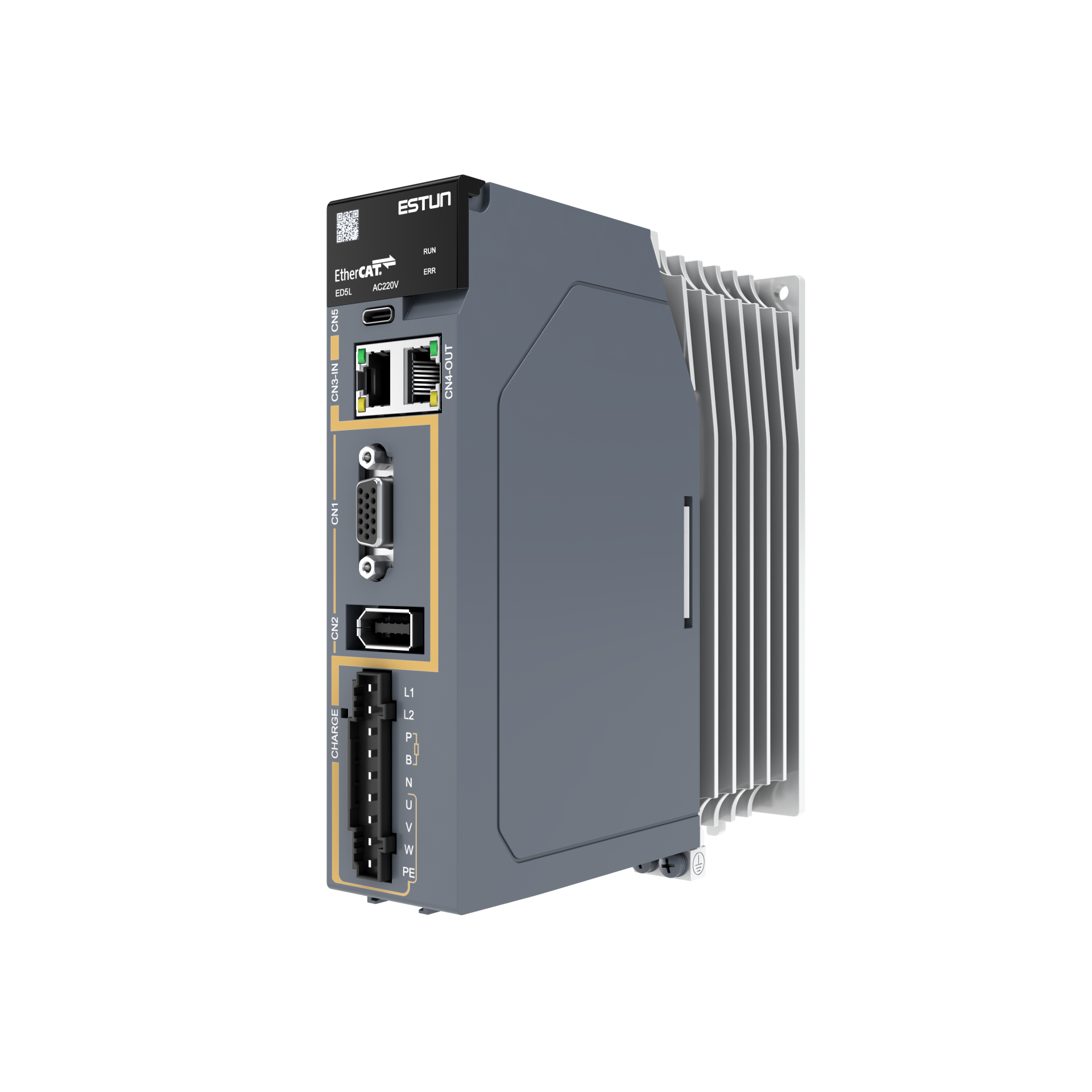

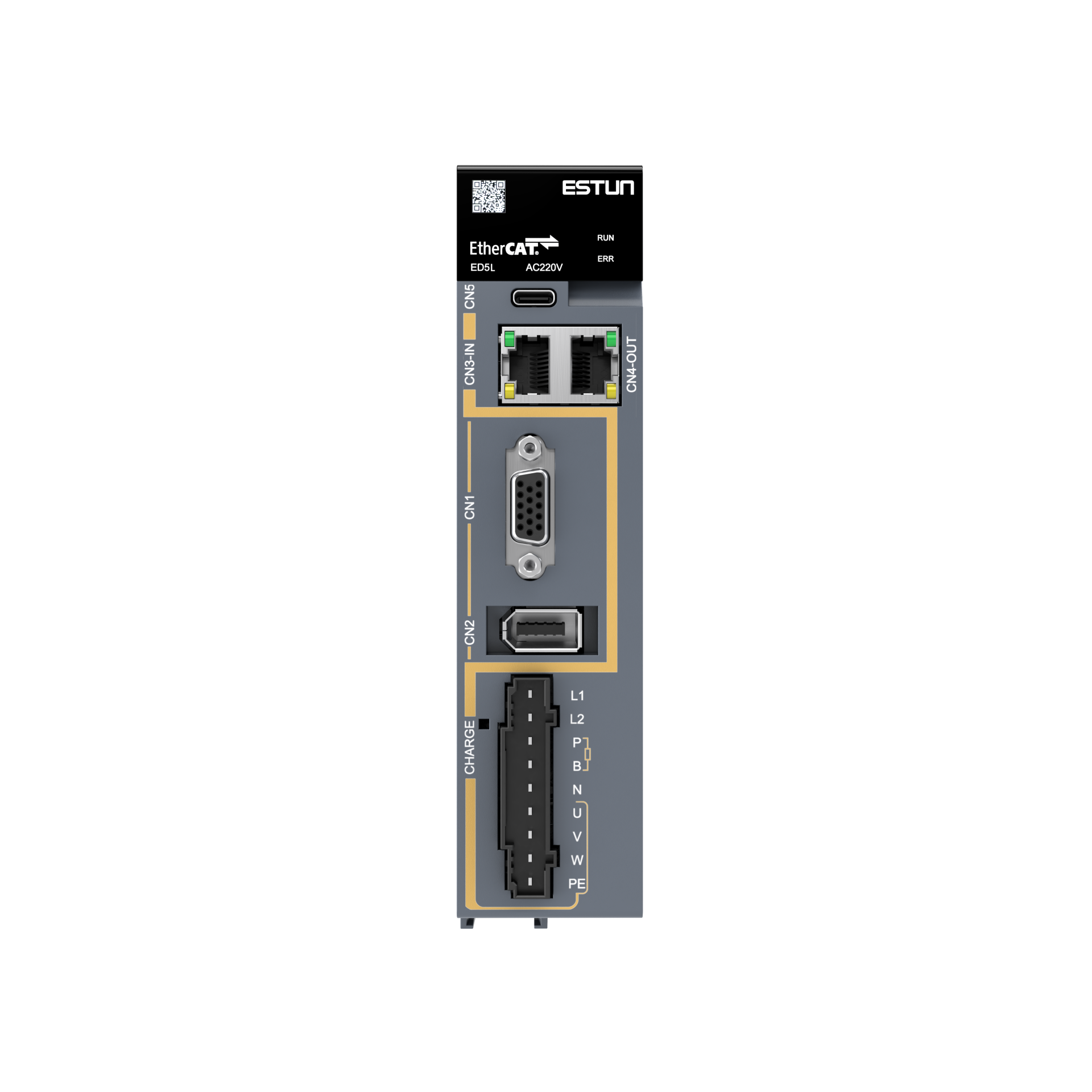

ED5L Series AC Servo Drive

The ED5L Series AC Servo Drive is a general-purpose, high-performance drive product focused on the low-to-medium power range, covering power ratings from 100 W to 7.5 kW, and capable of flexibly adapting to equipment drive requirements across diverse scenarios.The product offers in-depth support for the EtherCAT communication protocol, ensuring high-speed and stable signal transmission in industrial automation scenarios, and provides reliable drive support for precision control applications.

High Overload Capacity for More Stable Operation

With up to 3.5× overload capacity, it can easily handle short-term high-load conditions, reducing operation interruptions caused by load fluctuations; paired with a 23-bit absolute encoder, it further improves position control accuracy, ensuring stable equipment output.

Rich Intelligent Functions for More Efficient Maintenance

Featuring auto-tuning, full-band automatic vibration suppression, and friction compensation functions, it automatically optimizes operating parameters and reduces commissioning difficulty; equipped with black box, soft reset, and online inertia identification functions, it facilitates fault tracing and equipment maintenance, improving O&M efficiency. CE certification is in progress, with compliance continuously being enhanced.

Wide Power Coverage for Multiple Industries

With a power range covering 100W to 7.5kW, it adapts to different power requirements without frequent drive model changes; widely applicable to industrial fields such as photovoltaics, lithium batteries, 3C display panels, robotics, semiconductors, machine tools, and laser processing, meeting the needs of diverse automation scenarios.

3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy

General Specifications			Description
Input Power Supply			200VAC: Single-phase AC 200V–240V, -15%～+10%, 50Hz/60Hz; Three-phase AC 200V–240V, -15%～+10%, 50Hz/60Hz (power ≥ 1.0kW); 400VAC: Three-phase AC 380V–440V, -15%～+10%, 50Hz/60Hz.
Operating Environment		Temperature	Single unit operation: -5℃～45℃; when operating at 45℃～55℃, the average load rate shall not exceed 80%; Multiple units installed in close proximity: -5℃～40℃.
Operating Environment		Humidity	5%～95%RH (non-condensing, non-free
Operating Conditions		Storage Environment	Temperature: -20℃～85℃, Humidity: 5%～95%RH (non-condensing, non-freezing)
Operating Conditions		Altitude	≤1000m
Performance Specifications		Vibration Resistance	Vibration Resistance: 4.9m/s²
Performance Specifications		Shock Resistance	Shock Resistance: 19.6m/s²
Power System			Recommended: TN system
Mounting Structure			Base Mounting
Performance	Speed Fluctuation Rate		±0.01% of rated speed or less (load fluctuation: 0%–100%); 0% of rated speed (voltage fluctuation: ±10%); ±0.1% of rated speed or less (temperature fluctuation: 25℃±25℃).
Performance	Soft Start Setting		0–10s (acceleration and deceleration can be set separately)
USB Communication Standard			Compliant with USB 2.0 standard (12 Mbps)
Display			5-digit LED Display
Panel Operator			4 Keys
Regenerative Braking			Products rated 100 W–400 W do not include a built-in braking resistor; all other power ratings come with a built-in braking resistor.*
Protection Functions			Overcurrent, overvoltage, undervoltage, overload, regenerative fault, overspeed, etc.
Auxiliary Functions			Alarm History, JOG Operation, Load Inertia Identification, Machine Analyzer, Auto-Tuning Tool, etc.

Fieldbus Specifications	Description
Power Range	100W~7.5kW
I/O Signals - Input Signals	Operating Voltage Range: 24 VDC ± 20%, Number of Input Channels: 5
I/O Signals - Output Signals	Operating Voltage Range: 5 VDC ~ 30 VDC, Number of Output Channels: 3
Communication and Standards	Standard EtherCAT protocol and profiles
