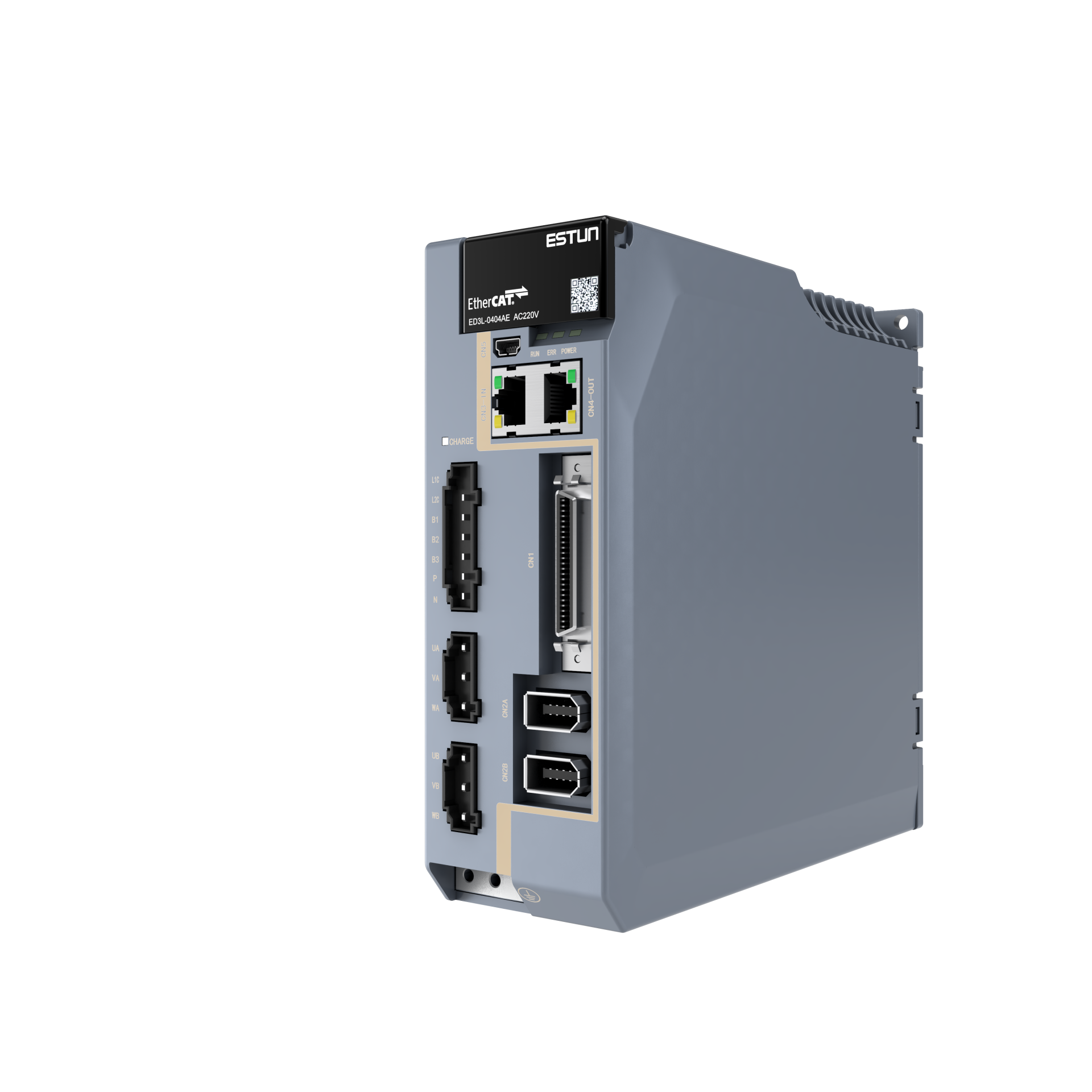

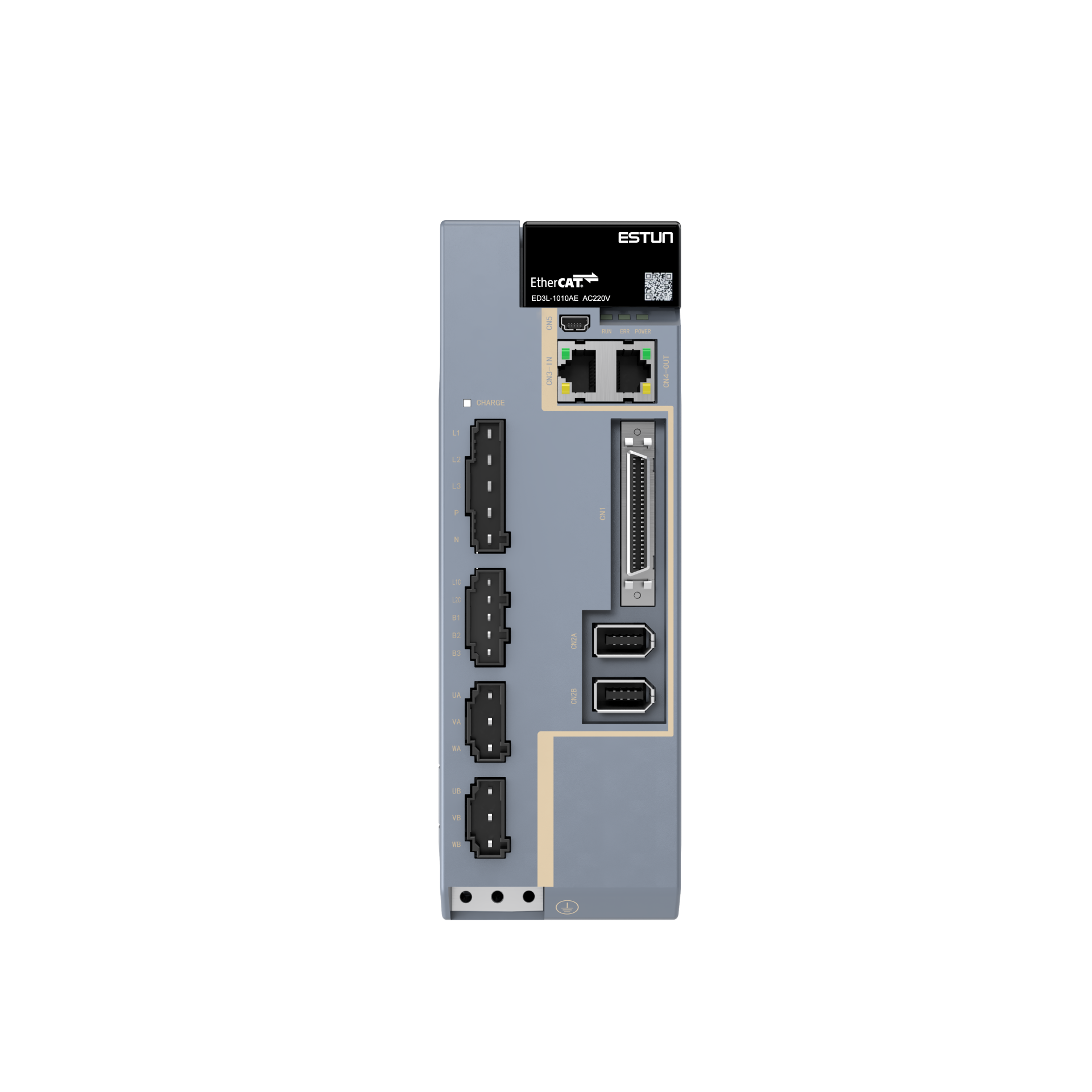

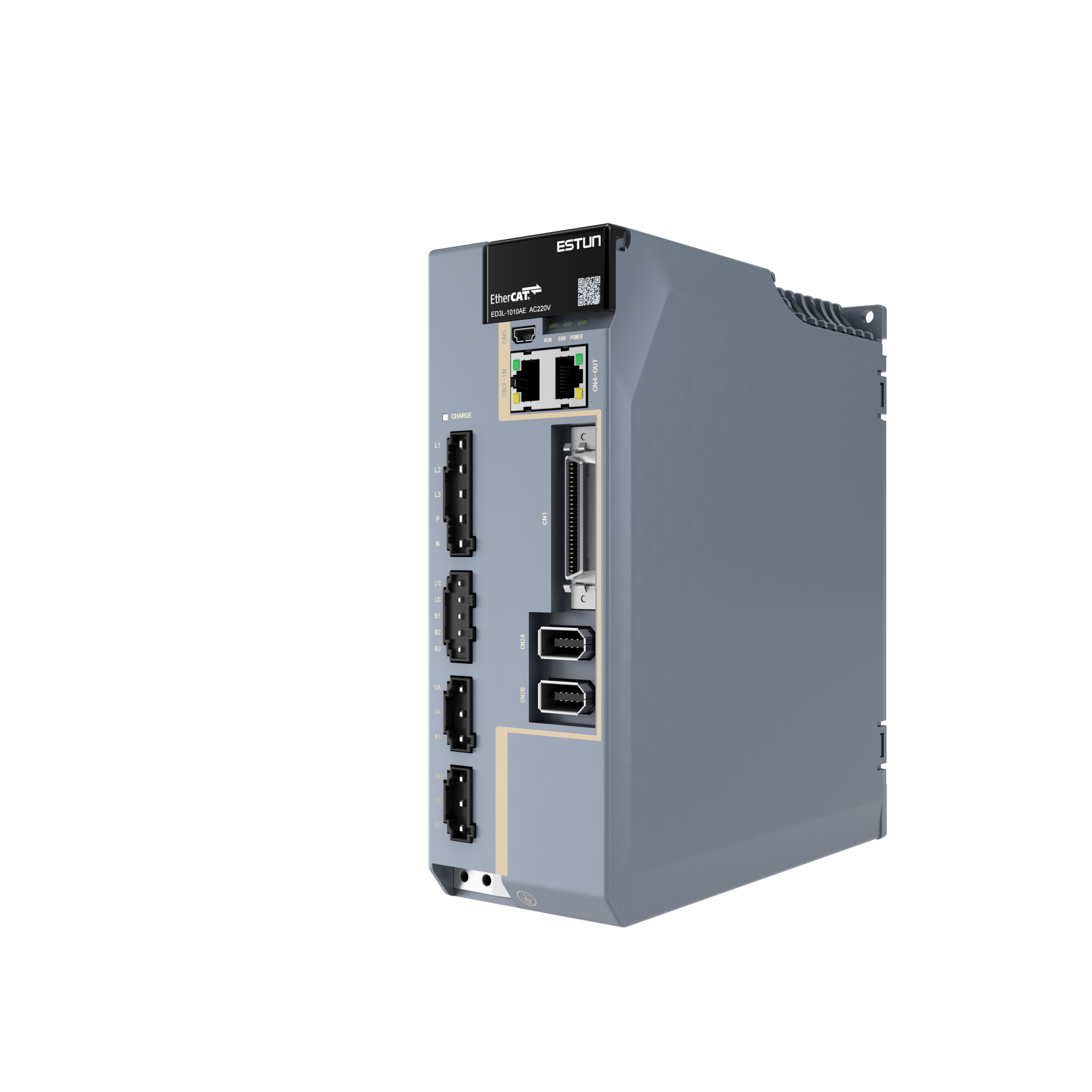

ED3L Series Dual-Axis Linear Servo Drive
The ED3L Series Dual-Axis Linear AC Servo Drive is a general-purpose high-performance product that combines the advantages of dual-axis control and linear drive. The product covers a power range of 400 W to 1.0 kW, adapting to low-to-medium power dual-axis linear motion control requirements; it supports two mainstream communication protocols, EtherCAT and CANopen, ensuring stable and flexible signal transmission in industrial environments; the encoder is compatible with ABZ incremental encoders and BiSS-C encoders, meeting diverse precision detection requirements and providing a highly adaptable solution for automation applications.
Reliable Performance, Adaptable to Mainstream Requirements
Supports EtherCAT communication (CANopen / pulse and analog under development), supports only 17-bit absolute encoders, and supports 3x overload capability; power coverage from 100 W to 7.5 kW, focusing on standardized output.
Compact and Space-Saving, Widely Adaptable to Applications
The compact and refined design supports close-mounted installation, enabling efficient use of cabinet space; it is widely used in textiles, woodworking, robotics, logistics, sheet metal, and other fields.
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
|
Bus Specifications |
Description | |
|
I/O Signals |
Input Signals |
Operating Voltage Range: 24 VDC ± 20% Number of Input Channels: 5 |
|
Output Signals |
Operating Voltage Range: 5 VDC – 30 VDC Number of Output Channels: 3 (1 channel fixed for servo alarm) | |
|
Encoder |
Pulse Signals |
A, B, Z (Incremental), BiSS-C (Serial) |
|
Hall Signals |
5 V Single-Ended Signal | |
|
Communication and Standards |
Standard: EtherCAT / MODBUS Protocol and Profile | |
200VAC
|
Item |
04A |
10A |
15A |
20A |
0404A |
1010A | ||
|
Continuous Output Current [Arms] |
2.9 |
6.9 |
9.5 |
12.6 | 2.9 | 2.9 |
6.9 | 6.9 |
|
Maximum Output Current [Arms] |
11.5 |
21.0 |
31.6 |
42.0 |
11.5 | 11.5 |
21.0 | 11.5 |
|
Main Power Equipment Capacity [kVA] (Single-Phase) |
1.2 |
2.6 |
4.0 |
- |
1.9 |
4.5 | ||
|
Main Power Equipment Capacity [kVA] (Three-Phase) |
- |
2.0 |
3.0 |
3.5 |
1.6 |
3.8 | ||
400VAC
|
Item |
10D |
15D |
20D |
30D |
50D |
75D |
|
Continuous Output Current [Arms] |
3.6 |
5.0 |
7.1 |
12.0 |
17.0 |
27.3 |
|
Maximum Output Current [Arms] |
10.9 |
16.3 |
21.2 |
36.6 |
53.0 |
70.0 |
|
Main Power Equipment Capacity [kVA] (Three-Phase) |
1.8 |
2.8 |
3.5 |
5.0 |
8.2 |
12.0 |
