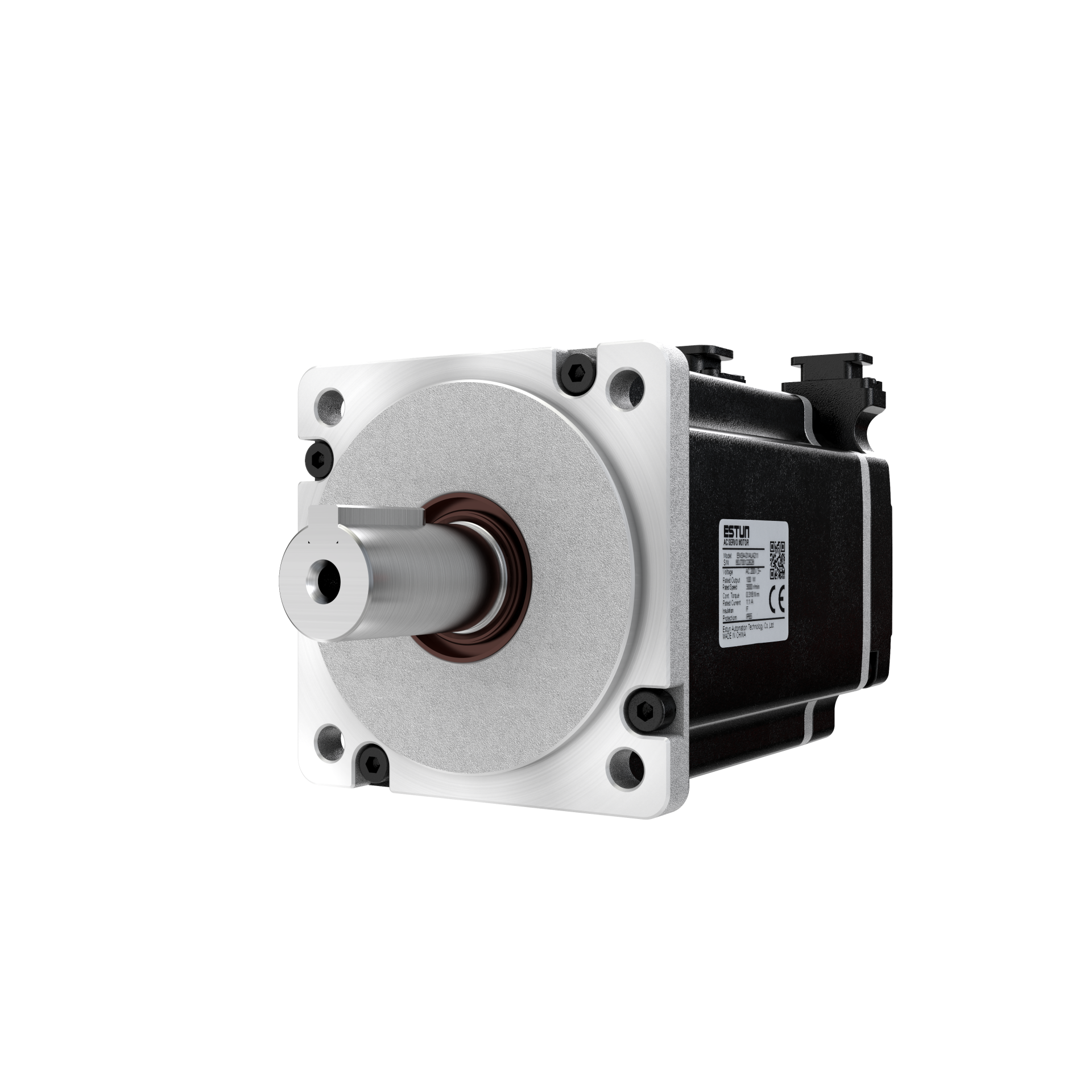

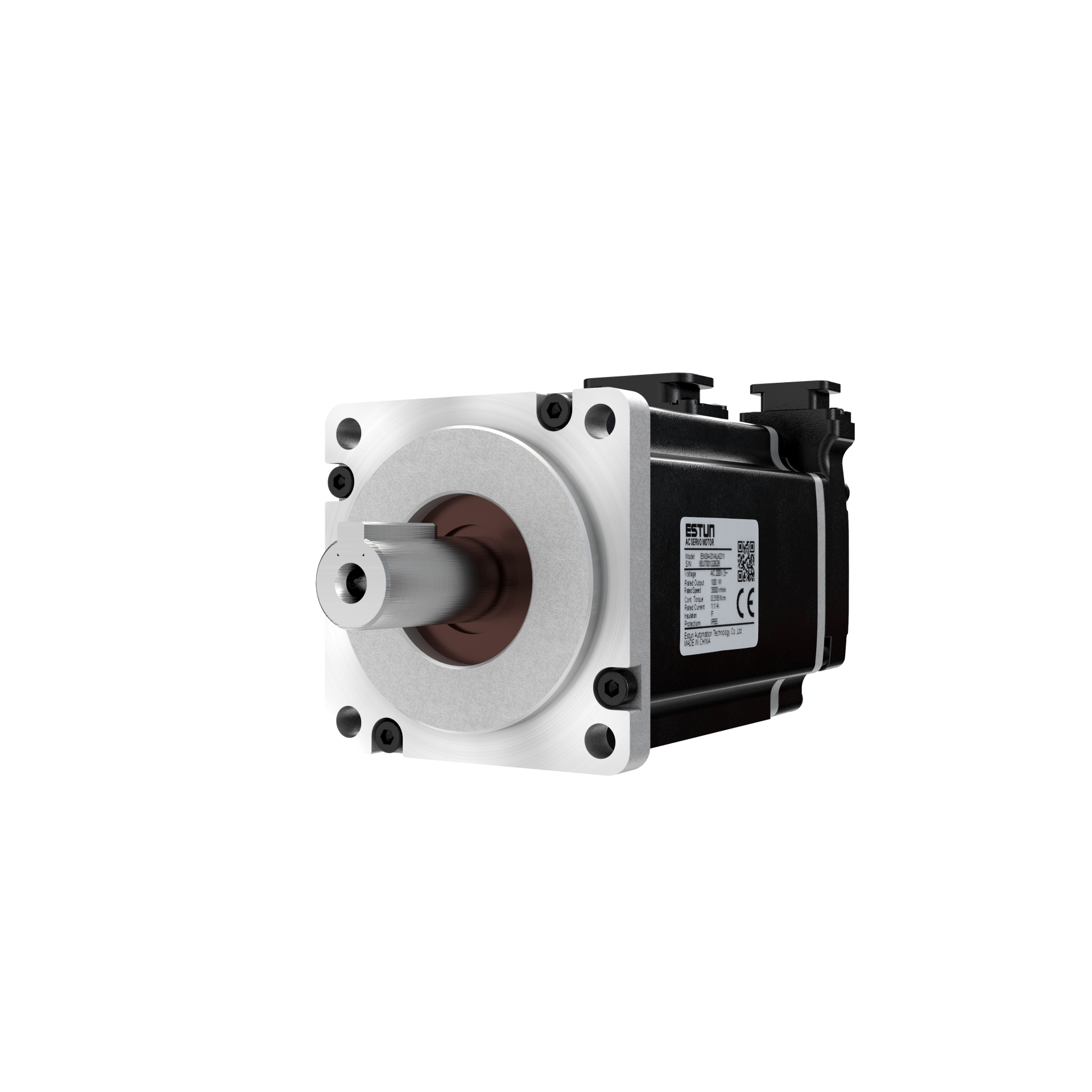

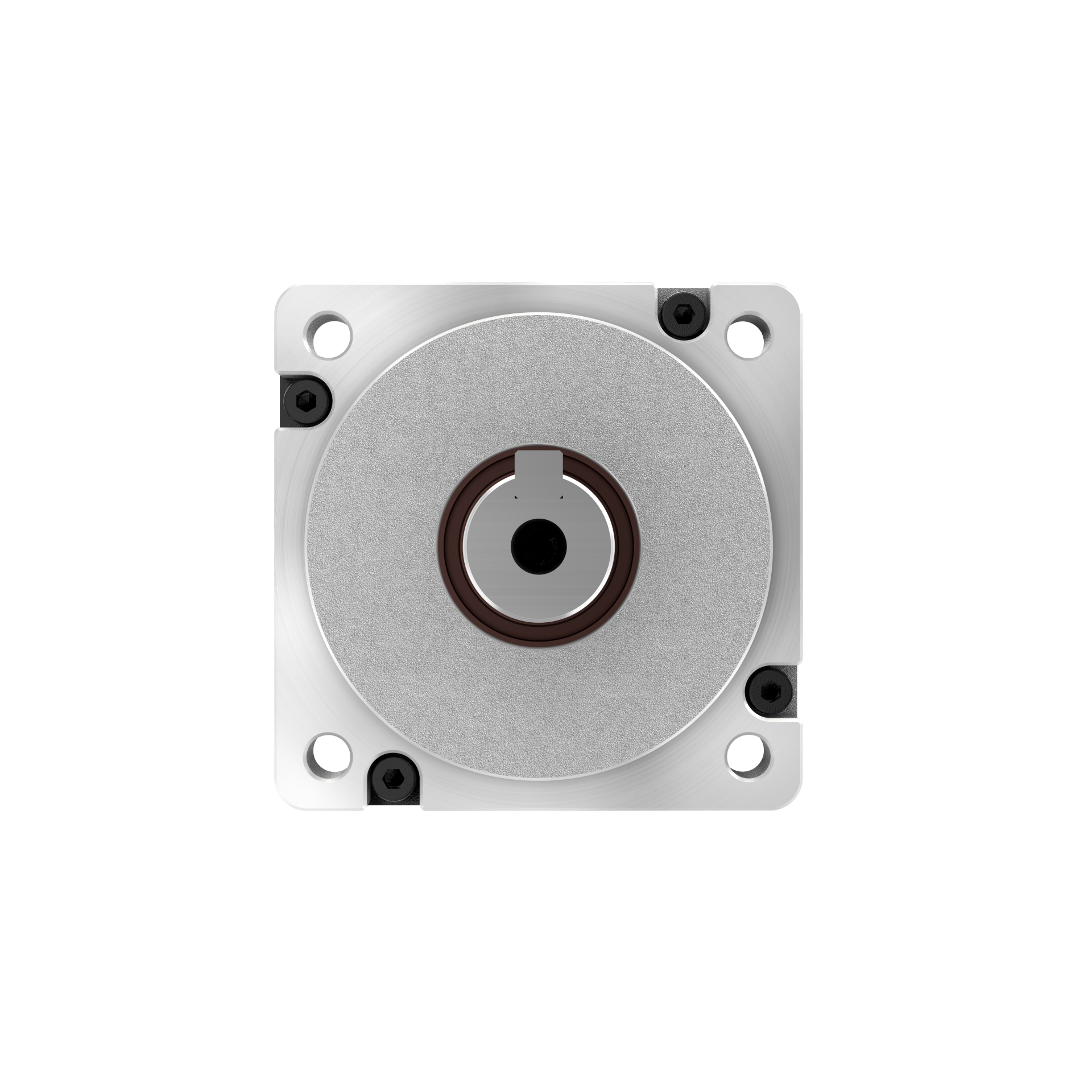

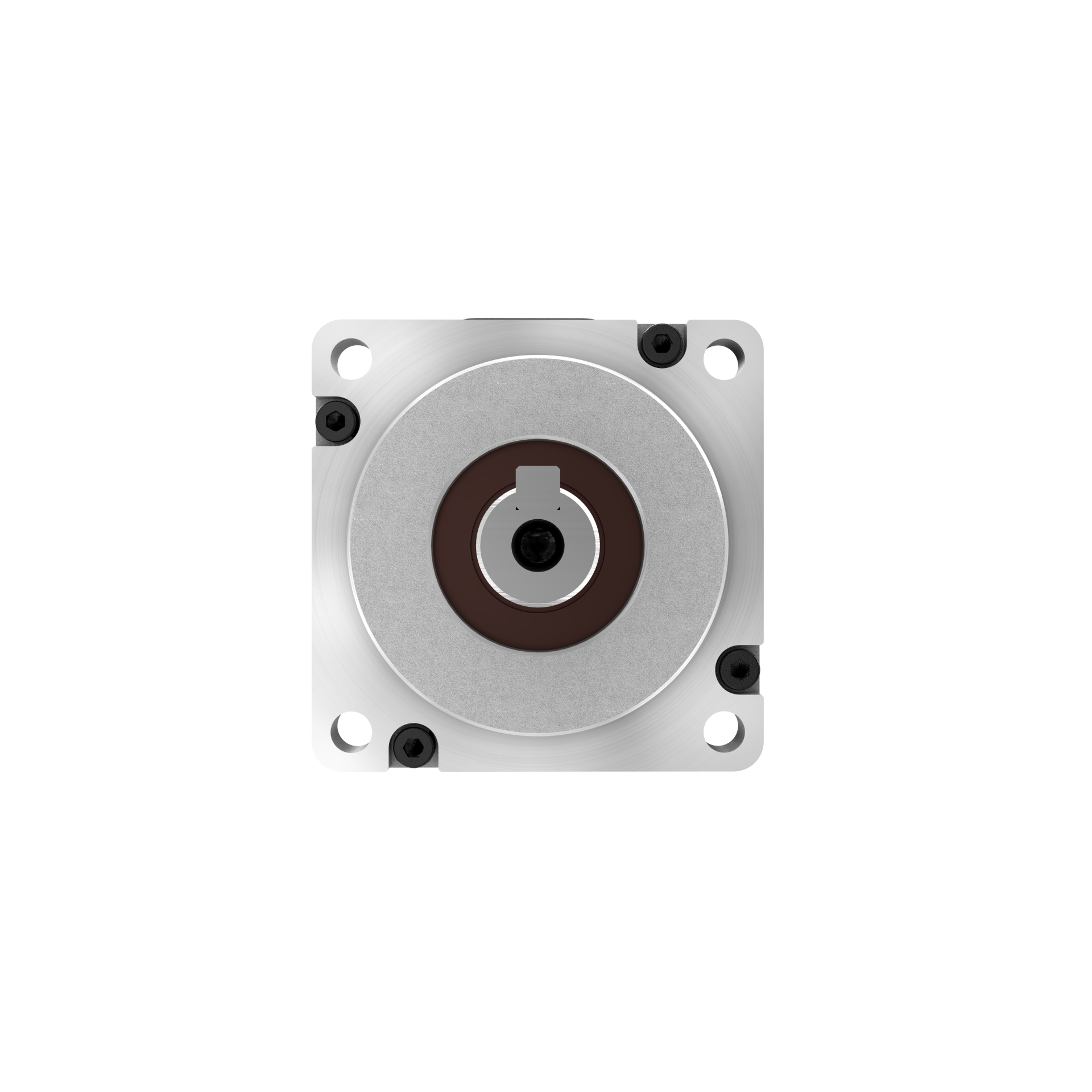

MXJ Series Medium-Inertia Servo Motor

MXJ Series Medium-Inertia Servo Motors, with power coverage from 200 W to 1.0 kW, a rated speed of 3000 rpm, a protection rating of up to IP65, and support for certification requirements such as CE and UL;

Low Temperature Rise Operation
Adopts advanced heat dissipation technology and design, generating less heat during operation, effectively controlling temperature rise, avoiding performance degradation caused by overheating, extending motor service life, and ensuring operational stability.

Comprehensive Certifications
Supports certification requirements such as CE and UL, meeting the stringent electrical safety and electromagnetic compatibility requirements of global markets, facilitating barrier-free export and widespread application of equipment.

3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy

Servo Motor Parameters	200W	400W	750W	1kW
Rated Output	0.2 kW	0.4 kW	0.75 kW	1 kW
Rated Torque	0.637 N·m	1.27 N·m	2.39 N·m	3.18 N·m
Instantaneous Peak Torque	2.23 N·m	4.46 N·m	8.37 N·m	9.54 N·m
Rated Current	1.5 Arms	2.8 Arms	5.1 Arms	7.1 Arms
Instantaneous Maximum Current	5.8 Arms	11.2 Arms	19.5 Arms	22.0 Arms
Rated Speed	3000 r/min
Maximum Speed	6000 r/min
Rotor Moment of Inertia	0.33×10⁻⁴ kg·m² (0.36)	0.64×10⁻⁴ kg·m² (0.68)	1.64×10⁻⁴ kg·m² (1.69)	2.26×10⁻⁴ kg·m² (2.41)
Weight	0.9(1.0) kg	1.3(1.4) kg	2.3(2.9) kg	3.1(3.8) kg
Brake Rated Voltage	DC24V±10%
Brake Rated Power	7.4 W		9.6 W
Brake Rated Torque	1.5 Nm		3.2 Nm
Encoder	17-Bit Absolute；23-Bit Absolute
Insulation Class	F
Ambient Temperature	0°C ~ +40°C (Non-Freezing)
Ambient Humidity	20% ~ 80% RH (Non-Condensing)
Vibration Resistance	Vibration: Dynamic ≤ 49 m/s² (5G); Static ≤ 24.5 m/s²; Shock Resistance ≤ 98 m/s² (10G)
Protection Method	Totally Enclosed, Self-Cooled, IP65
