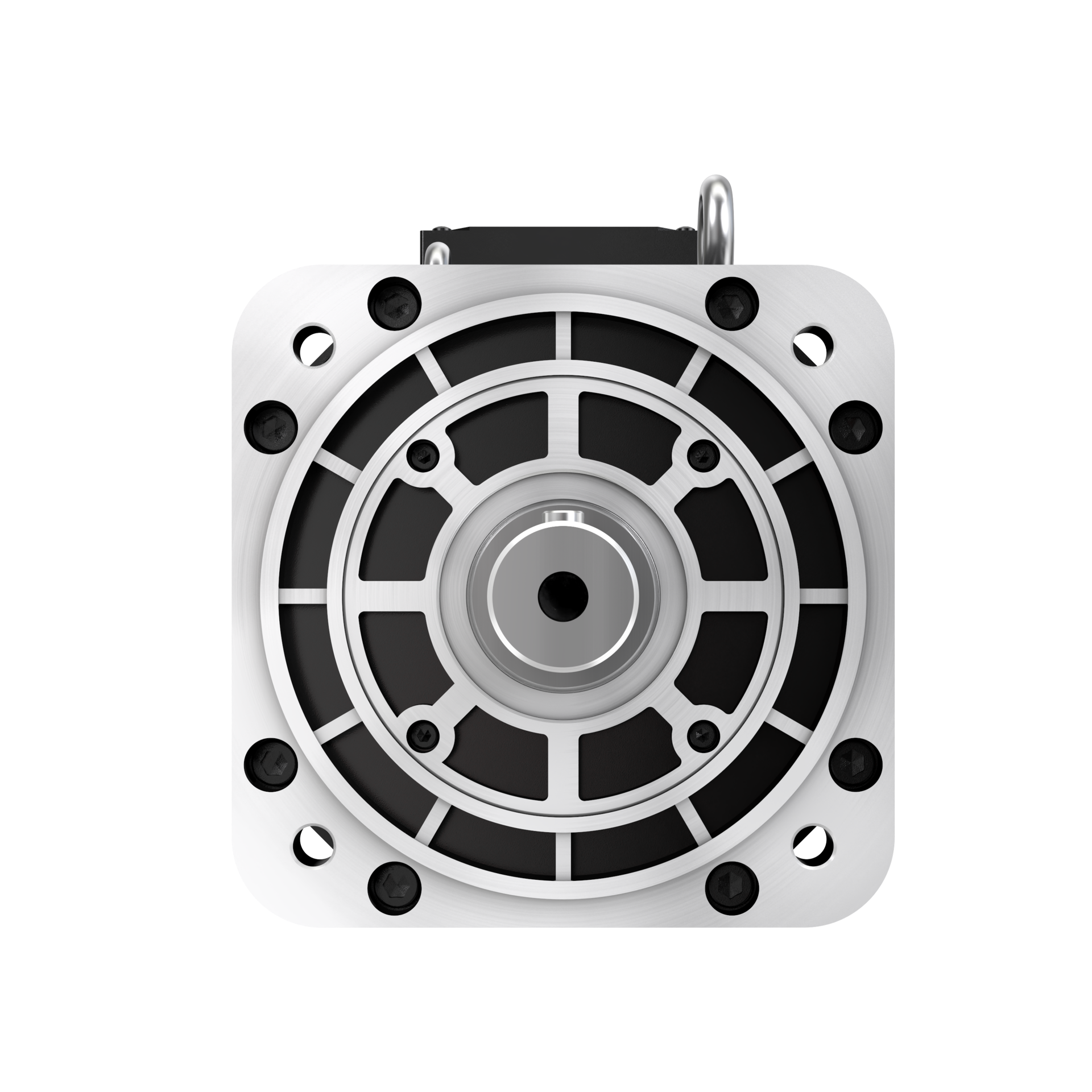

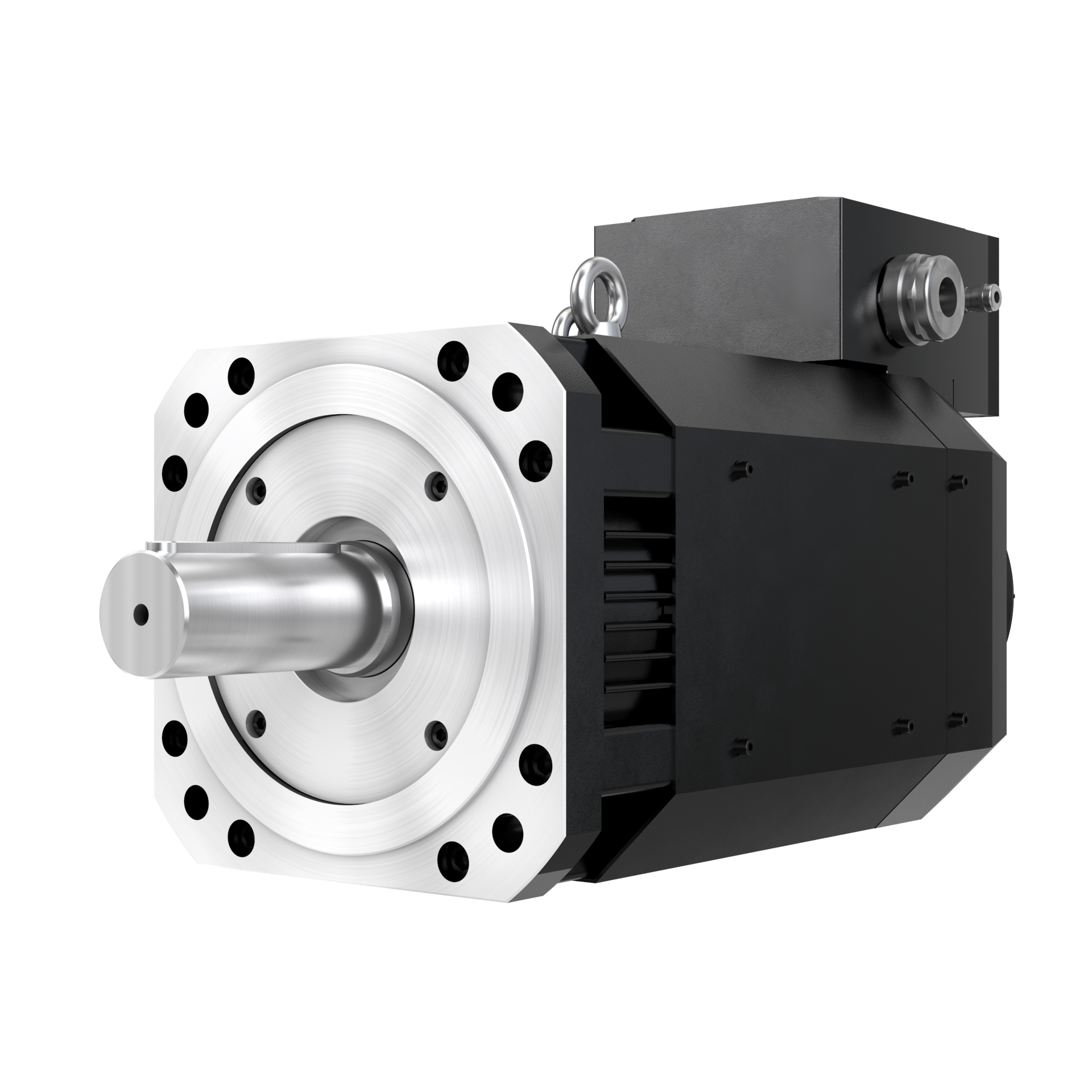

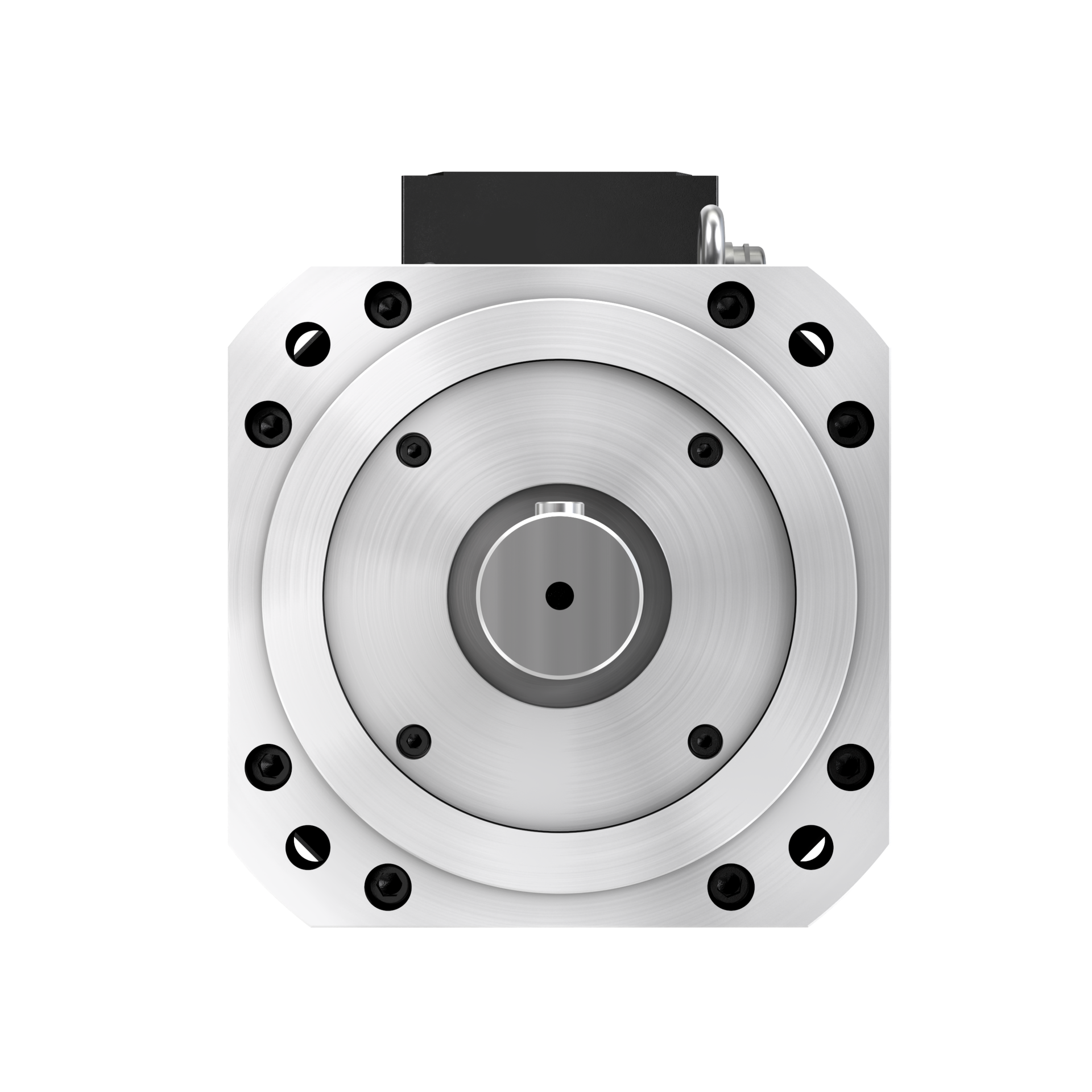

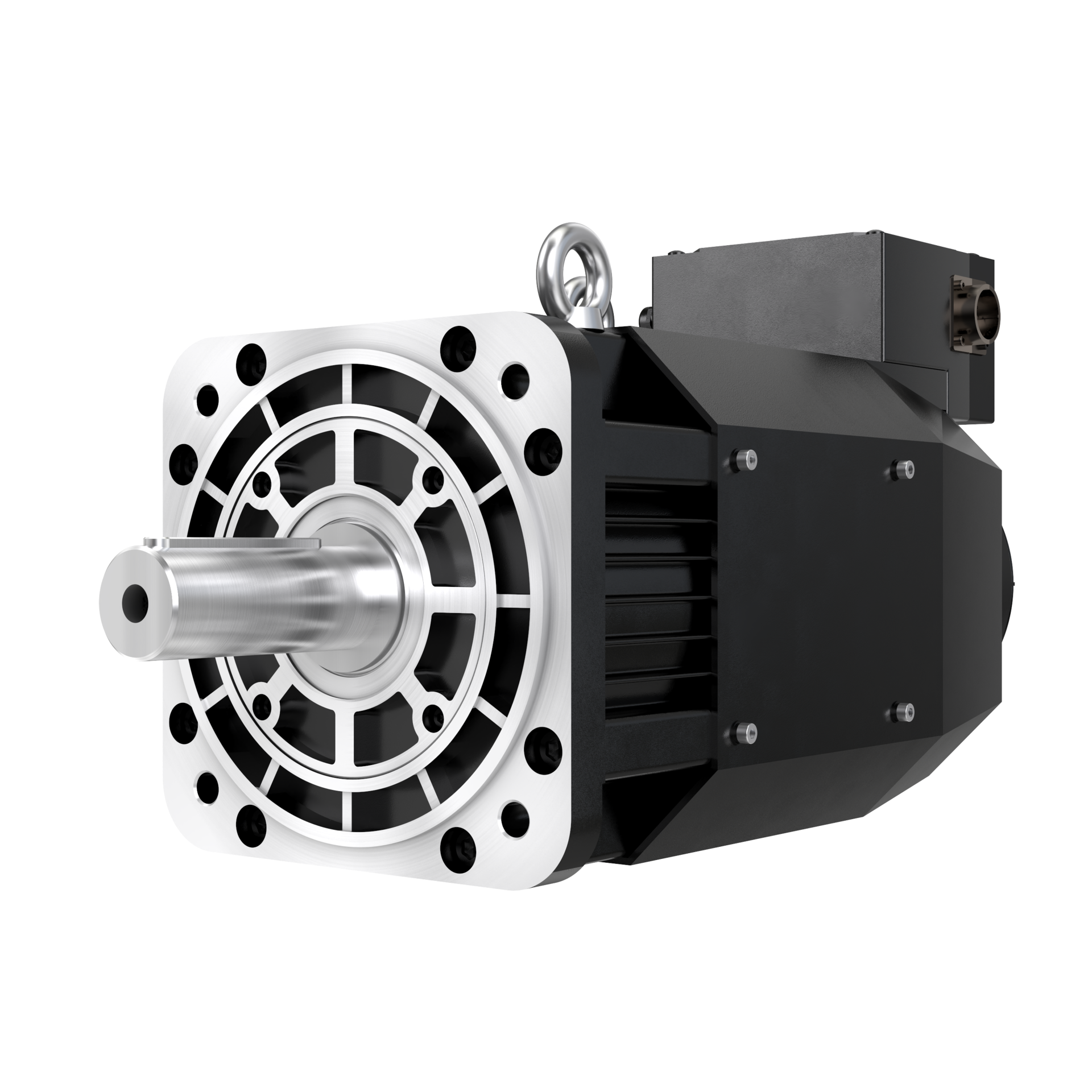

EMB Series Medium-Inertia Servo Motor

EMB Series Servo Motors, with power coverage from 7.5 to 22 kW, rated speed, a protection rating of up to IP54, air-cooled circuit design, and a built-in thermal protector, enabling highly reliable operation;

High Reliability
Adopts an efficient air-cooled circuit design, combined with a built-in intelligent thermal protector, to precisely monitor temperature rise and actively dissipate heat, ensuring high reliability and stability under long-term high-load operating conditions.

Flexible Configuration
Optional configurations available according to customer requirements, including 17/23-bit absolute encoders, resolvers, brakes, etc.

3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy

Item			Specification
Input Power	Main Circuit		Three-Phase AC 380 V ~ 440 V, -15% ~ +10%, 50 Hz / 60 Hz
Input Power	Control Circuit		Single-Phase AC 200 V ~ 440 V, -15% ~ +10%, 50 Hz / 60 Hz
Control Method			SV/V/PF Control
Feedback			17-Bit Absolute Encoder
			20-Bit Incremental Encoder
			23-Bit Absolute Encoder
			Resolver
Construction			Base Mounting
Performance	Speed Control Range		1:5000
	Speed Variation Rate	Load Variation Rate	Under 0–100% load; within ±0.01% (at rated speed)
		Voltage Variation Rate	Rated output ±10% (at rated speed)
		Temperature Variation Rate	25 ± 25°C; within ±0.1% (at rated speed)
Torque Control	Analog Input Signal	Command Voltage	±10 V DC (rated speed), settable within the range of 0 ~ ±10 V DC; Maximum Input Voltage: ±12 V
		Input Impedance	Approx. 10 MΩ or more
		Response Time Parameter	10μs
Speed Control	Analog Input Signal	Command Voltage	±10 V DC (rated speed), settable within the range of 0 ~ ±10 V DC; Maximum Input Voltage: ±12 V
		Input Impedance	Approx. 10 MΩ or more
		Response Time Parameter	10μs
	Speed Command Setting	Rotation Direction Selection	Direction switching via P-COM
	Speed Command Setting	Speed Selection	Speed 1–7 Selectable
	Function	Soft Start Setting	0–10 s (acceleration and deceleration can be set separately)
Position Control	Command Pulse	Type	Select any one of the following: Pulse Train, CCW + CW, 90° Phase Difference Two-Phase Pulse (Phase A + Phase B)
		Form	Non-Insulated Driver (Approx. 5 V), Open Collector
		Frequency	1-Phase: 4 Mpps; 2-Phase: 2 Mpps; 4x Frequency Multiplication: 5 Mpps; Open Collector: 200 kpps; the frequency decreases when duty cycle deviation occurs
	Position Command Setting	Position Setting	36 position contacts can be set
