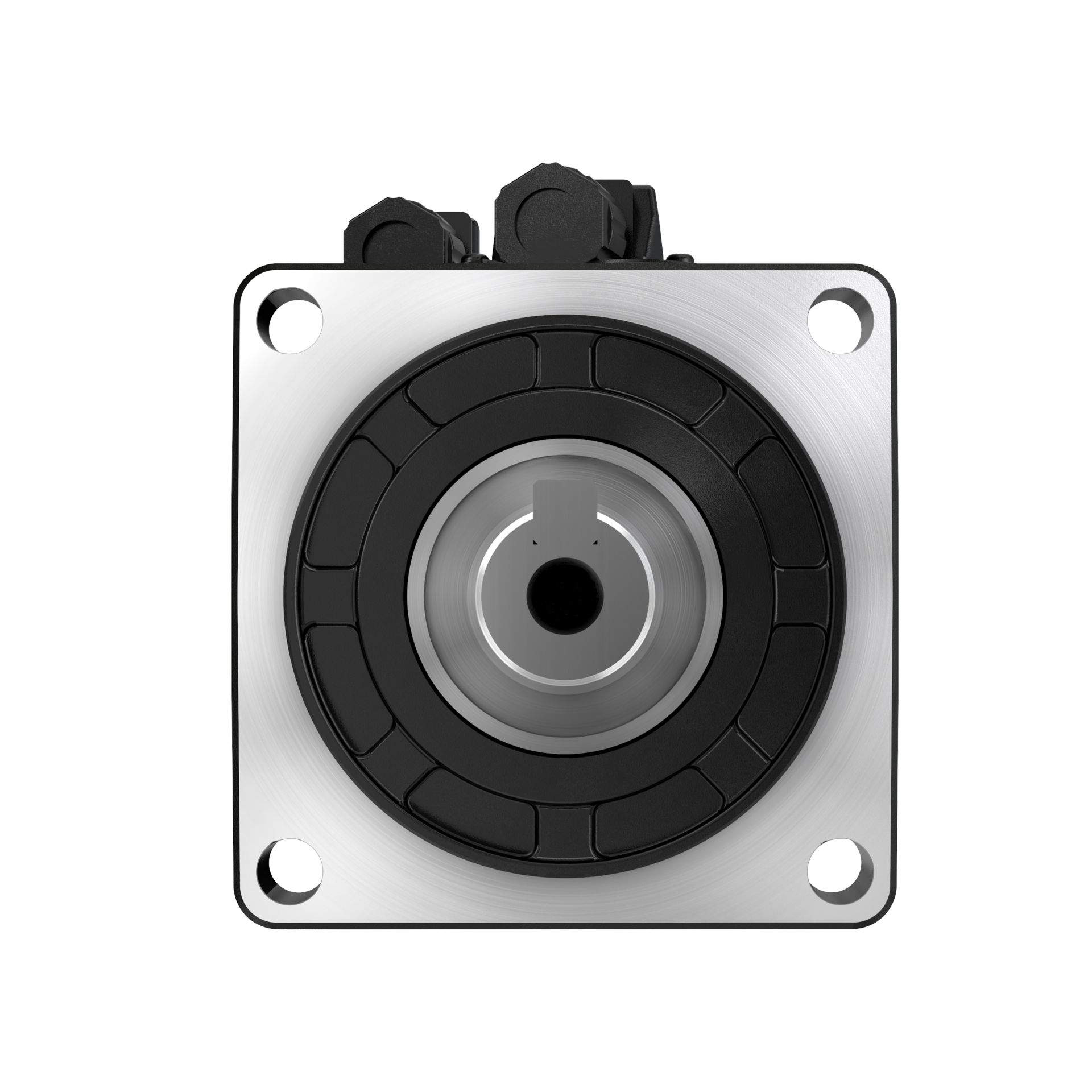

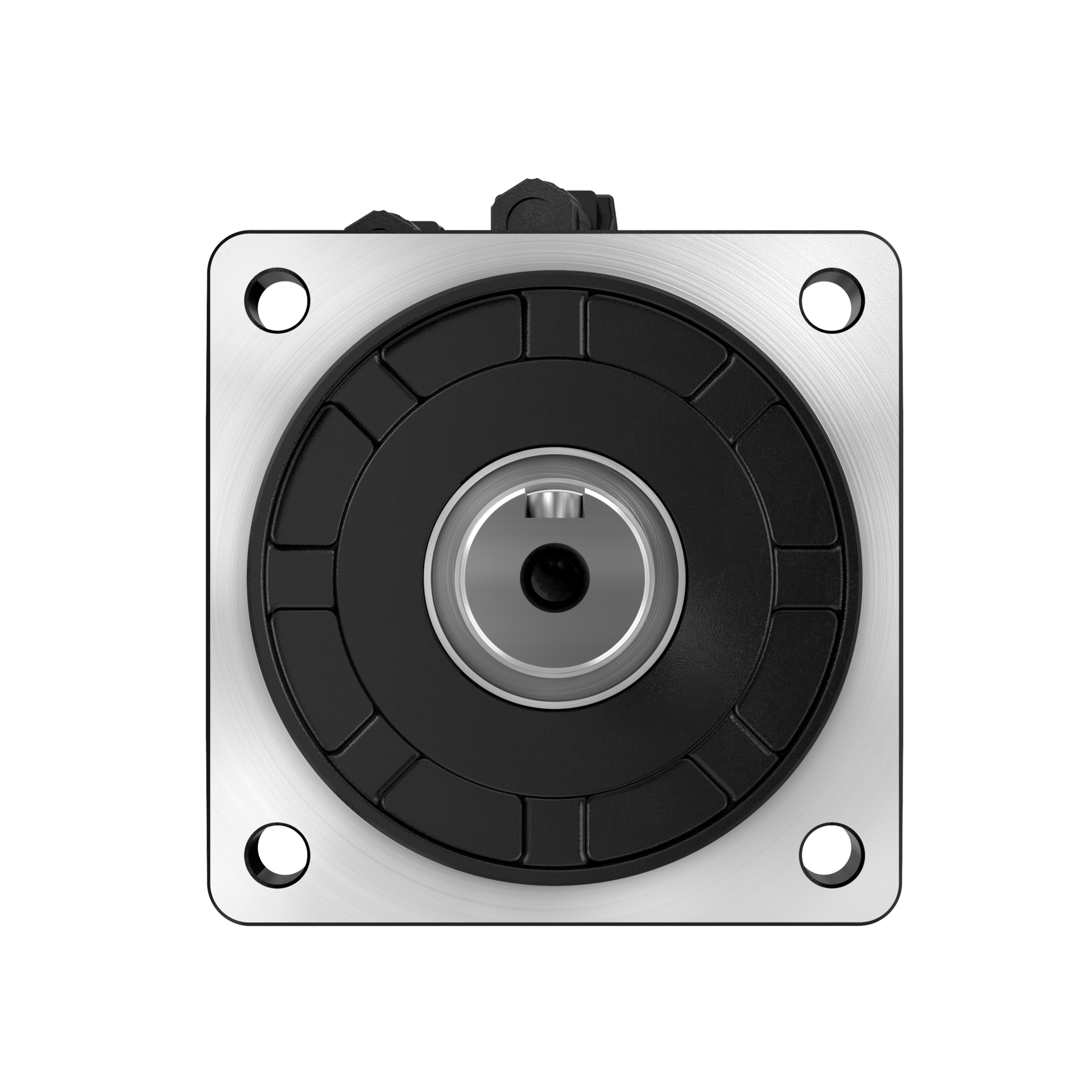

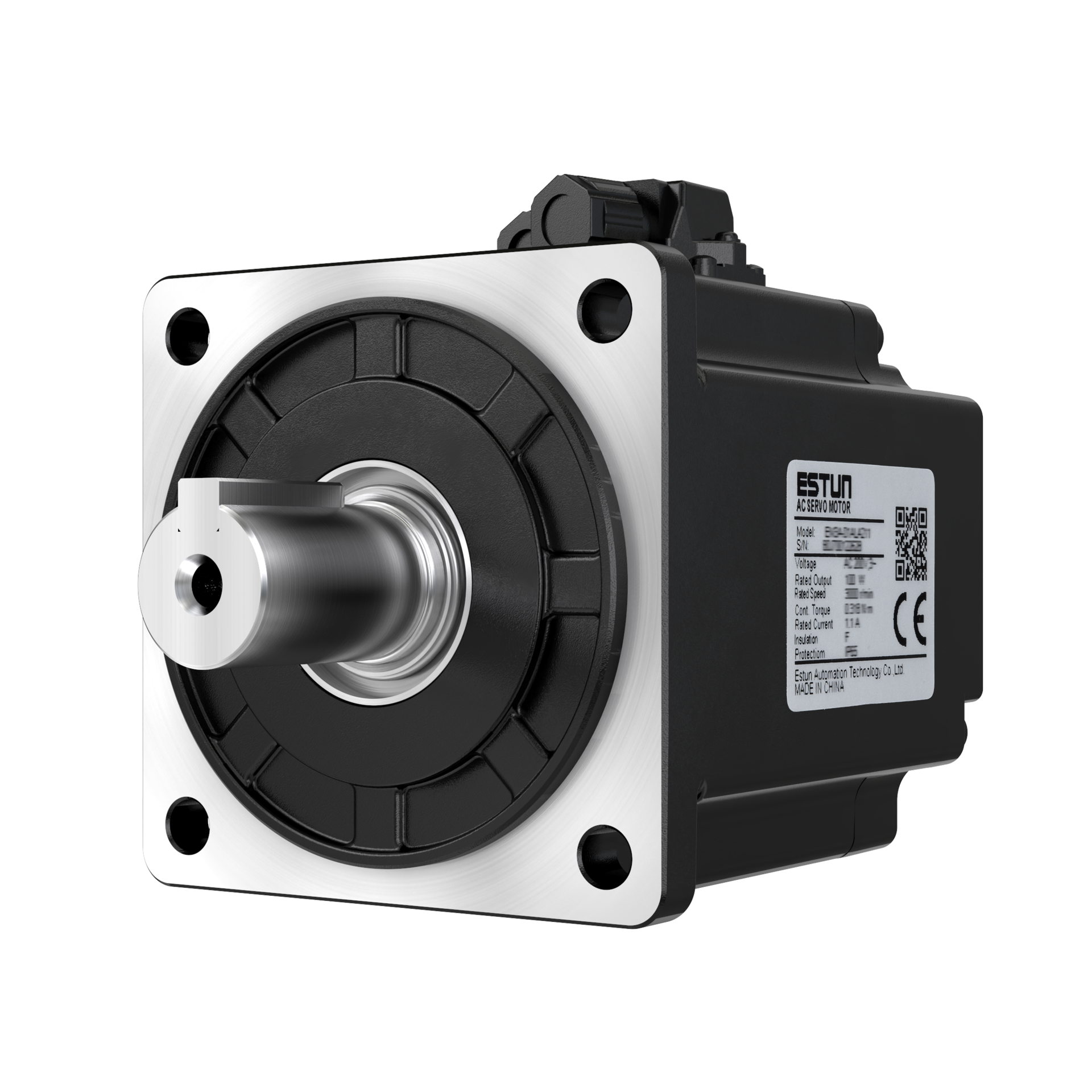

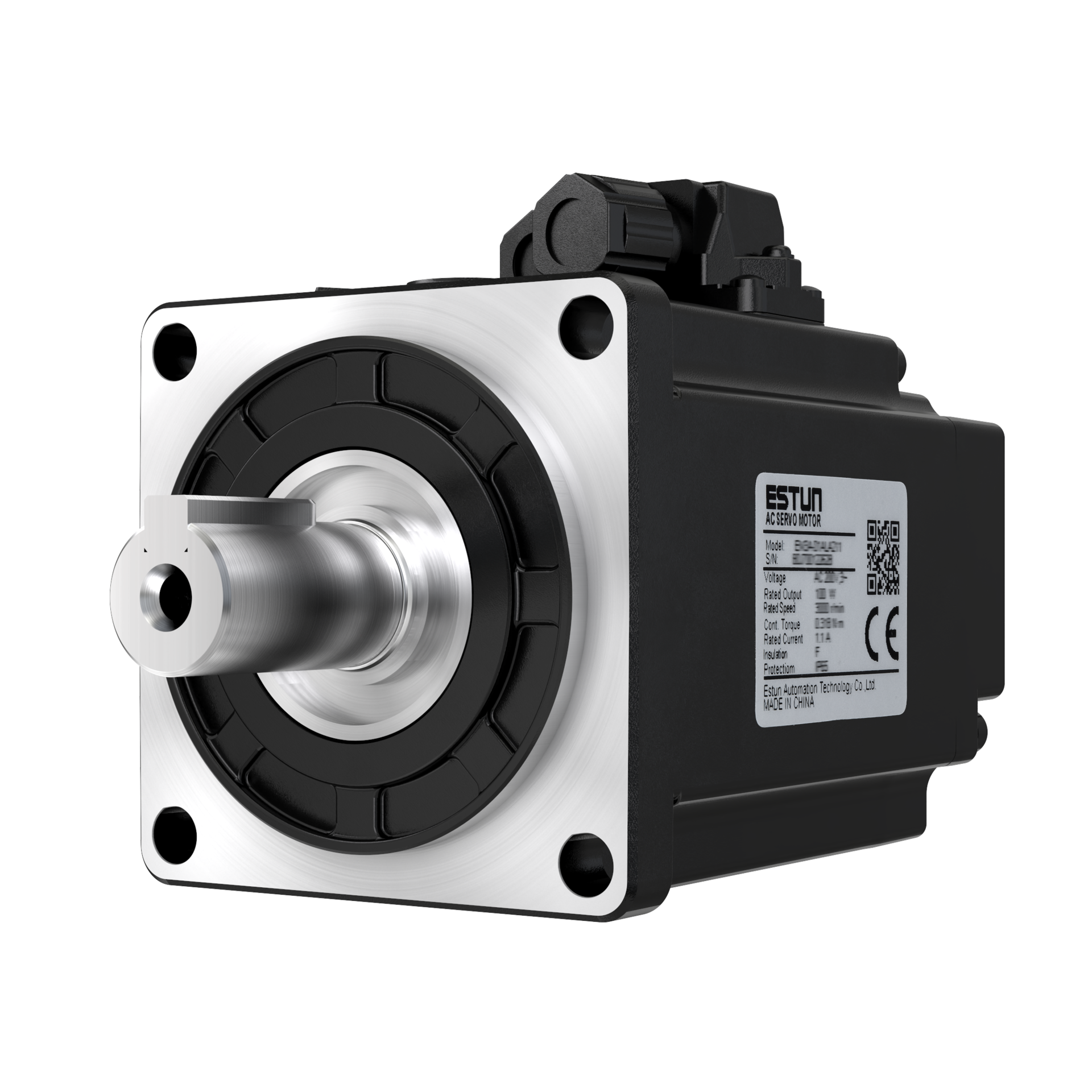

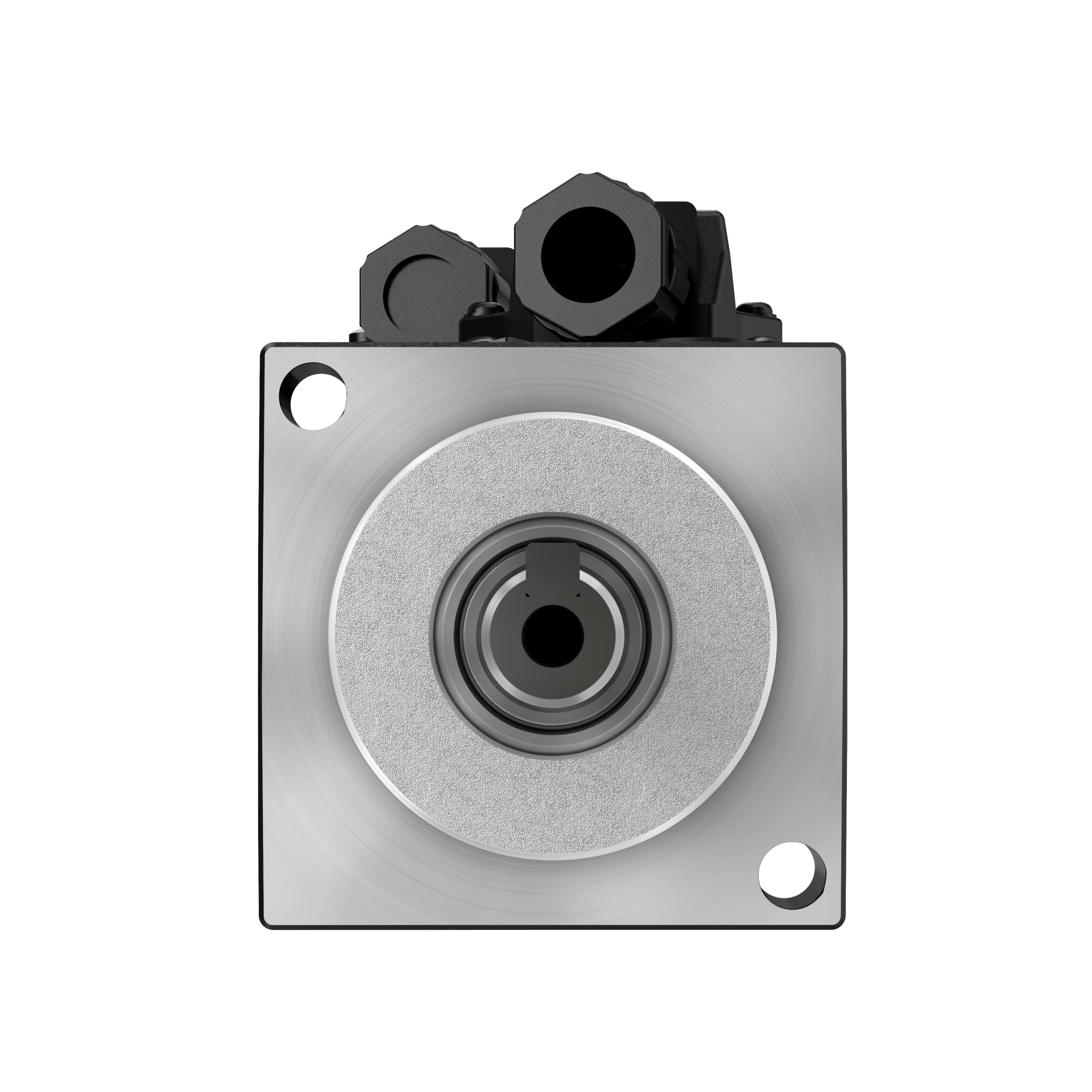

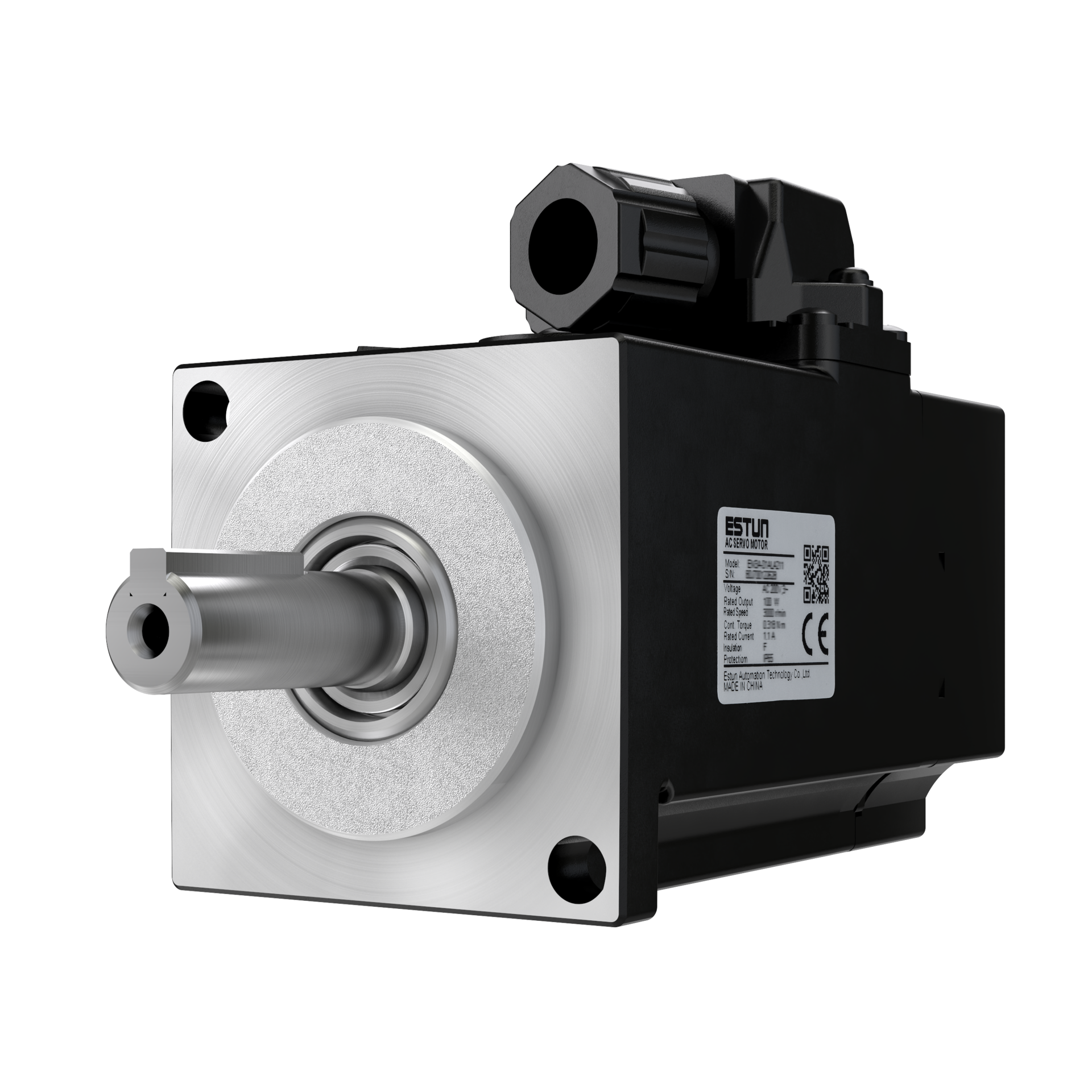

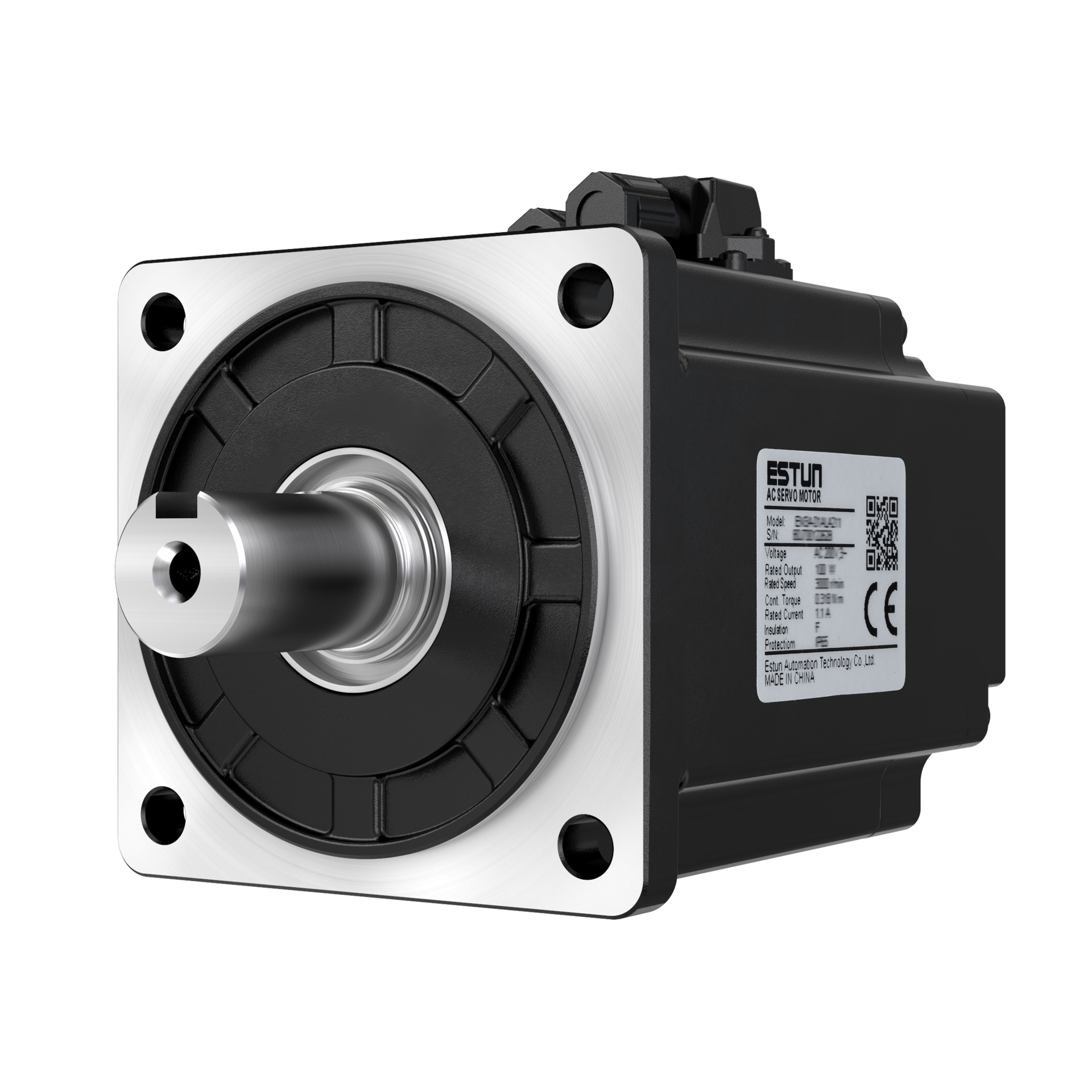

EM5J Series Medium-Inertia Servo Motor

EM5J Series Medium-Inertia Servo Motors, with power coverage from 100 W to 1.0 kW, a rated speed of up to 3000 rpm, a protection rating of up to IP67, and a full-metal housing for stronger interference resistance.

Compact Size, Superior Performance
The EM5 series motors have been fully upgraded, achieving the smallest size among comparable products in the industry; with overall optimization, they offer faster acceleration and superior performance.

High Protection
Protection rating IP67, with strong temperature resistance, capable of operating normally in harsh environments and adapting to more demanding humid, dusty, and complex industrial environments.

Strong Overload Capability
Faced with complex operating conditions, it can still operate stably under high-load conditions, continuously delivering strong power to ensure uninterrupted production processes and maintain efficient operation.

3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy

Voltage Level		200VAC
EM5J-		01AT	01AL	02AT	02AL	04AT	04AL	08AT	08AL	10AT	10AL
Flange [mm]		40		60		60		80		80
Rated Power [kW]		0.1		0.2		0.4		0.75		1.0
Rated Speed [r/min]		3000		3000		3000		3000		3000
Maximum Speed [r/min]		6000		6000	7000	6000		6000		6000
Rated Torque [N·m]		0.318		0.637		1.27		2.39		3.18
Maximum Torque [N·m]		0.954	1.11	1.91	2.23	3.82	4.46	7.17	8.37	9.54
Rated Current [Arms]		0.8		1.3		2.6		4.3		5.7
Maximum Current [Arms]		2.6	3.0	4.5	5.5	8.8	10.6	14.0	16.7	19.2
Rotor Inertia [10⁻⁴ kg·m²]		0.07(0.08)		0.25(0.26)		0.48(0.49)		1.55(1.59)		2.09(2.15)
Allowable Load at Shaft End	Radial [N]	78		245		245		392		392
	Axial [N]	54		74		74		147		147
Brake Specifications	Rated Voltage	24VDC		24VDC		24VDC		24VDC		24VDC
	Holding Torque [N·m]	≥0.32		≥1.5		≥1.5		≥3.2		≥3.2
Weight [kg]		0.38(0.55)		0.8(1.1)		1.3(1.6)		2.2(2.8)		2.7(3.2)

Note: Values in parentheses indicate those of motors with a brake.
