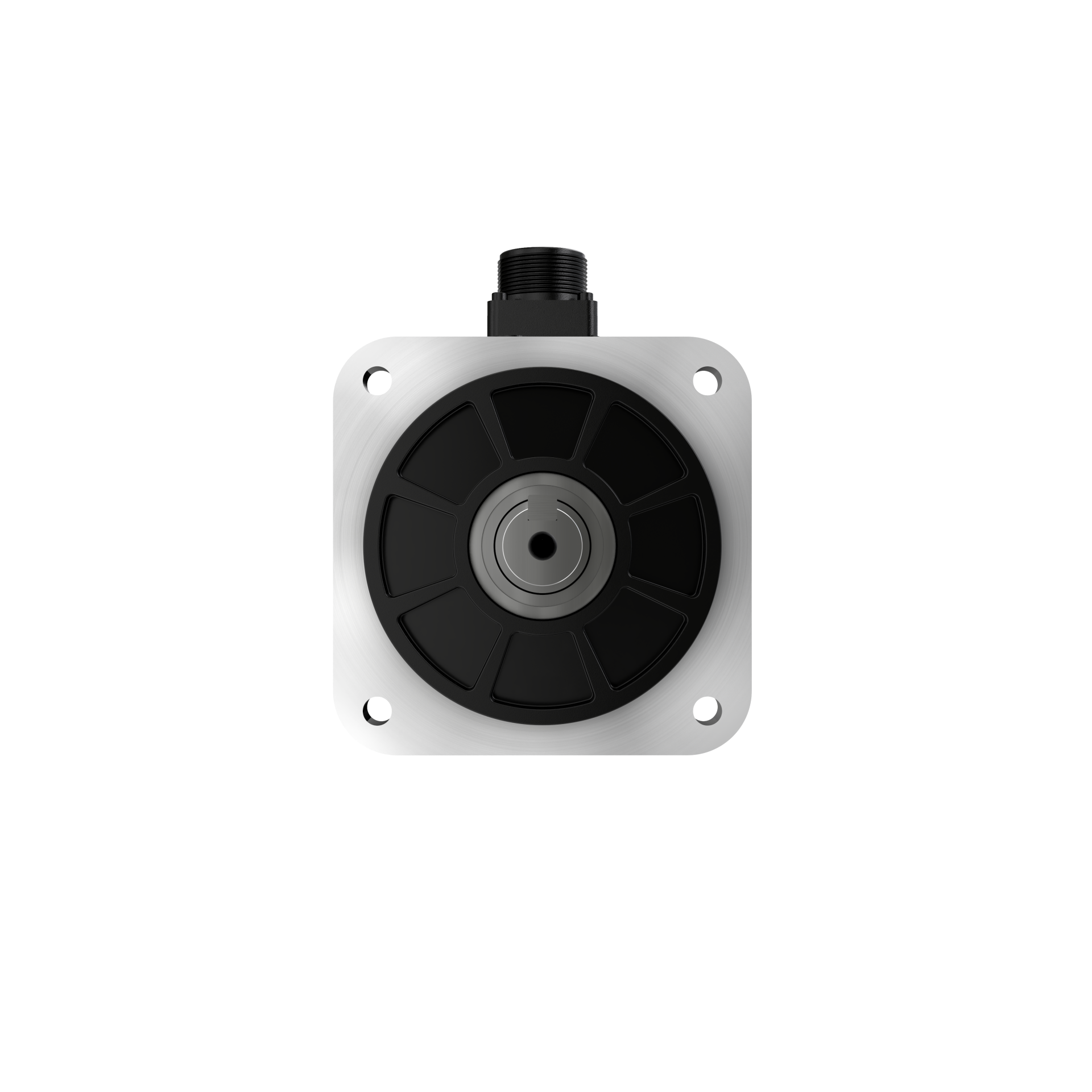

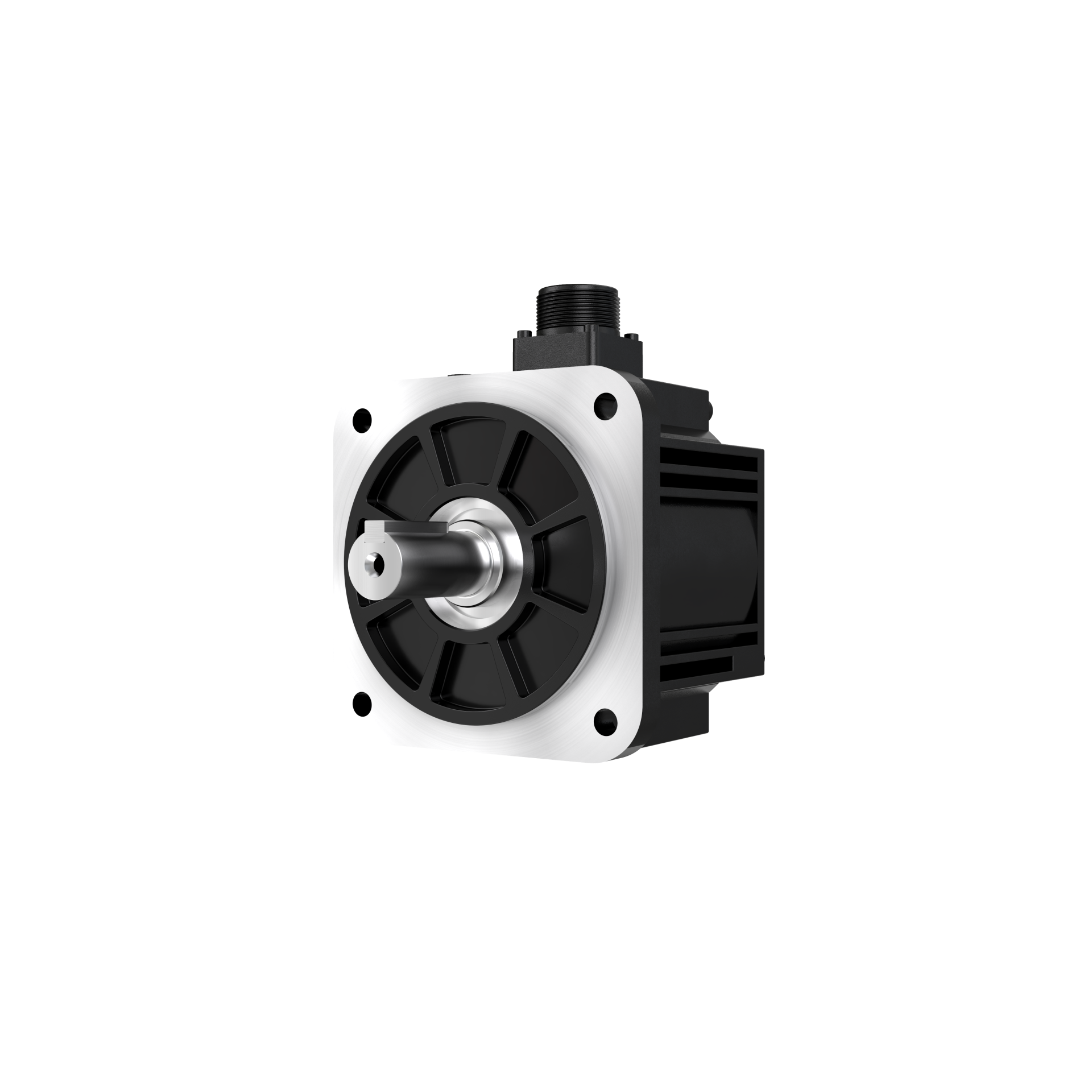

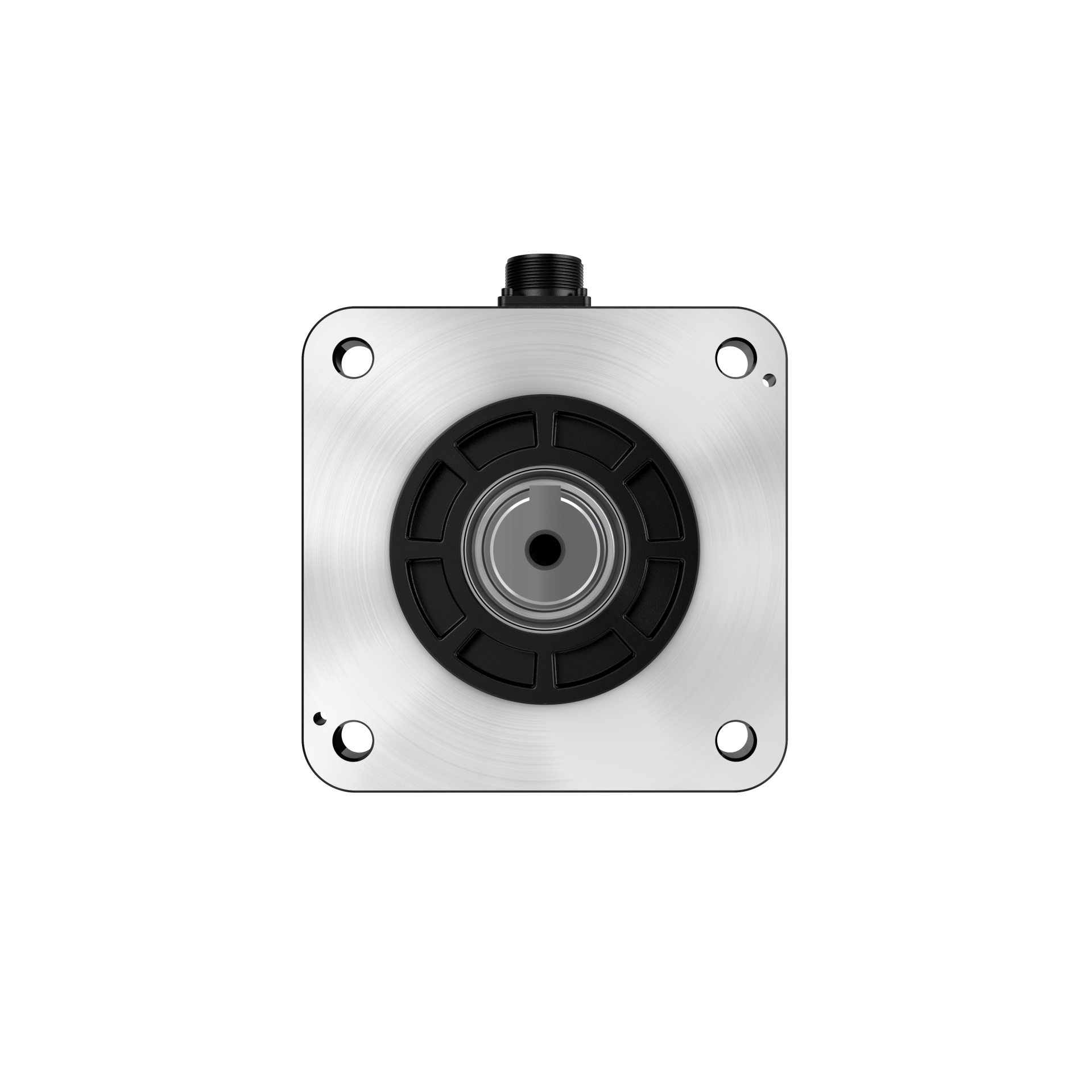

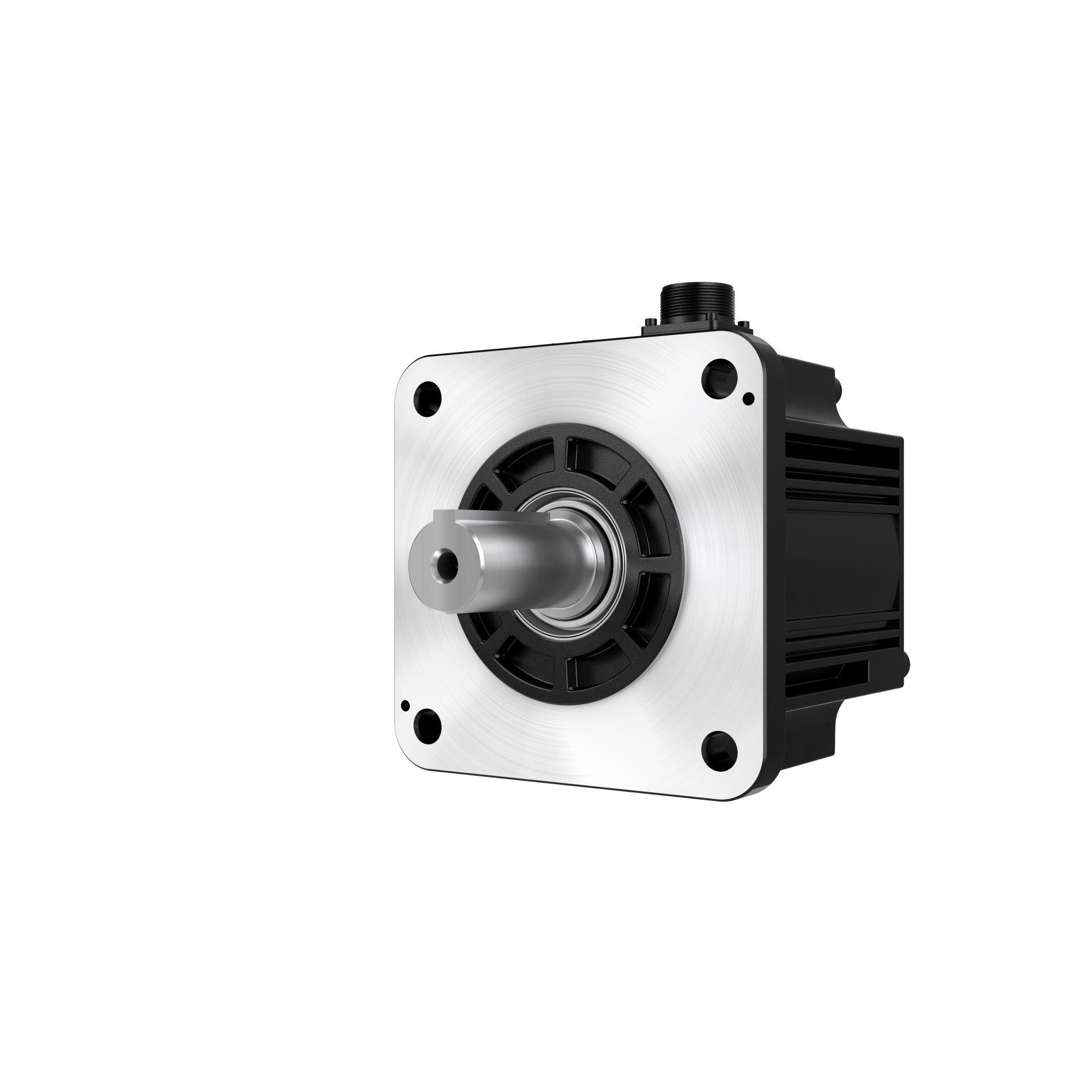

EM5D Series Medium-Inertia Servo Motor
EM5D Series Medium-Inertia Servo Motors, with power coverage from 1.0 kW to 7.5 kW, a rated speed of 2000 rpm, and a protection rating of up to IP67.
Compact Size, Superior Performance
The EM5 series motors have been fully upgraded, achieving the smallest size among comparable products in the industry; with overall optimization, they offer faster acceleration and superior performance.
High Protection
Protection rating IP67, with strong temperature resistance, capable of operating normally in harsh environments and adapting to more demanding humid, dusty, and complex industrial environments.
Strong Overload Capability
Faced with complex operating conditions, it can still operate stably under high-load conditions, continuously delivering strong power to ensure uninterrupted production processes and maintain efficient operation.
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
|
Detailed Parameters | |||||||||||
|
Voltage Level |
200VAC | ||||||||||
|
EM5D- |
10A |
15A |
20A |
10D |
15D |
20D |
30D |
50D |
60D |
75D | |
|
Flange [mm] |
130 |
130 |
130 |
130 |
130 |
130 |
180 |
180 |
180 |
180 | |
|
Rated Power [kW] |
1.0 |
1.5 |
2.0 |
1.0 |
1.5 |
2.0 |
3.0 |
5.0 |
6.0 |
7.5 | |
|
Rated Speed [r/min] |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 | |
|
Maximum Speed [r/min] |
4500* |
4500* |
4500* |
4500* |
4500* |
4500* |
4500* |
4500* |
4500* |
4500* | |
|
Rated Torque [N·m] |
4.78 |
7.17 |
9.55 |
4.78 |
7.17 |
9.55 |
14.3 |
23.9 |
28.7 |
35.8 | |
|
Maximum Torque [N·m] |
13.5 |
20.7 |
28.7 |
13.5 |
20.7 |
28.7 |
46.5 |
71.0 |
87.5 |
119.0 | |
|
Rated Current [Arms] |
6.2 |
8.7 |
11 |
3.1 |
4.4 |
5.5 |
8.7 |
13.1 |
15.9 |
17.5 | |
|
Maximum Current [Arms] |
20.0 |
30.0 |
42.0 |
12.0 |
17.6 |
24.0 |
36.0 |
43.3 |
52.2 |
60.9 | |
|
Rotor Inertia [10⁻⁴ kg·m²] |
13.5(14.97) |
9.03(20.52 |
24.78(26.25 |
13.5(14.97) |
19.03(20.52 |
4.78(26.25 |
44.2(50.7) |
64.9(71.5) |
88.9(95.3) |
131.3(137.0) | |
|
Allowable Load at Shaft End |
Radial [N] |
490 |
686 |
980 |
490 |
686 |
980 |
1470 |
1470 |
1764 |
1764 |
|
Axial [N] |
98 |
343 |
392 |
98 |
343 |
392 |
490 |
490 |
588 |
588 | |
|
Brake Specifications |
Rated Voltage |
24VDC |
24VDC |
24VDC |
24VDC |
24VDC |
24VDC |
24VDC |
24VDC |
24VDC |
24VDC |
|
Rated Power [W] |
23 |
31 |
36 | ||||||||
|
Holding Torque [N·m] |
≥20 |
≥20 |
≥20 |
≥20 |
≥20 |
≥20 |
≥20 |
≥20 |
≥20 |
≥20 | |
|
Weight [kg] |
5.3(6.7) |
6.5(7.9) |
7.8(9.2) |
5.3(6.7) |
6.5(7.9) |
7.8(9.2) |
13.3(17.5) |
17(21.2) |
22.2(27) |
29.6(34.4) | |
Note: Values in parentheses indicate those of motors with a brake.
The maximum speed of motors with a 17-bit absolute encoder is 3000 r/min, and the maximum speed of motors with a 23-bit absolute encoder is 4500 r/min.
