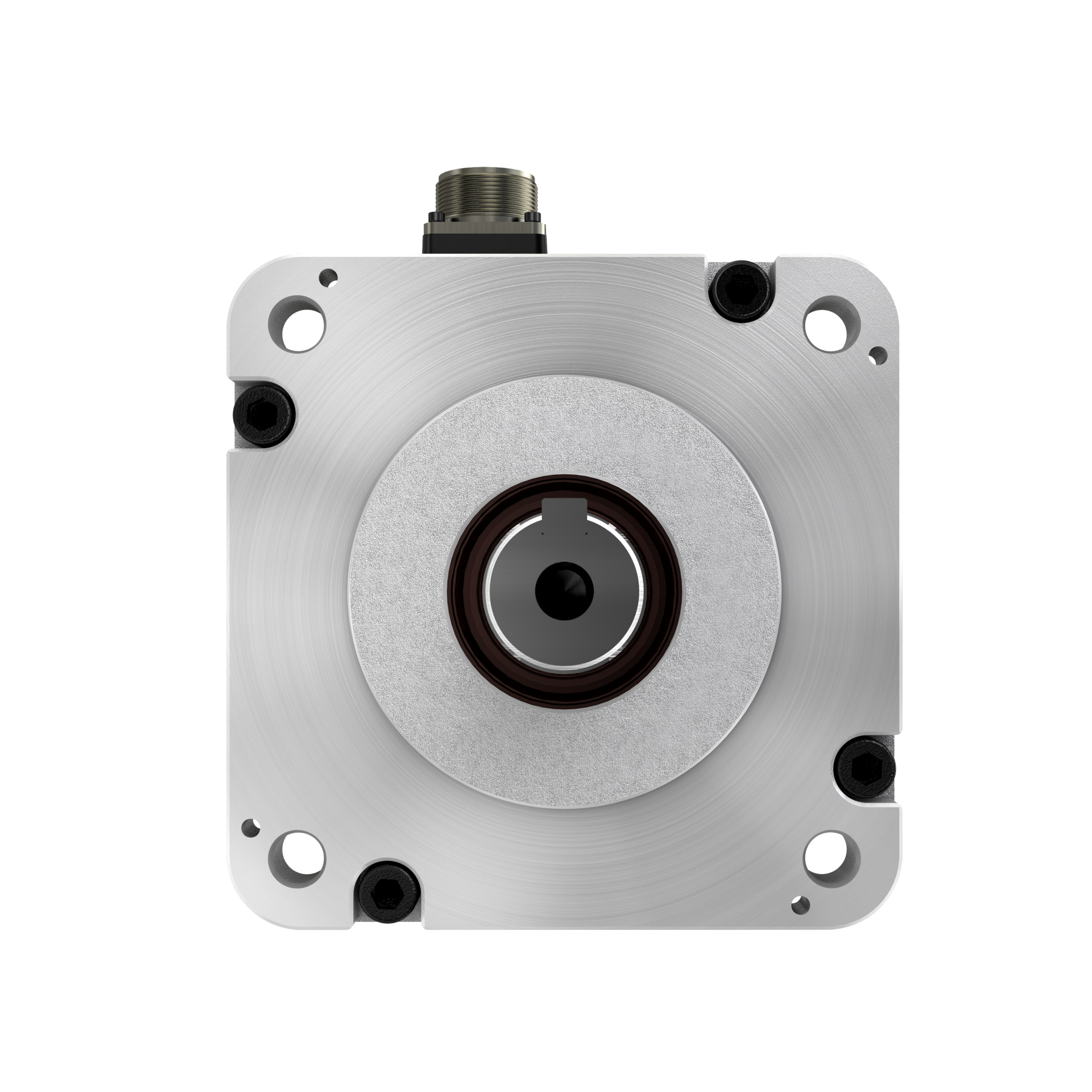

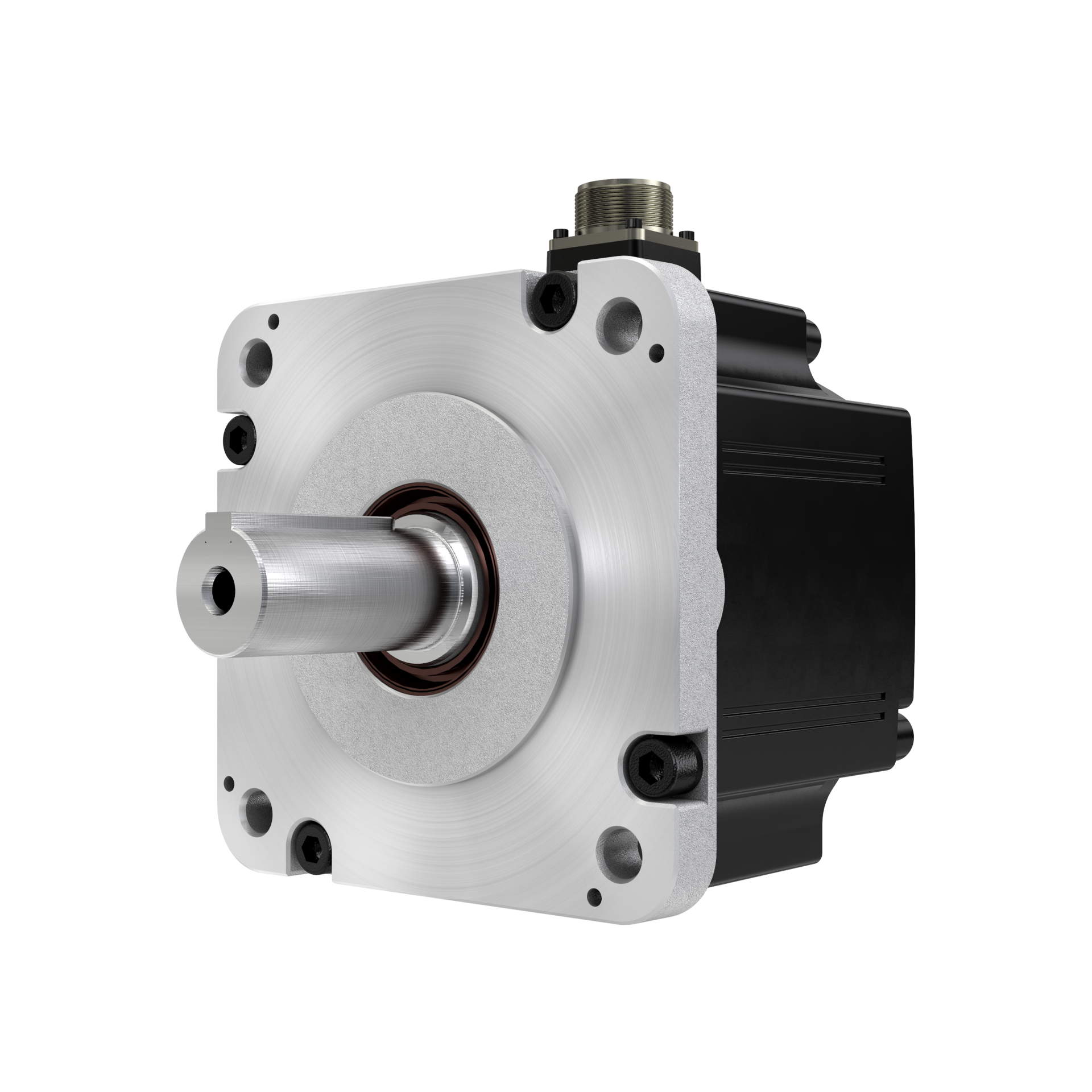

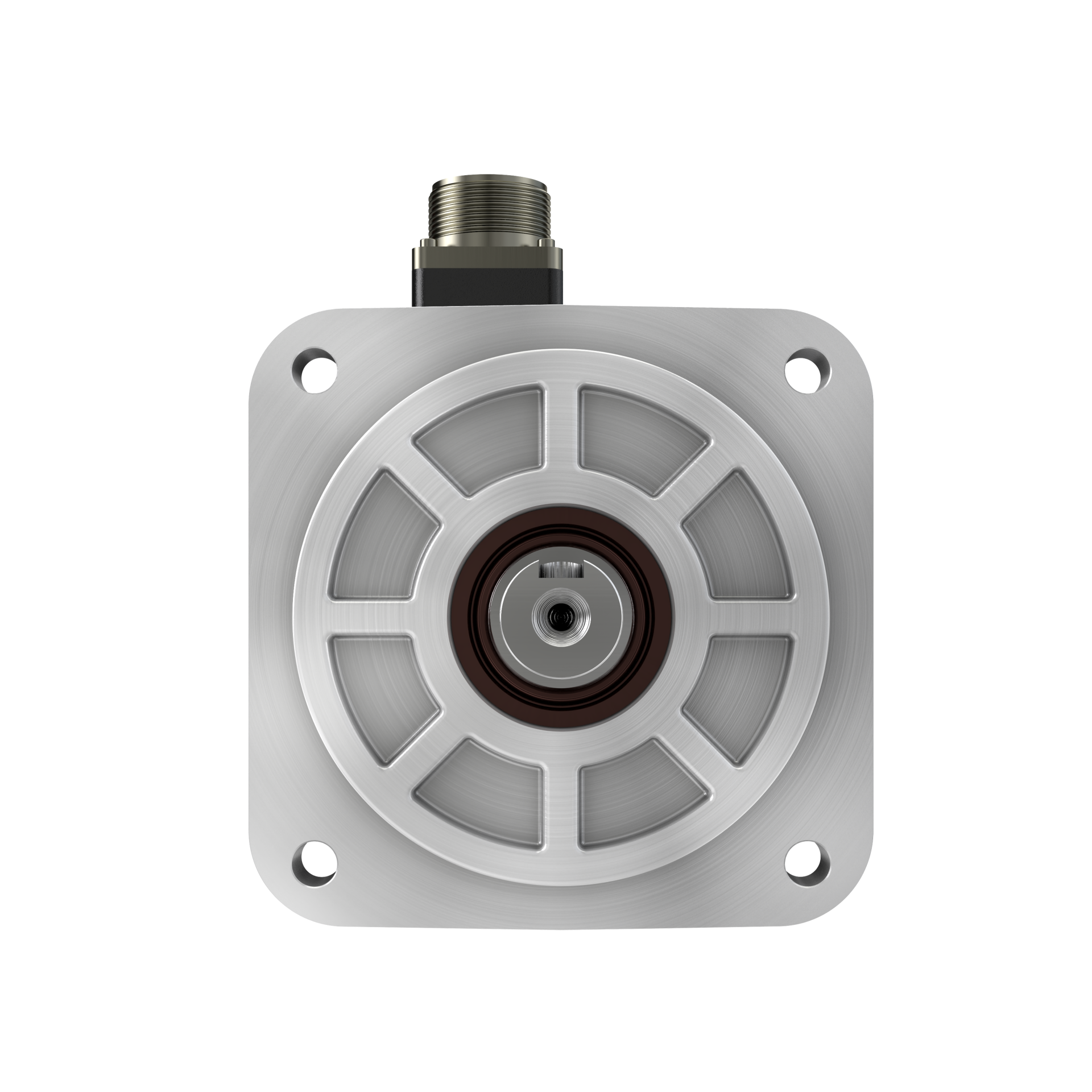

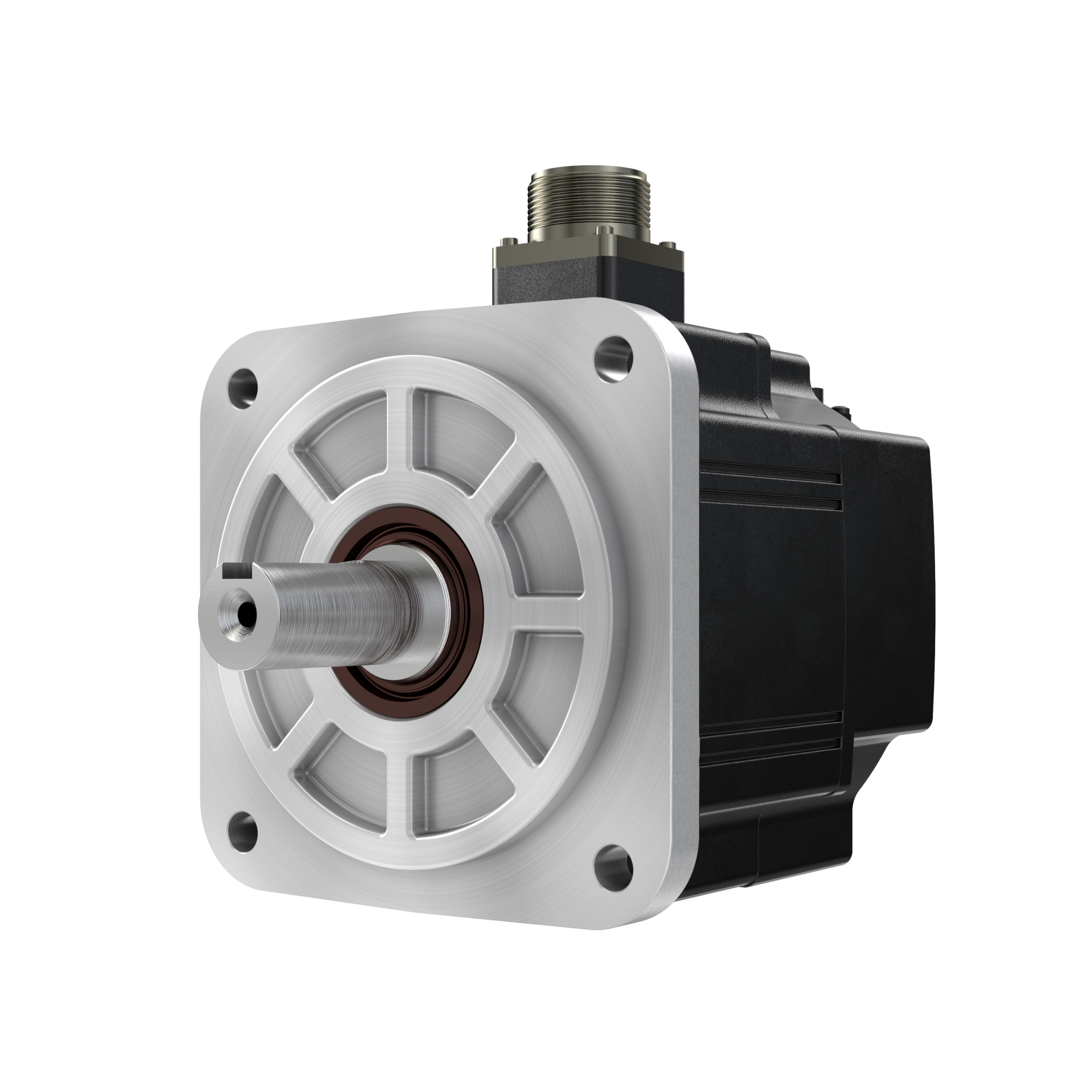

EM3G Series Medium-Inertia Servo Motor
EM3G Series Medium-Inertia Servo Motors, with power coverage from 850 W to 1.8 kW, a rated speed of 1500 rpm, a protection rating of up to IP65, and support for certification requirements such as CE and UL.
Low Temperature Rise Operation
Adopts advanced heat dissipation technology and design, generating less heat during operation, effectively controlling temperature rise, avoiding performance degradation caused by overheating, extending motor service life, and ensuring operational stability.
Comprehensive Certifications
Supports certification requirements such as CE and UL, meeting the stringent electrical safety and electromagnetic compatibility requirements of global markets, facilitating barrier-free export and widespread application of equipment.
Flexible Configuration
Optional configurations are available according to customer requirements, including flat key, threaded shaft end, with or without brake, connector type, etc.
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
| Voltage Level | 200VAC | 400VAD | ||||||||
| EM3G- | 09A | 13A | 18A | 09D | 13D | 18D | 29D | 44D | 55D | 75D |
| Flange [mm] | 130 | 130 | 130 | 130 | 130 | 130 | 180 | 180 | 180 | 180 |
| Rated Power [kW] | 0.85 | 1.3 | 1.8 | 0.85 | 1.3 | 1.8 | 2.9 | 4.4 | 5.5 | 7.5 |
| Rated Speed [r/min] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Speed [r/min] | 4500* | 4500* | 4500* | 4500* | 4500* | 4500* | 4500* | 4500* | 4500* | 4500* |
| Rated Torque [N·m] | 5.41 | 8.28 | 11.5 | 5.41 | 8.28 | 11.5 | 18.6 | 28.4 | 35.0 | 48.0 |
| Maximum Torque [N·m] | 16.2 | 24.8 | 31.0 | 16.2 | 24.8 | 31.0 | 55.8 | 80.0 | 105 | 120 |
| Rated Current [Arms] | 6.8 | 9.7 | 14.5 | 3.4 | 5.0 | 7.1 | 11.5 | 16.8 | 20.3 | 26.5 |
| Maximum Current [Arms] | 22.6 | 29.7 | 42.0 | 10.9 | 15.6 | 21.2 | 37.0 | 49.5 | 64.0 | 70.0 |
| Rotor Inertia [10⁻⁴ kg·m²] | 11.9(12.5) | 17.3(17.9) | 22.3(22.9) | 11.9(12.5) | 17.3(17.9) | 22.3(22.9) | 43.4(49.2) | 58.8(64.6) | 85.5(91.5) | 116.8(123.0) |
| Allowable Load at Shaft End | Radial [N] | 490 | 686 | 980 | 490 | 686 | 980 | 1470 | 1470 | 1764 |
| Axial [N] | 98 | 343 | 392 | 98 | 343 | 392 | 490 | 588 | 588 | |
| Brake Specifications | Rated Voltage | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC |
| Holding Torque [N·m] | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥44 | ≥44 | ≥72 | |
| Weight [kg] | 5.6(7.3) | 7.0(8.7) | 8.3(10.0) | 5.6(7.3) | 7.0(8.7) | 8.3(10.0) | 14.6(18.8) | 17.6(21.8) | 23.2(27.8) | 29.0(33.6) |
Note: Values in parentheses indicate those of motors with a brake.
The maximum speed of motors with a 17-bit absolute encoder is 3000, and the maximum speed of motors with a 23-bit absolute encoder is 4500.
