FlexSlice I/O Module Series
The P366 bus coupler supports up to 16 input/output modules. These modules all feature flexible mechanical locks and bus interfaces, and can be connected to EBUS via the backplane. The P366 is DIN-rail mounted. It converts messages from Ethernet 100BASE-T into EBUS signal format. In an EtherCAT network, the P366 coupler can be installed at any position on the Ethernet, making it suitable for operation near the master station or at remote locations.
-
Module Types
Supports digital and analog modules;
Easy Networking
Can be locally expanded behind Flex series controllers and can also be remotely expanded via a coupler;
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
|
Attribute |
Details |
|
Module Name |
Flexslice Module |
|
Connector |
Plug-In Type |
|
Cable Length (Maximum) |
30m |
|
Dimensions (mm) |
15wx147hx107d |
|
Dimensions (P366) |
17.2wx147hx107d |
|
Weight |
145g |
|
EtherCAT Cycle |
≥125us |
|
Isolation |
1KV |
|
Certification |
RoHS and CE |
|
Attribute |
Detailed Information |
|
Name |
P366: EtherCAT Coupler |
|
Description |
The P366 FlexSlice EtherCAT coupler can connect EtherCAT modules to an EtherCAT network. A station consists of one P366 coupler and up to 16 FlexSlice EtherCAT modules. The coupler converts transmitted messages from Ethernet 100BASE-T into EBUS signal format. |
|
Power Supply |
24V DC, 0.8A min for full system |
|
EtherCAT Connection |
RJ45 |
|
Protocol |
EtherCAT |
|
Transfer Rate |
100Mbit/s |
|
Dimensions (mm) |
17.2wx147hx107d |
|
Weight |
160g |
|
Maximum Load |
16 |
|
Network Cable |
CAT5e min |
|
Attribute |
Detailed Description |
|
Name |
P362: Flexslice Power Connect |
|
Function Description |
Provides a connection solution for the power and return lines of 3-wire sensors. The pins of two single-row plug-in terminal blocks are connected together to form two independent common connections. When 0 V is connected to the lower connector and 24 V is connected to the upper connector, the LED indicator plate shows that the power is on. |
|
Module Current Consumption (EBUS 5V) |
0mA |
|
Power Supply |
24V (+/-20%) DC |
|
Maximum Connector Current |
4A |
|
Load |
0 |
|
Attribute |
Detailed Description |
|
Name |
P367: FlexSlice Thermocouple Module |
|
Description |
The FlexSlice thermocouple module has 4 thermocouple inputs, each with 16-bit resolution. The 4 thermocouple inputs are connected to a single-row plug-in terminal block. A second single-row plug-in terminal block has 4 relay outputs for controlling heaters or other switched loads. |
|
Power Supply |
via the EBUS |
|
Module Current Consumption (EBUS 5V) |
Max. 160 mA |
|
Number of Inputs |
4 |
|
Thermocouple Type |
J、K、T、E |
|
Resolution |
16-bit |
|
Number of Relay Outputs |
4 |
|
Output Type |
Normally Open (NO) Solid-State Relay |
|
Load Type |
Resistive, Inductive, and Capacitive |
|
Maximum Output Voltage |
24V |
|
Maximum Output Current |
100mA |
|
Single Load |
1.25 |
|
Attribute |
Detailed Description |
|
Name |
P368: FlexSlice RTD Module |
|
Description |
The P368 FlexSlice RTD module has 4 Resistance Temperature Detector (RTD) inputs, each with 16-bit resolution. The 4 RTD inputs are connected to a single-row plug-in terminal block. A second single-row plug-in terminal block has 4 relay outputs for controlling heaters or other switched loads. |
|
Power Supply |
via the EBUS |
|
Module Current Consumption (EBUS 5V) |
Max. 160 mA |
|
Input Quantity |
4 (or 2 with 4-wire RTD) |
|
RTD Type |
PT100 2,3 or 4 wire |
|
Resolution |
16bit |
|
Number of Relay Outputs |
4 |
|
Output Type |
Normally Open (NO) Solid-State Relay |
|
Load Type |
Resistive, Inductive, and Capacitive |
|
Maximum Output Voltage |
24V |
|
Maximum Output Current |
100mA |
|
Single Load |
1.25 |
|
Attribute |
Detailed Description |
|
Name |
P371: 16-Channel PNP Output |
|
Description |
P371 digital output FlexSlice connects binary control signals from the motion controller to 24 VDC machine output devices. All 16 outputs are current-sourcing (PNP) types and are electrically isolated. Output and power connections are made via 2 single-row plug-in terminal blocks. The FlexSlice module indicates output signal status via LEDs. |
|
Module Current Consumption (EBUS 5V) |
110mA max |
|
Number of Digital Outputs |
16 (2 rows, 8 per row) 4 (or 2 with 4-wire RTD) |
|
Power Supply |
24V(+/-20%)D |
|
Load Type |
Resistive, Inductive, and Capacitive |
|
"ON" Time |
110u5(10% to 90%) |
|
"OFF" Time |
210u5(90% to 10%) |
|
Maximum Output Current |
0.5 A per channel |
|
Maximum Output Current | 4 A per group of 8 channels |
|
Short-Circuit Protection |
3 A per output typical |
|
Overvoltage Protection |
YES |
|
Reverse Voltage Protection |
YES |
|
Single Load |
1 |
|
Attribute |
Detailed Description |
| Name |
P372: 16-Channel PNP Input |
|
Description |
P372 digital input FlexSlice connects 24 VDC signals from machine devices to binary control registers in the motion controller. All 16 inputs are current-sinking (PNP) types and are electrically isolated. Input and power connections are made via 2 single-row plug-in terminal blocks. The FlexSlice module indicates input signal status via LEDs. |
|
Module Current Consumption (EBUS 5V) |
Max. 100 mA |
|
Number of Digital Outputs |
16 (2 rows, 8 per row) |
|
Power Supply |
24V(+/-20%)D |
|
"ON" Voltage Threshold |
11.2V typ |
|
"OFF" Voltage Threshold |
10.2V typ |
|
Input Current |
3.5mA typ |
|
Input Filter Cut-Off (RC Network) |
18KH |
|
Single Load |
1 |
|
Attribute |
Detailed Description |
|
Name |
P374: FlexSlice 2-Channel Analog Axis Module |
|
Description |
The P374 FlexSlice analog 2-axis servo module allows up to 2 servo motors, stepper motors, or encoders to be connected to the control system and supports incremental encoder inputs. If configured as step/pulse outputs, the axes can be pulse + direction or quadrature analog encoder outputs. Two 20-way MDR connectors provide reliable shielded connections for high-speed signals. Each MDR connector supports all signals for full closed-loop control of a servo axis. |
|
Module Current Consumption (EBUS 5V) |
Max. 100 mA |
|
Maximum Number of Axes | 2 (Software Configurable) |
|
Maximum Encoder Rate |
8 M edges/s, encoder counting |
|
Maximum Stepping Rate |
8 MHz Pulse Counting |
|
Step/Pulse Width |
Pulse Control or Square Wave |
|
Encoder/Stepping Input/Output |
RS422 |
|
DAC Voltage Output |
2x12bit+/-10V，@ 5mA |
|
Position Capture Trigger Signal |
4 x 24 V Isolated, PNP Input |
|
WDOG Output |
2 x Normally Open (NO), Solid-State Relay |
|
WDOG Maximum Output Voltage |
24V |
|
WDOG Maximum Output Current |
100mA |
|
Field Programmable |
YES |
|
Power Supply |
24V(+/-20%)DC，@100mA |
|
Single Load |
2.5 |
|
Attribute |
Detailed Description |
|
Name |
P375: Flex 3-Axis Module |
|
Description |
The P375 Flex 3-axis module allows up to 3 stepper motors or encoders to be connected to the control system. It supports incremental encoders. If configured as step/pulse outputs, the axes can be pulse + direction or quadrature analog encoder outputs. A single MDR connector provides a reliable shielded 26-way connection for high-speed signals. The P375 is compatible with most high-resolution microstepping drives. |
|
Maximum Stepping Rate |
8 MHz Pulse Counting |
|
Step/Pulse Width |
Pulse Control or Square Wave |
|
Maximum Enc Rate |
8 M edges/s encoder counting |
|
Module Current Consumption (EBUS 5V) |
150mA max |
|
Field Programmable |
YES |
|
Step/Enc Port |
MDR Connector |
|
Maximum Number of Axes |
3 (Software Configurable) |
|
WDOG Output Trigger Signal |
YES |
|
Registration |
1 per axis |
|
Single Load |
2 |
|
Attribute |
Detailed Description |
|
Name | P376: 16-Channel NPN Output |
|
Description |
The P376 digital output FlexSlice connects binary control signals from the motion controller to machine output devices such as relays, contactors, valves, lamps, etc., with a device voltage of 24 VDC. All 16 outputs are current-sinking (NPN) types and are electrically isolated. Output and power connections are made via 2 single-row plug-in terminal blocks. The FlexSlice module indicates output signal status via LEDs. |
|
Module Current Consumption (EBUS 5V) |
Max. 110 mA |
|
Number of Digital Outputs |
16 (2 rows, 8 per row) |
|
Power Supply |
24V(+/-20%)DC |
|
Load Type |
Resistive, Inductive, and Capacitive |
|
"ON" Time |
75us(90% to 10%) |
|
"OFF" Time |
105us(10% to 90%) |
|
Maximum Output Current |
0.5 A per channel |
|
Maximum Output Current |
4 A per group of 8 outputs |
|
Short-Circuit Protection |
3 A per output typical |
|
Overvoltage Protection |
YES |
|
Reverse Voltage Protection |
YES |
|
|
1 |
|
Attribute |
Detailed Description |
|
Name |
P377: 16-Channel NPN Input |
|
Description |
The P377 digital input FlexSlice connects 24 VDC signals from machine devices to binary control registers in the motion controller. All 16 inputs are current-sourcing (NPN) types and are electrically isolated. Input and power connections are made via 2 single-row plug-in terminal blocks. The FlexSlice module indicates input signal status via LEDs. |
|
Module Current Consumption (EBUS 5V) |
Max. 110 mA |
|
Number of Digital Outputs |
16 (2 rows, 8 per row) |
|
Power Supply |
24V(+/-20%)DC |
|
"ON" Voltage Threshold |
13.7V typ |
|
"OFF" Voltage Threshold |
14.6V typ |
|
Input Current |
3.5mA |
|
Input Filter Cut-Off (RC Network) |
18KHz |
|
Single Load |
1 |
|
Attribute |
Detailed Description |
|
Name |
P378: 8-Channel Analog Output |
|
Description |
The P378 FlexSlice 8-channel analog output module has eight output terminals with programmable voltage ranges, each with 12-bit resolution. The 8 single-ended outputs share a common 0 V potential and are connected to a single plug-in terminal block. |
|
Power Supply |
via EBUS |
|
Module Current Consumption (EBUS 5V) |
Max. 200 mA |
|
Signal Voltage |
-10…+10V:0…+10V |
|
Signal Current |
Max. +/-6 mA |
|
Resolution |
12 bit |
|
Output Impedance |
0.5ohm |
|
Number of Analog Outputs |
8 |
|
Single Load |
1 |
|
Attribute |
Detailed Description |
|
Name |
P379: 8-Channel Analog Input |
|
Description |
The P379 FlexSlice 8-channel analog input module has eight voltage ports with configurable voltage ranges, each with 12-bit resolution. These eight single-ended inputs share a common 0 V potential and are connected to a single-row plug-in terminal block. |
|
Power Supply |
via EBUS |
|
Module Current Consumption (EBUS 5V) |
160mA max |
|
Signal Voltage |
-10…+10V:0…+10V |
|
Resolution |
12 bit |
|
Overvoltage Protection |
±25V |
|
Number of Analog Outputs |
8 |
|
Single Load |
1.25 |
|
Attribute |
Detailed Description |
|
Name |

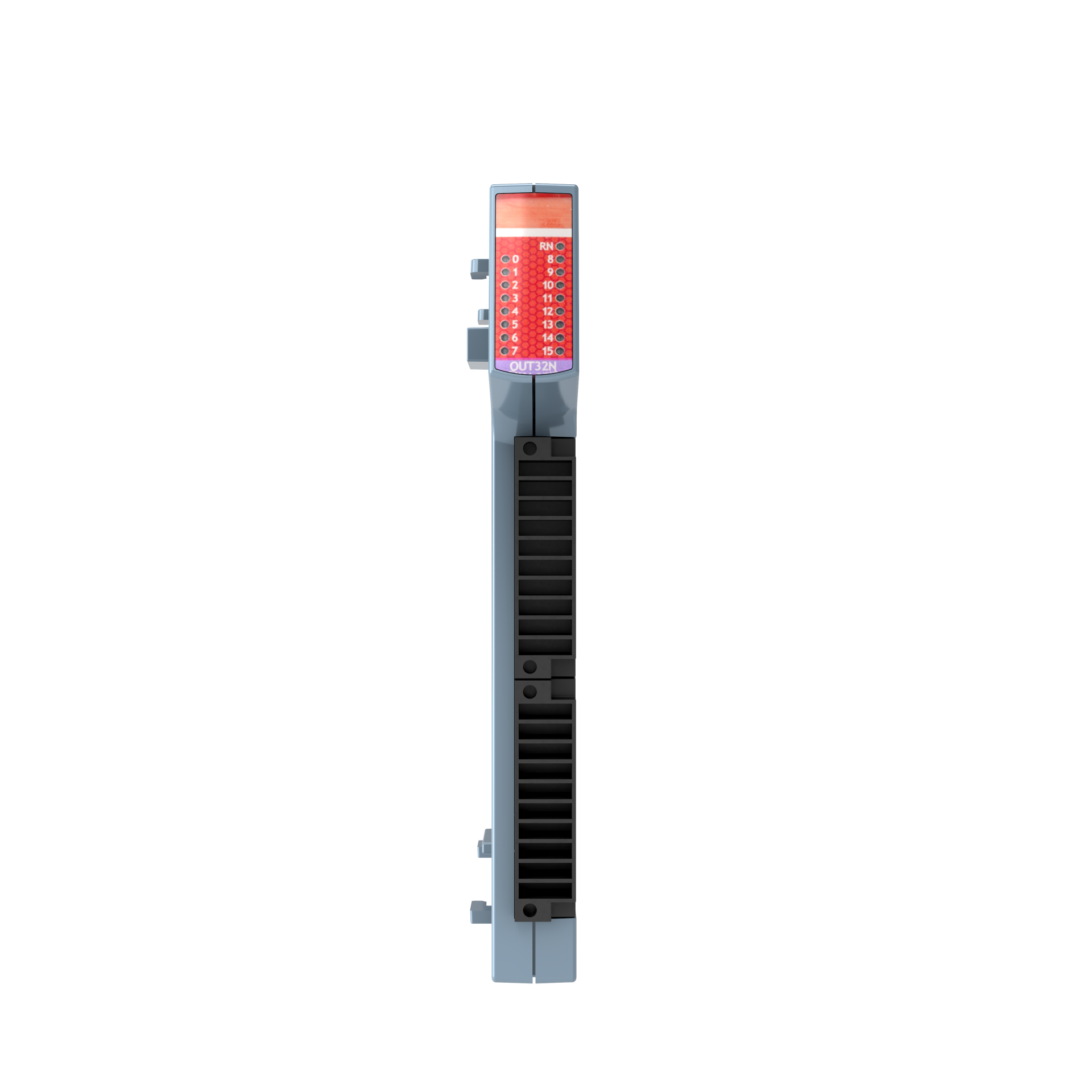

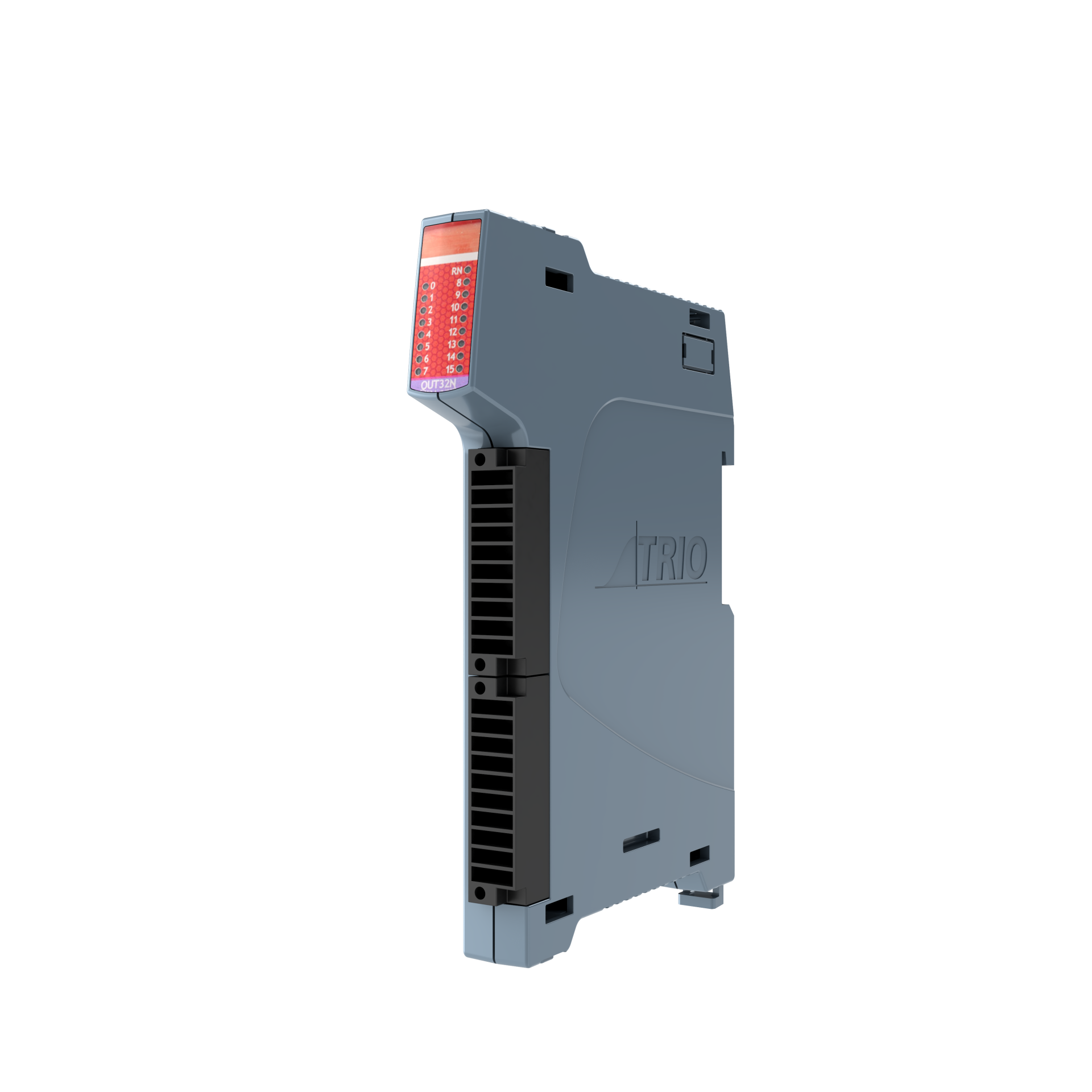

P386: 32-Channel NPN Output |
|
Description |
The P386 digital output slice connects binary control signals from the motion controller to machine input devices such as relays, contactors, valves, lamps, etc. The device voltage is 24 VDC. All 32 outputs are current-sinking (NPN) types and are electrically isolated. Output and power connections are made via double-row plug-in terminal blocks. The FlexSlice module indicates output signal status via LEDs. |
|
Module Current Consumption (EBUS 5V) |
Max. 160 mA |
|
Output Group 1 |
16 x NPN Output 3.5 mA 24 VDC |
|
Output Group 2 |
16 x NPN Output 3.5 mA 24 VDC |
|
Power Supply |
24V(+/-20%)DC |
|
Load Type |
Resistive, Inductive, and Capacitive |
|
"ON" Voltage |
13.7V ty |
|
"OFF" Voltage |
14.6V ty |
|
Input Current |
3.5mA typ |
|
Input Filter Cut-Off (RC Network) |
18KHz |
|
Single Load |
1 |
|
Attribute |
Detailed Description |
|
Name |
P387: 32-Channel NPN Input |
|
Description |
The P387 digital input slice connects 24 VDC signals from machine devices to binary control registers in the motion controller. All 32 inputs are current-sourcing (NPN) types and are electrically isolated. Input and power connections are made via double-row plug-in terminal blocks. The FlexSlice module indicates input signal status via LEDs (Light-Emitting Diodes). |
|
Module Current Consumption (EBUS 5V) |
Max. 160 mA |
|
Output Group 1 |
16 x NPN Output 3.5 mA 24 VDC |
|
Output Group 2 |
16 x NPN Output 3.5 mA 24 VDC |
|
Power Supply |
13.7V tyP 24V(+/-20%)DC |
|
Load Type |
Resistive, Inductive, and Capacitive |
|
"ON" Voltage |
13.7V ty |
|
"OFF" Voltage |
14.6V ty |
|
Input Current |
3.5mA typ |
|
Input Filter Cut-Off (RC Network) |
18KHz |
|
Single Load |
1 |
|
Attribute |
Detailed Description |
|
Name |
P359: 8-Channel Analog Current Input |
|
Description |
The P359 FlexSlice 8-channel analog current input module has eight input terminals, each with 12-bit resolution. These eight single-ended inputs share a common 0 V potential and are connected to a single-row plug-in terminal block. |
|
Power Supply |
Via EBUS |
|
Output Group 1 |
8 x NPN Output 3.5 mA 24 VDC |
|
Resolution |
12 |
|
Overvoltage Protection |
±25V |
|
Number of Analog Inputs |
8 4-20mA |
|
Single Load |
1 |
