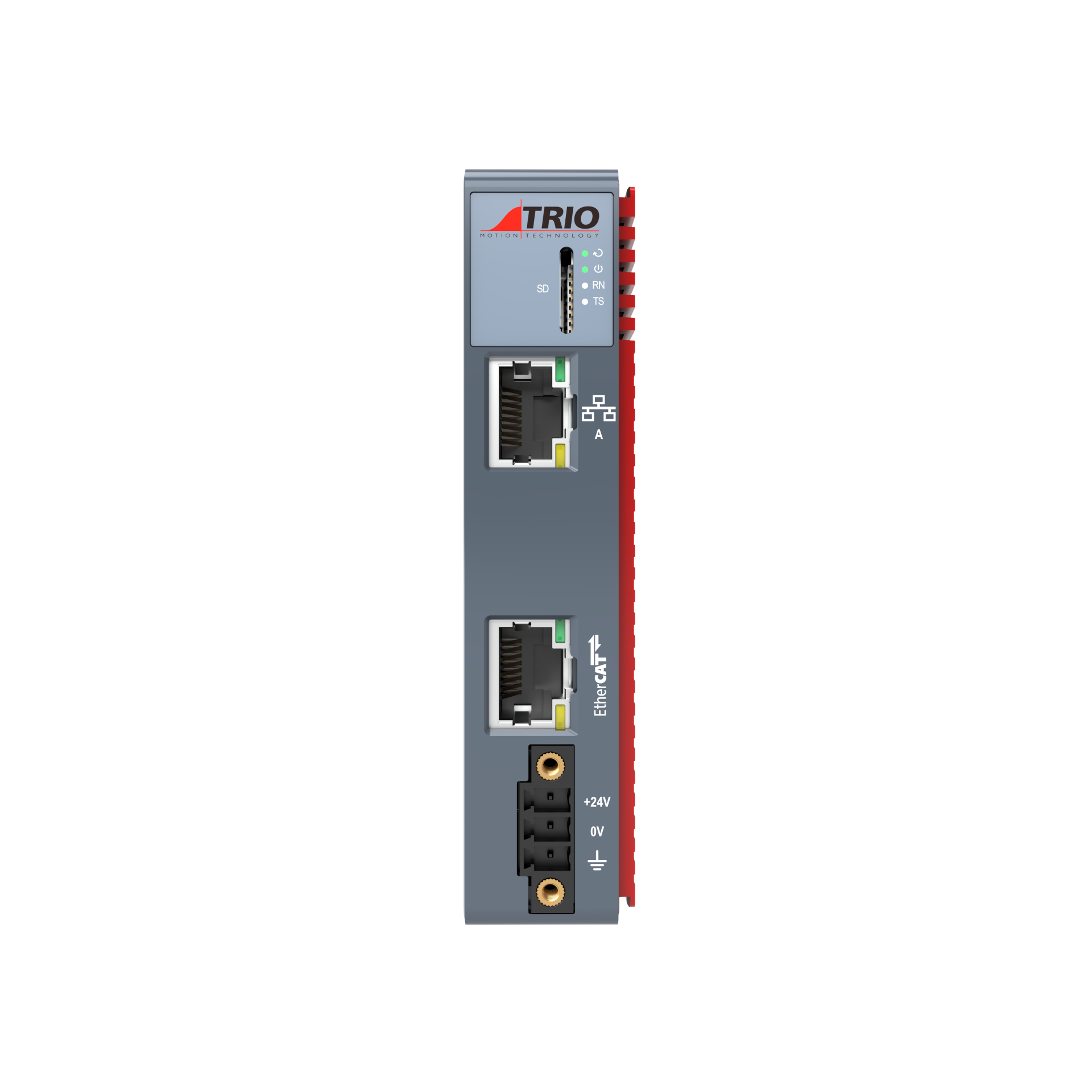

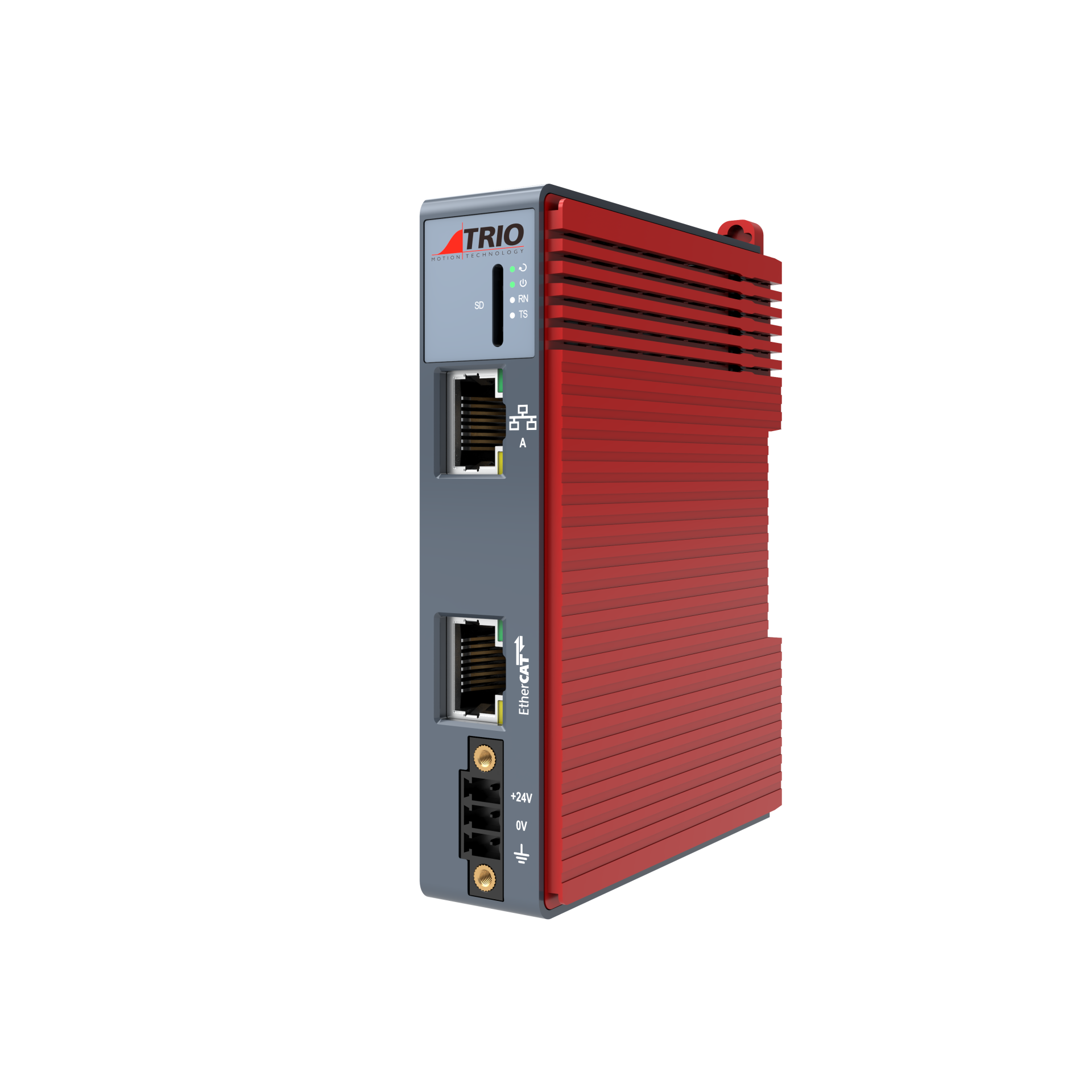

MCS40 Series
The MCS 40 and the more powerful MCS 50 are "flexible machine controllers," ideal for simple or advanced machines (MCS 50). They provide local I/O expansion through the slice interface and Trio's MS I/O system, and remote expansion via EtherCAT and Ethernet communication. Used for programming and factory communication, they offer a flexible solution for simple machines
Compact Size
Smallest 8-axis PLC (100 × 75 × 23)
High Performance
4-core processor for outstanding performance, 8-axis multi-axis motion control, supporting complex motion control functions such as multi-axis synchronization, interpolation, and electronic cam. High-speed MS backplane bus enables high-speed data exchange and various modules.
Easy to Use, Easy to Port
IEC 61131-3 IDE 2.0 ladder diagram and ST programming; can be called from a host computer via API; supports multiple languages such as C# and Python; tag point table.
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
|
Product Model (Accessory Code) |
MCS 40（P620） |
|
Ethernet Interface |
1 |
|
EtherCAT Interface |
1 |
|
MS I/O Interface |
1 |
|
FEC Codes Upgrade Code | |
|
Add 1 Axis |
P982（Max. 4 Axes） |
|
Increase I/O Limit to 1024, AIO to 128 |
P981 |
|
Security |
P751 |
|
TrioBASIC |
P984 |
