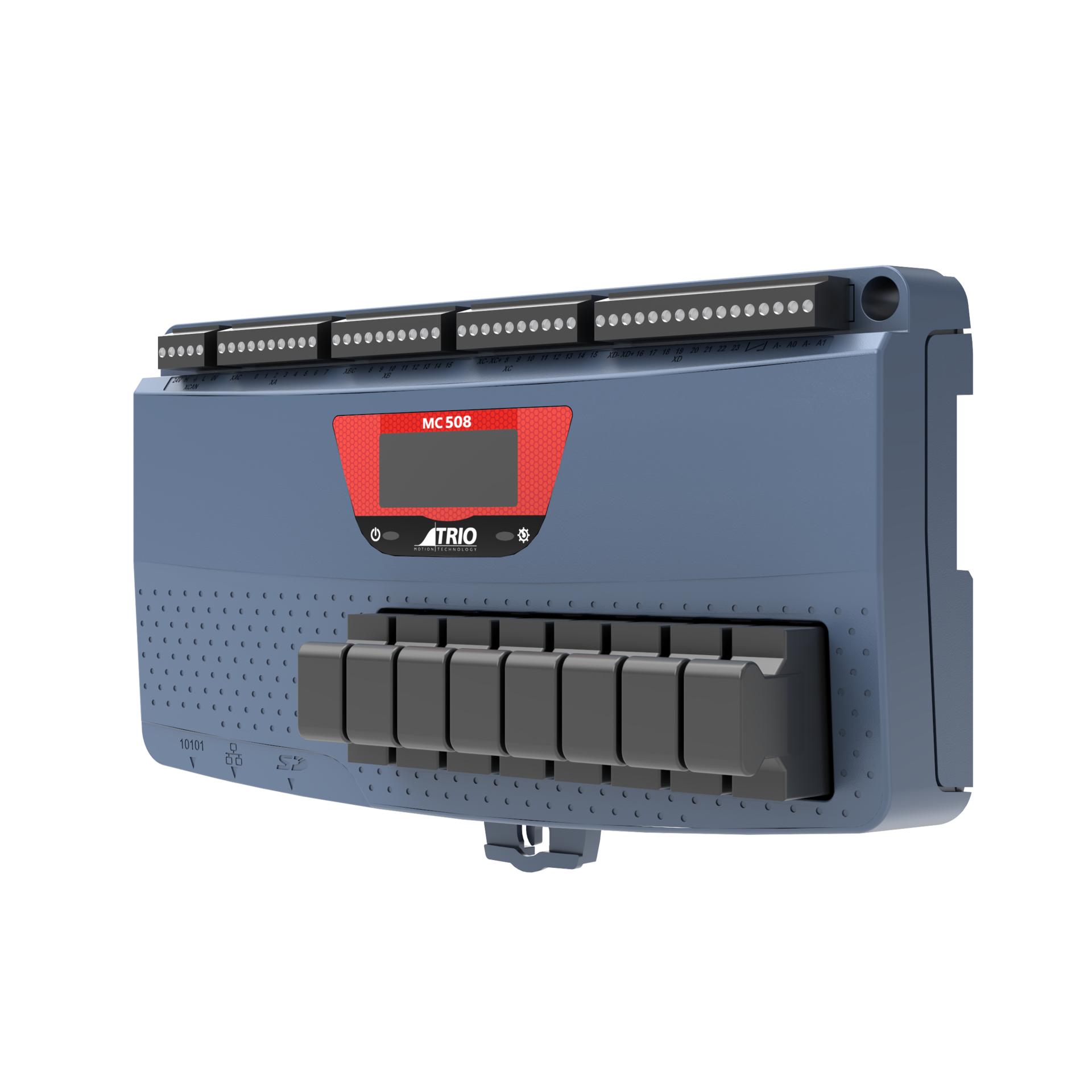

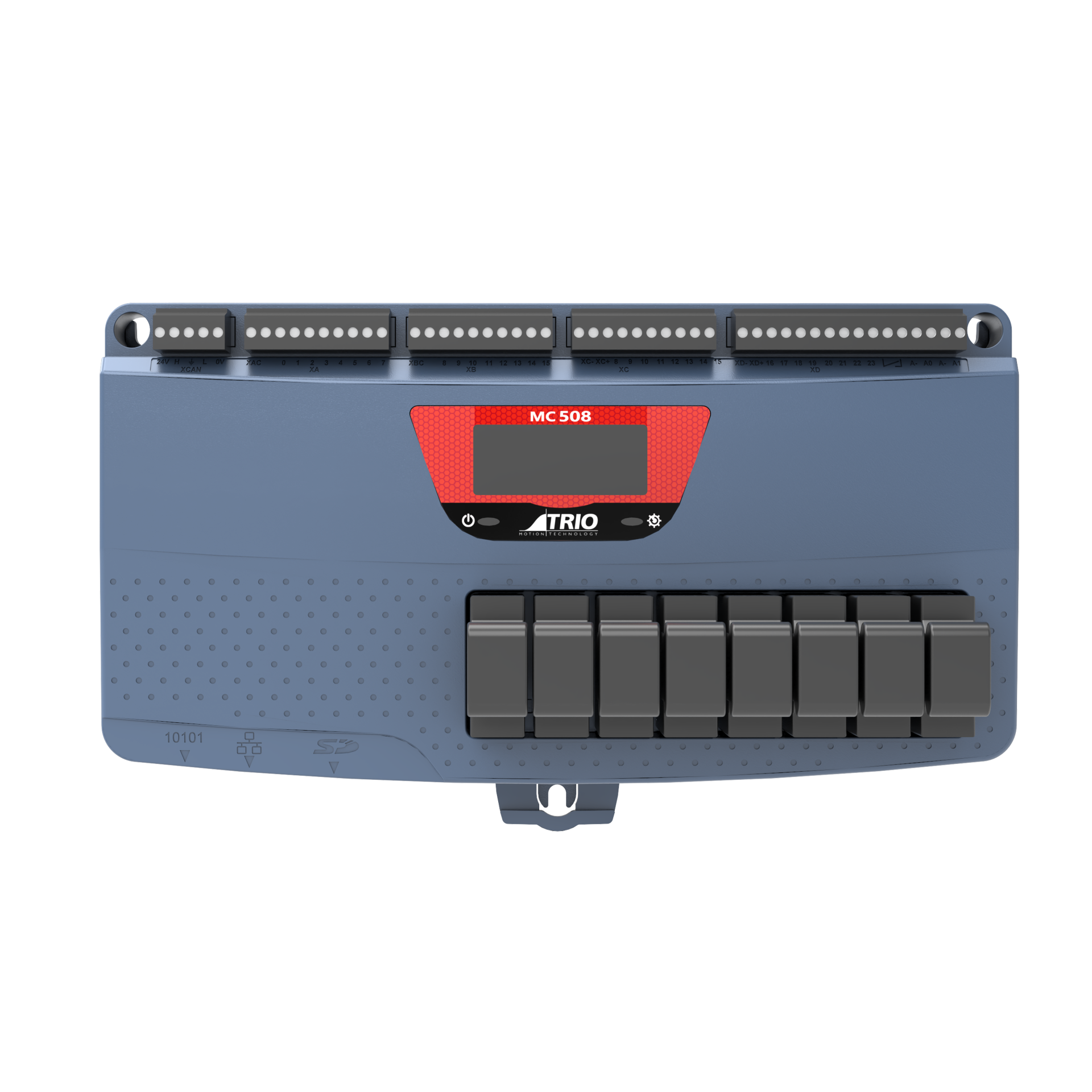

MC508 16-Axis High-Performance Motion Controller
The MC508 has two different axis configurations. Both configuration modes support 32 software axes. Any axis not assigned to built-in hardware can be used as a virtual axis. Each axis can be programmed to perform various motions, such as linear, circular, helical, and spatial circular interpolation, electronic cam, master-slave motion, and electronic gearing. The controller status can be easily identified through a bright, easy-to-read backlit display. At the same time, the base uses a single-piece metal housing, enhancing the system's grounding performance and improving the system's interference resistance in industrial sites.
Strong Axis Control Capability
Supports 8-axis closed-loop servo / 16-axis pulse and direction;
Excellent Performance
800 MHz ARM A9 VFP processor, precise 64-bit motion calculation;
Rich Motion Control
Supports linear, circular, helical, and spatial circular interpolation, flexible cam profiles, master-slave motion, and robot coordinate transformation;
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
|
Accessory |
Description |
|---|---|
|
P317–P327 |
CAN I/O Module |
|
P750 |
Robot Algorithm FEC |
|
P561–P563 |
UNIPLAY Touch Screen 7-inch & 10-inch & 15-inch |
|
Product Options | |||
|---|---|---|---|
|
P848 |
P849 |
P848 |
P849 |
|
Axis 0 Standard |
Expansion + Analog Closed-Loop Servo |
Axis 8 |
Pulse/Direction |
|
Axis 1 Standard |
Expansion + Analog Closed-Loop Servo |
Axis 9 |
Pulse/Direction |
|
Axis 2 Standard |
Expansion + Analog Closed-Loop Servo |
Axis 10 |
Pulse/Direction |
|
Axis 3 Standard |
Expansion + Analog Closed-Loop Servo |
Axis 11 |
Pulse/Direction |
|
Axis 4 Standard |
Expansion + Analog Closed-Loop Servo |
Axis 12 |
Pulse/Direction |
|
Axis 5 Standard |
Expansion + Analog Closed-Loop Servo |
Axis 13 |
Pulse/Direction |
|
Axis 6 Standard |
Expansion + Analog Closed-Loop Servo |
Axis 14 |
Pulse/Direction |
|
Axis 7 Standard |
Expansion + Analog Closed-Loop Servo |
Axis 15 |
Pulse/Direction |
|
Note: Standard axes can be configured in software as stepper and servo pulse outputs, and can also be configured for incremental encoder feedback or analog encoder output. In addition to the standard functions, expansion axes can also be configured for absolute encoders, including SSI, Tamagawa, and EnDat. Analog closed-loop servo uses built-in ±10 V output. | |||
