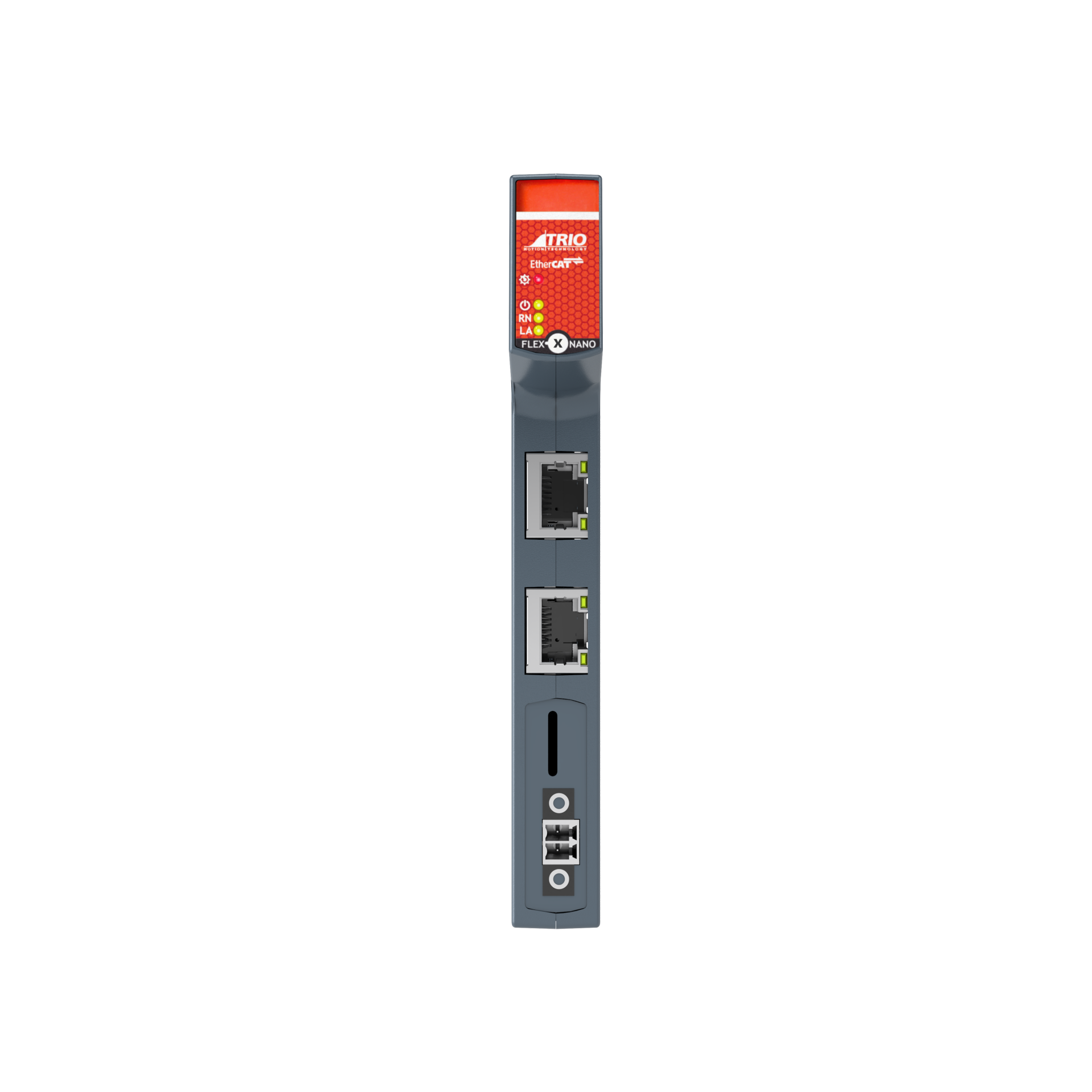

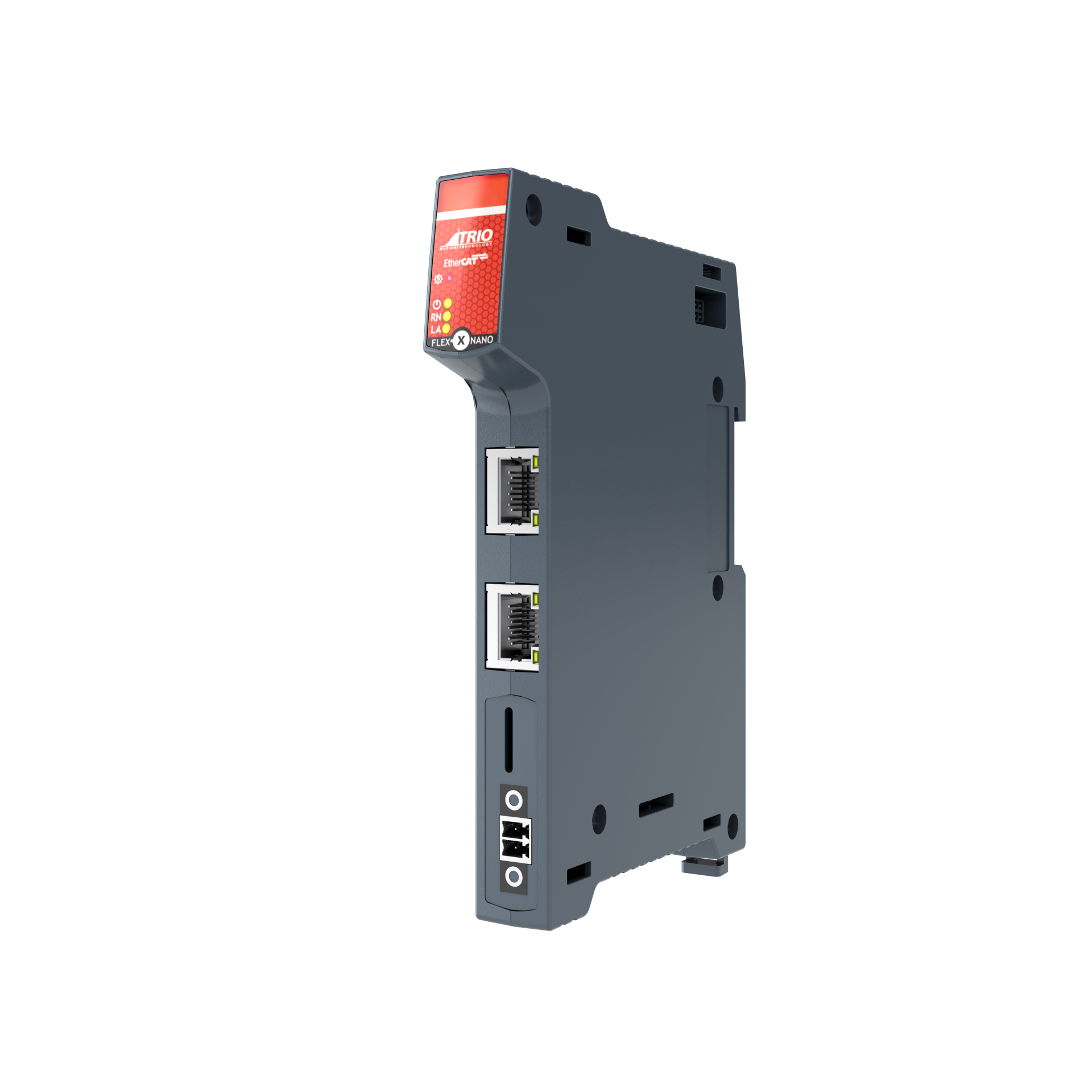

FLEX-X Nano Compact 64-Axis Controller
Flex-X Nano provides a compact integrated EtherCAT solution, supporting up to 64 motion axes and can be expanded via the matching FlexSlice system.
Compact Size
Built-in EBUS connector with a "latch" design, compact structure, and the unit can directly expand Trio's FlexSlice slave modules;
Convenient Storage
Memory can be expanded via a Micro SD card;
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
Product Parameters
| No. | Expansion Module 1 | No. | Expansion Module 2 |
|---|---|---|---|
| P362 | FlexSlice Power Connection | P376 | FlexSlice 16-Channel NPN Output |
| P366 | FlexSlice EtherCAT Coupler | P377 | FlexSlice 16-Channel NPN Input |
| P367 | FlexSlice Thermocouple | P378 | FlexSlice 8-Channel Analog Output |
| P368 | FlexSlice RTD Module | P379 | FlexSlice 8-Channel Analog Input |
| P371 | FlexSlice 16-Channel PNP Output | P386 | 32-Channel NPN Output |
| P372 | FlexSlice 16-Channel PNP Input | P387 | 32-Channel NPN Input |
| P374 | FlexSlice 2-Channel Analog Axis Module | P561 | UNIPLAY 7A |
| P375 | FlexSlice Flex 3-Axis Module | P562 | UNIPLAY 10A |
| P752 | Trio RPS FEC |
Product Description
| Product Description | ||
|---|---|---|
| P660 | FLEX-X Nano | 2-Axis |
| P661 | FLEX-X Nano | 4-Axis |
| P662 | FLEX-X Nano | 8-Axis |
| P663 | FLEX-X Nano | 16-Axis |
| P664 | FLEX-X Nano | 32-Axis |
| P665 | FLEX-X Nano | 64-Axis |
