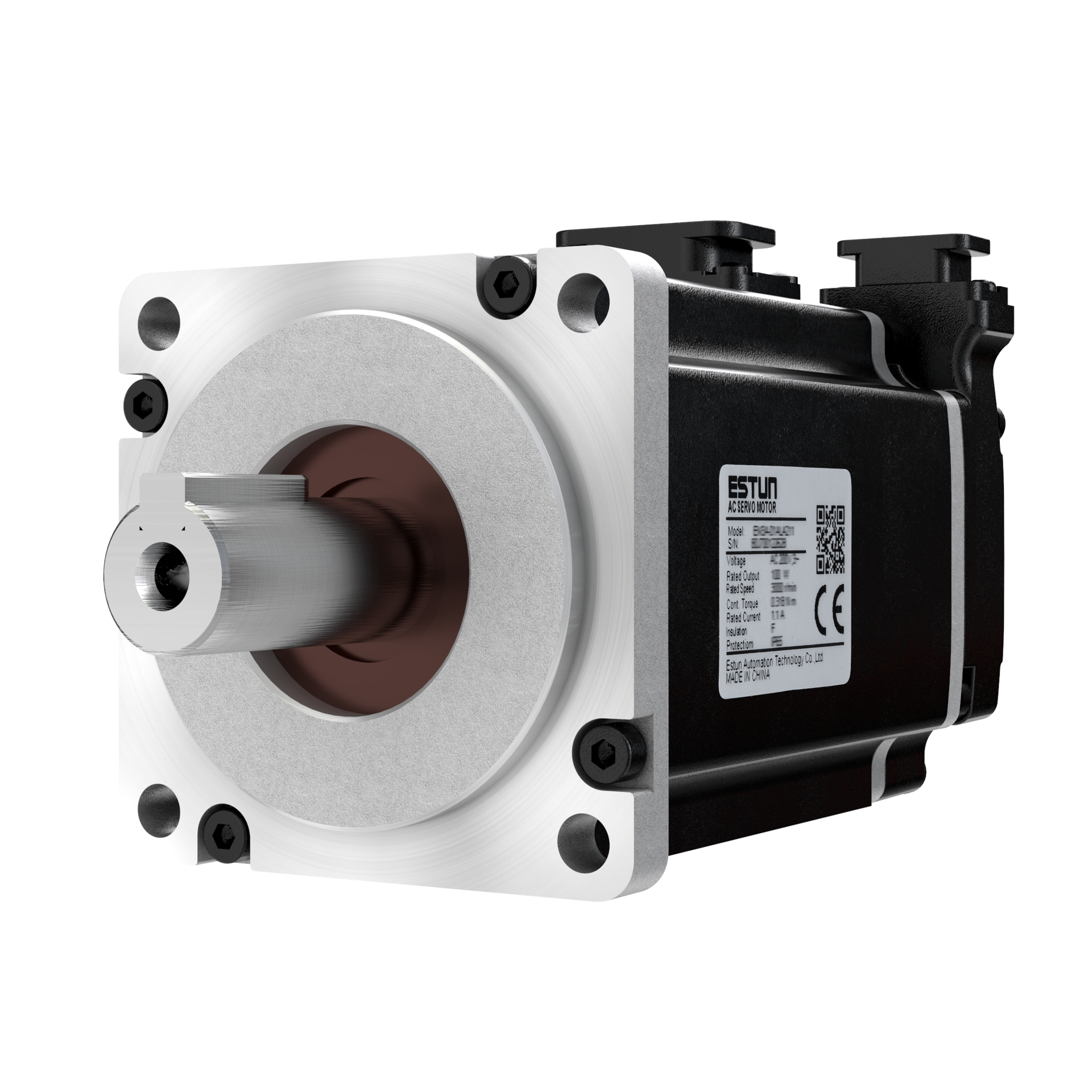

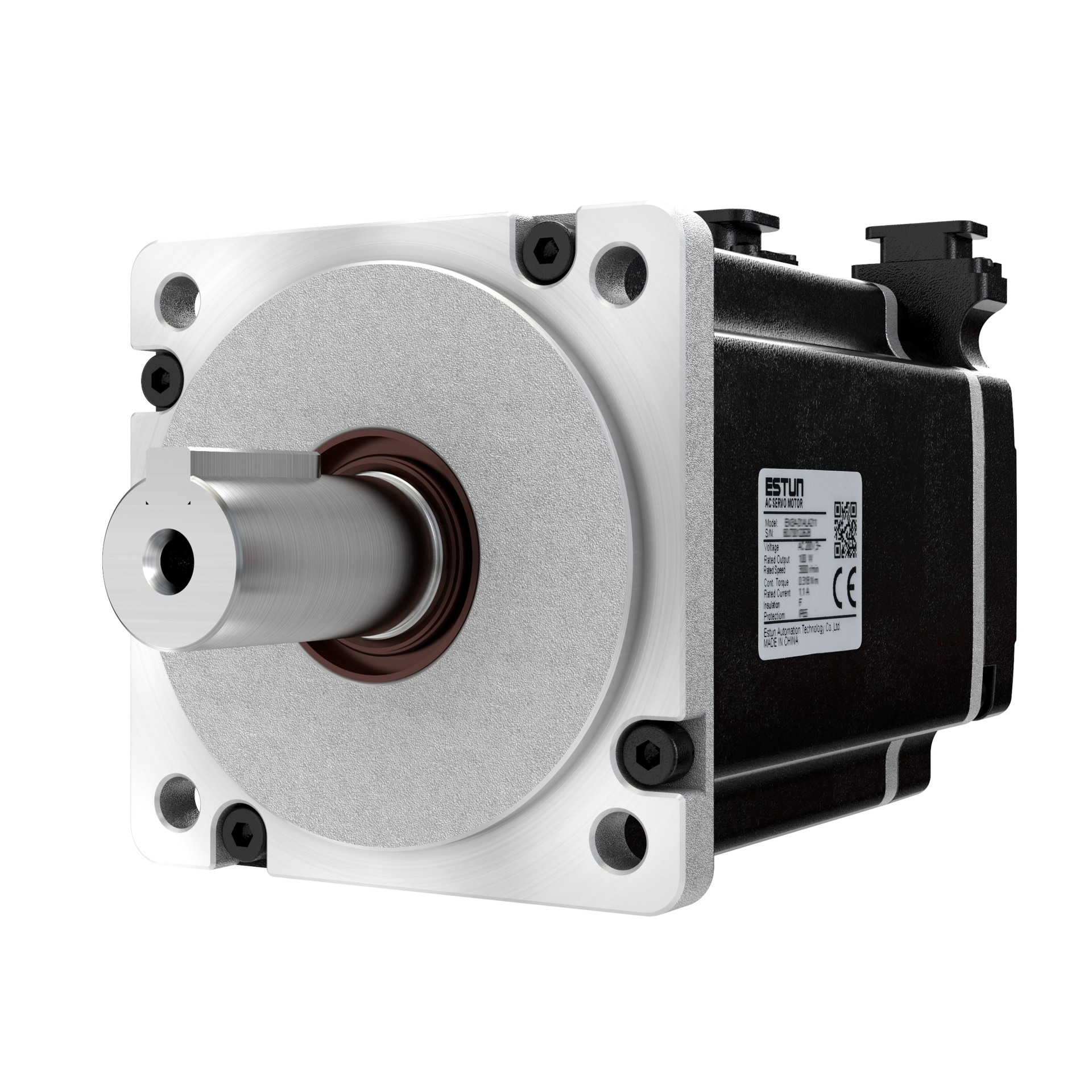

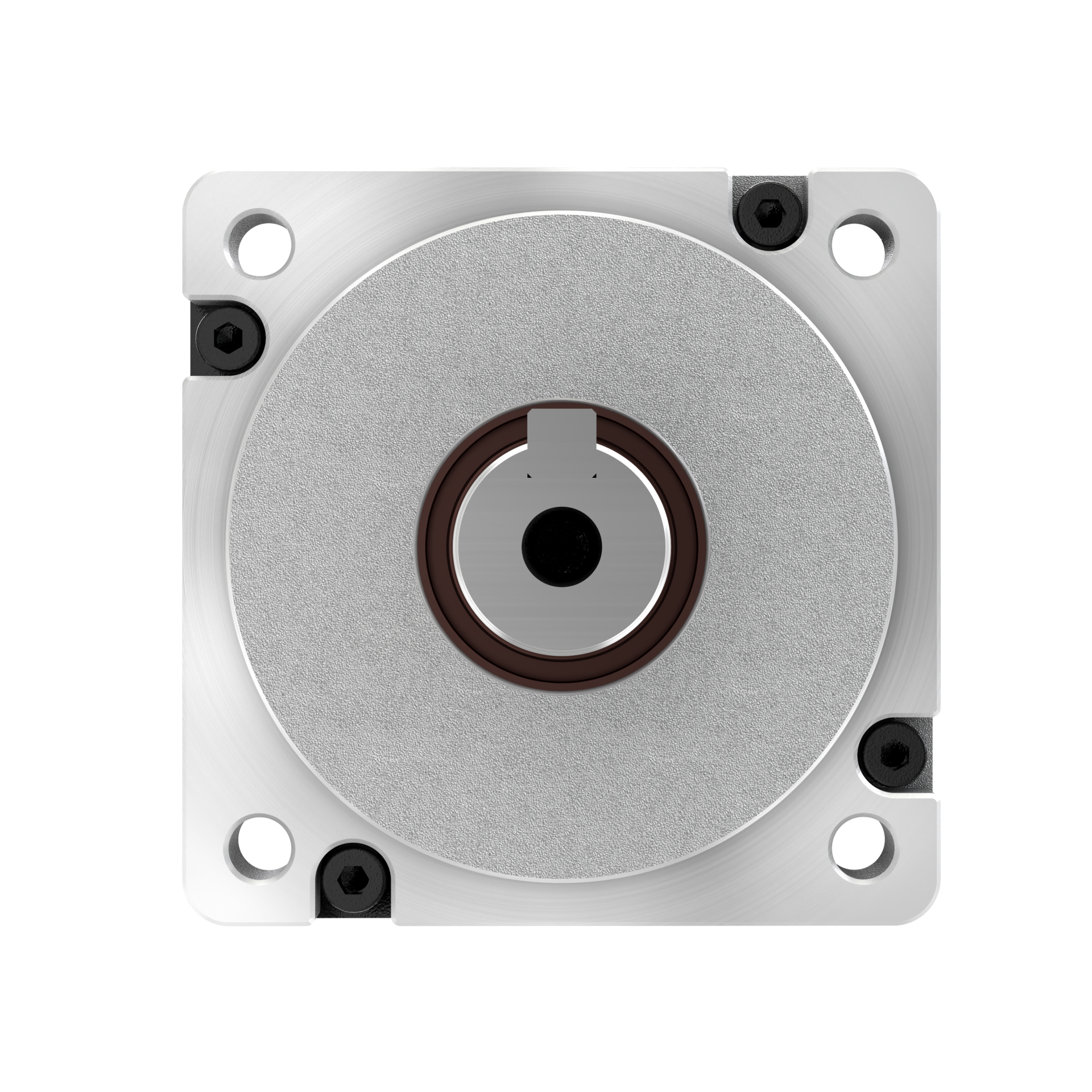

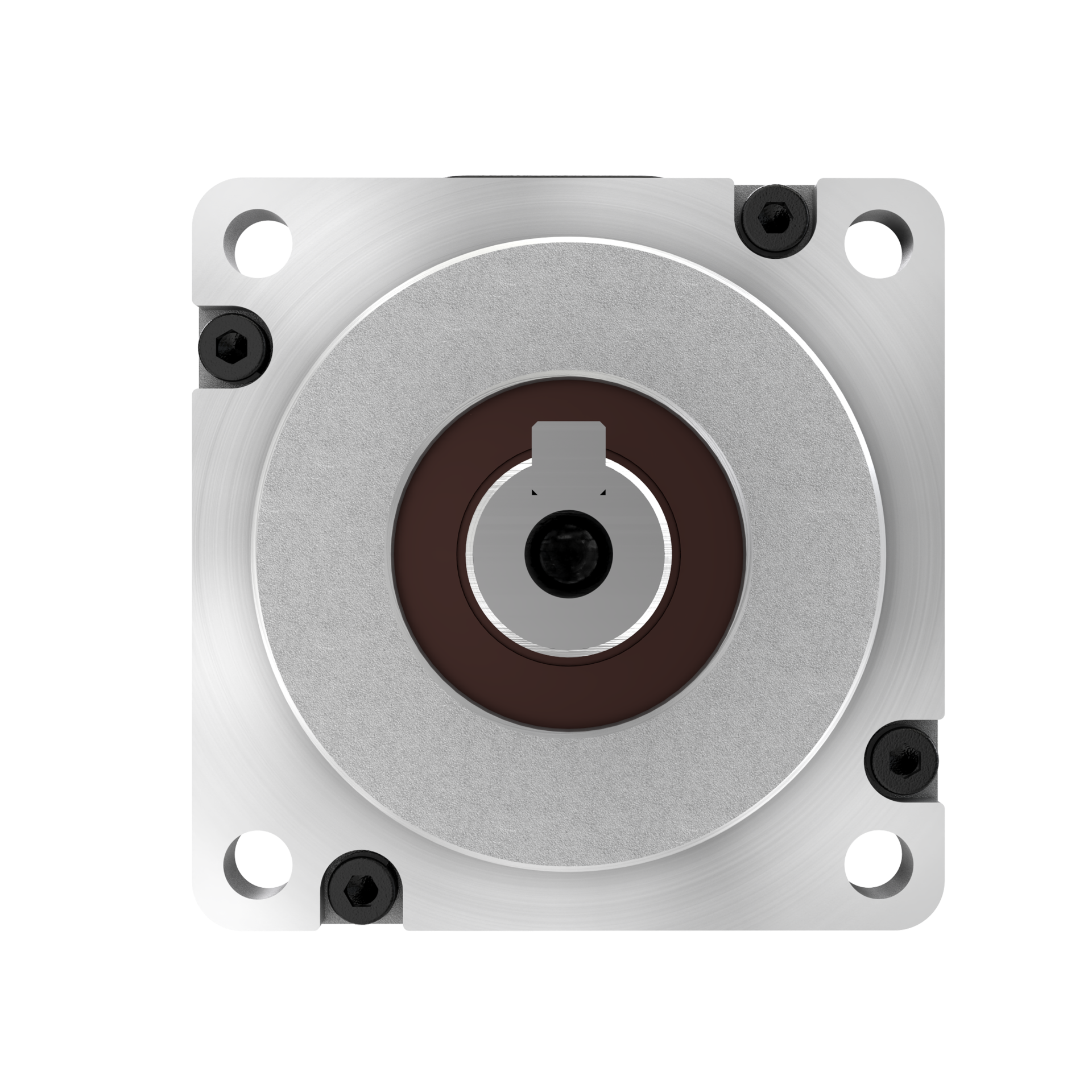

EM3J Series Medium-Inertia Servo Motor
EM3J系列中惯量伺服电机产品，功率覆盖200w-1.0kw、额定转速3000rpm，防护等级最高支持IP67，支持CE、UL等认证要求。
High Protection
Protection rating IP67, with strong temperature resistance, capable of operating normally in harsh environments and adapting to more demanding humid, dusty, and complex industrial environments
Comprehensive Certifications
Supports certification requirements such as CE and UL, meeting the stringent electrical safety and electromagnetic compatibility requirements of global markets, facilitating barrier-free export and widespread application of equipment.
Flexible Configuration
Optional configurations are available according to customer requirements, including flat key, threaded shaft end, with or without brake, connector type, etc.
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
| Voltage Level | 200VAC | 400VAC | |||||||||
|
EM3- Flange [mm] | 02AT | 02AL | 04AT | 04AL | 08AT | 08AL | 10AT | 10AL | 10DT | 10DL | |
| 60 | 60 | 80 | 80 | 80 | |||||||
| Rated Power [kW] | 0.2 | 0.4 | 0.75 | 1.0 | 1.0 | ||||||
| Rated Speed [r/min] | 3000 | 3000 | 3000 | 3000 | 3000 | ||||||
| Maximum Speed [r/min] | 6000 | 7000 | 6000 | 7000 | 6000 | 7000 | 6000 | 7000 | 6000 | 7000 | |
| Rated Torque [N·m] | 0.637 | 1.27 | 2.39 | 3.18 | 3.18 | ||||||
| Maximum Torque [N·m] | 1.91 | 2.23 | 3.81 | 4.46 | 7.17 | 8.37 | 9.54 | 9.54 | |||
| Rated Current [Arms] | 1.5 | 2.8 | 5.1 | 7.1 | 3.8 | ||||||
| Maximum Current [Arms] | 4.7 | 5.8 | 8.8 | 11.2 | 16.1 | 19.5 | 22.0 | 11.9 | |||
| Rotor Inertia [10⁻⁴ kg·m²] | 0.330（0.360） | 0.640（0.680） | 1.64（1.79） | 2.26（2.41） | 2.26（2.41） | ||||||
| Allowable Load at Shaft End | Radial [N] | 245 | 245 | 392 | 392 | 392 | |||||
| Axial [N] | 74 | 74 | 147 | 147 | 147 | ||||||
| Brake Specifications | Rated Voltage | 24VDC | 24VDC | 24VDC | 24VDC | 24VDC | |||||
| Holding Torque [N·m] | ≥1.5 | ≥1.5 | ≥3.2 | ≥3.2 | ≥3.2 | ||||||
| Weight [kg] | 0.9(1.3) | 1.3(1.7) | 2.3(2.9) | 3.1(3.8) | 3.1(3.8) | ||||||
Note: Values in parentheses indicate those of motors with a brake.
