CAN Bus I/O Module Series

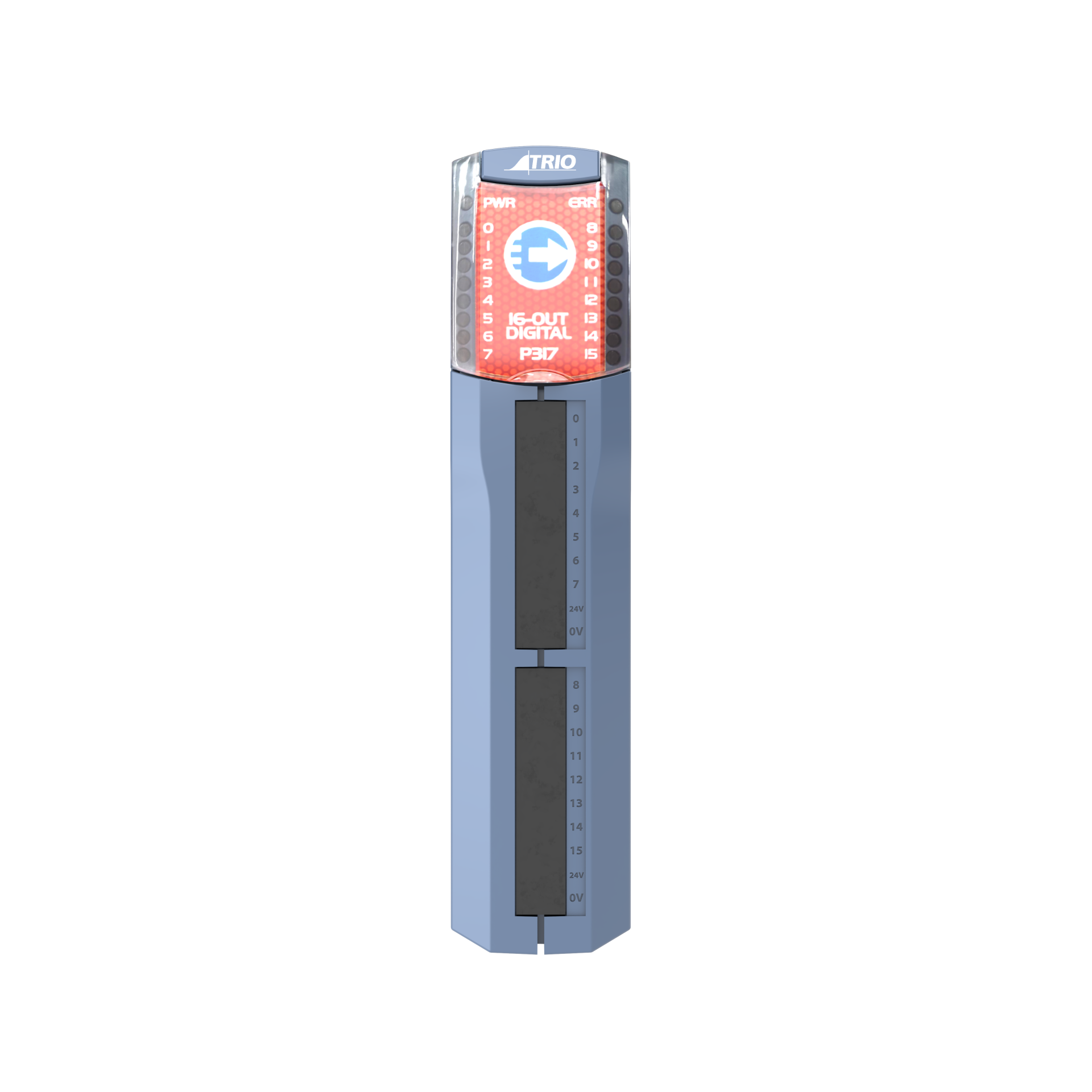

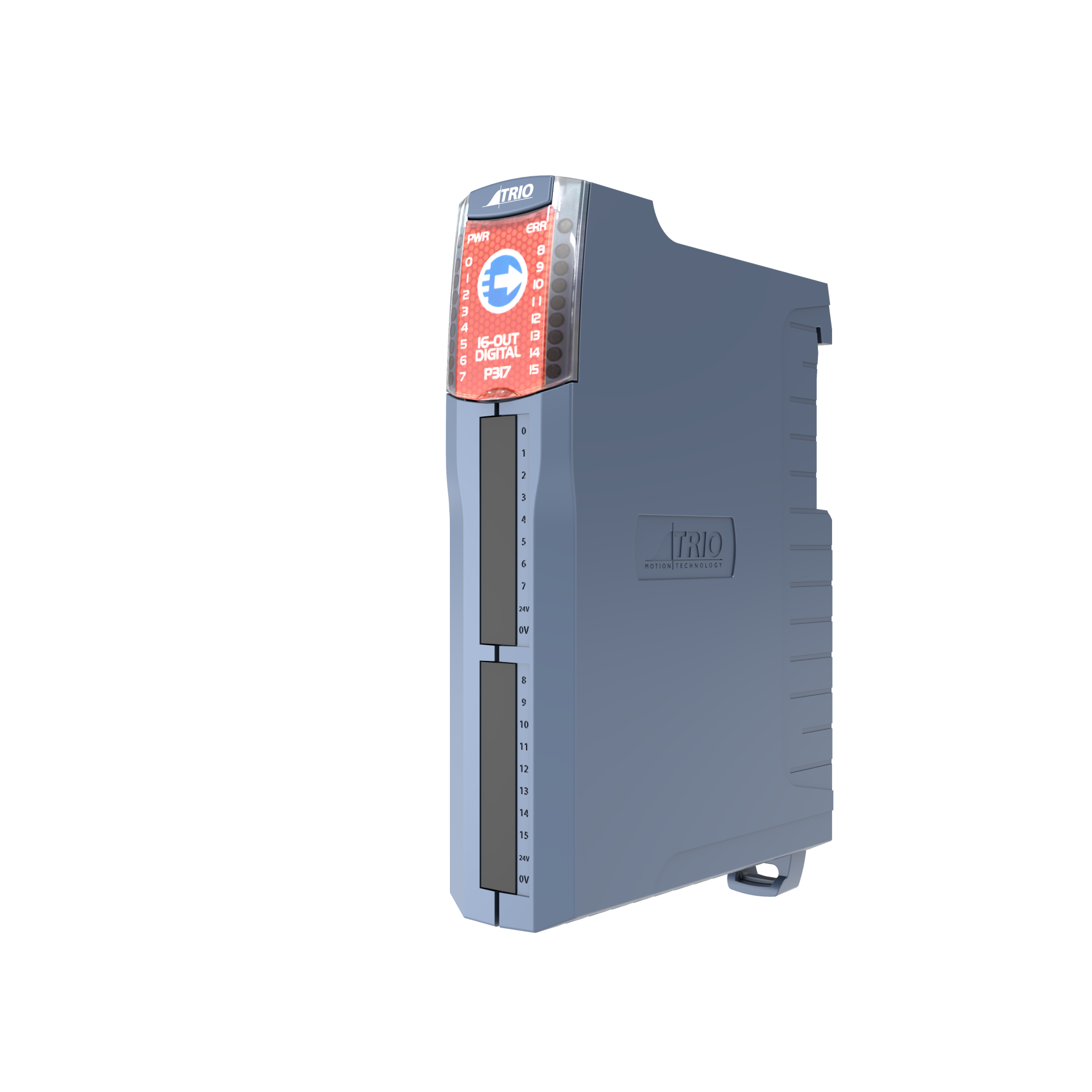

The Trio CAN module provides a DIN-rail-mounted output expansion function for all controllers. Up to 16 P317 modules can be connected on a 100-meter-long CAN network. The P317 module supports 26 distributed 24 VDC output channels. All points are short-circuit protected and fully isolated from the CANbus. The P317 module can be mixed with other module types in the CAN I/O series on the same bus.

Module Types
Supports digital and analog modules;

High Reliability
All CAN I/O modules are compatible with any motion coordinator equipped with a CANbus port, offering strong interference resistance;

Convenient and Easy to Use
In addition to being able to connect to any motion coordinator using Trio's own high-speed CANbus protocol, each CAN module can run the DS401 CANopen protocol, allowing them to be used with other CANopen masters. Protocol selection is made via the DIP switch on the front of the module;

3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy

Attributes	P317: CAN 16-Channel Digital Output	P318: CAN 16-Channel Digital Input	P319: CAN 16-Channel Digital Input/Output
Function Description	The Trio CAN 16-channel output module can provide up to 256 distributed 24 VDC output channels.	The Trio CAN 16-channel input module can provide up to 256 distributed 24 VDC input channels.	The Trio CAN 16-channel input/output module can provide up to 256 distributed 24 VDC bidirectional I/O channels.
Channel Type and Quantity	16 x 24 V sourcing (PNP) output channels	16 x 24 V sourcing (PNP) input channels	Input: 16 x 24 V input channels, 2500 V isolation; Output: 16 x 24 V sourcing (PNP) output channels
Configuration	2 x 8 output channels	2 x 8 output channels	2 x 8 bidirectional input/output channels
Output Capacity (for modules with outputs)	250mA/通道 → 1 A per terminal (8 channels), 250 mA/channel	None (not applicable to input modules)	1 A per terminal (8 channels), 250 mA/channel
Network Speed	500KBit/s	500KBit/s	500KBit/s
Protocol	Trio CAN I/O / CANopen DS401	Trio CAN I/O / CANopen DS401	Trio CAN I/O / CANopen DS401
Certification	RoHS、CE、UL、EMC	RoHS、CE、UL、EMC	RoHS、CE、UL、EMC

Attributes	P326: CAN Analog I/O 8-Channel Input / 4-Channel Output	P327: CAN 8-Channel Relay Output
Function Description	The Trio CAN analog I/O module can provide up to 32 analog input channels and 16 output channels	The TrioCAN 8-channel relay module provides 128 distributed low-power relay channels for each motion controller.
Input	8 x 12-bit ±10 V inputs, isolated from the CAN bus	8-channel relay 30 VDC / 49 VAC
Output	4 x 12-bit +10 V outputs, isolated from the CAN bus	4 x NO + NC connections (4 x NO only connections)
Network Speed	500KBit/s	500KBit/s
Protocol	TrioCAN I/O / CANopen DS401	TrioCAN I/O / CANopen DS401
Certification	RoHS、CE、UL、EMC	RoHS、CE、UL、EMC
