MC403-X 3-Axis Compact Motion Controller

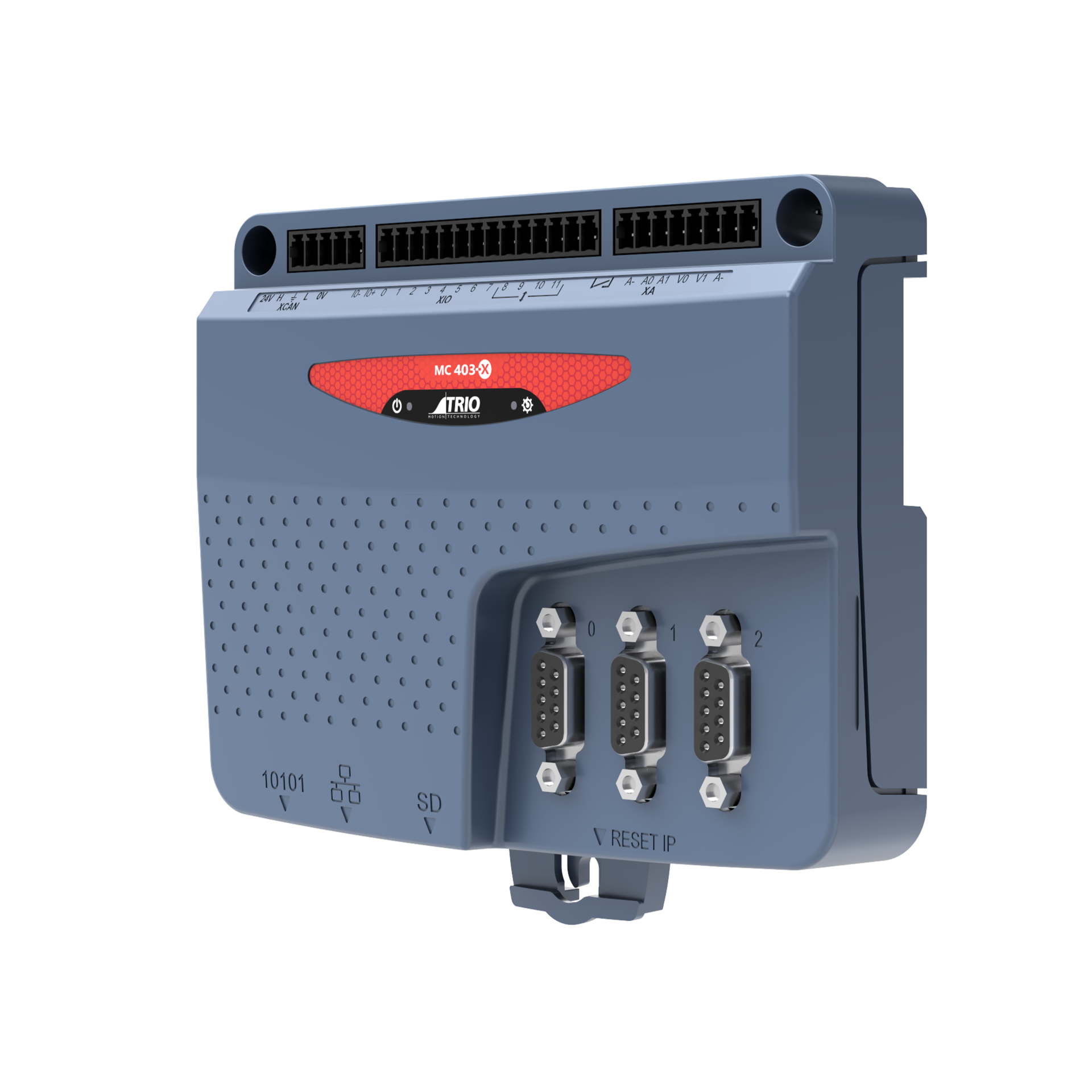

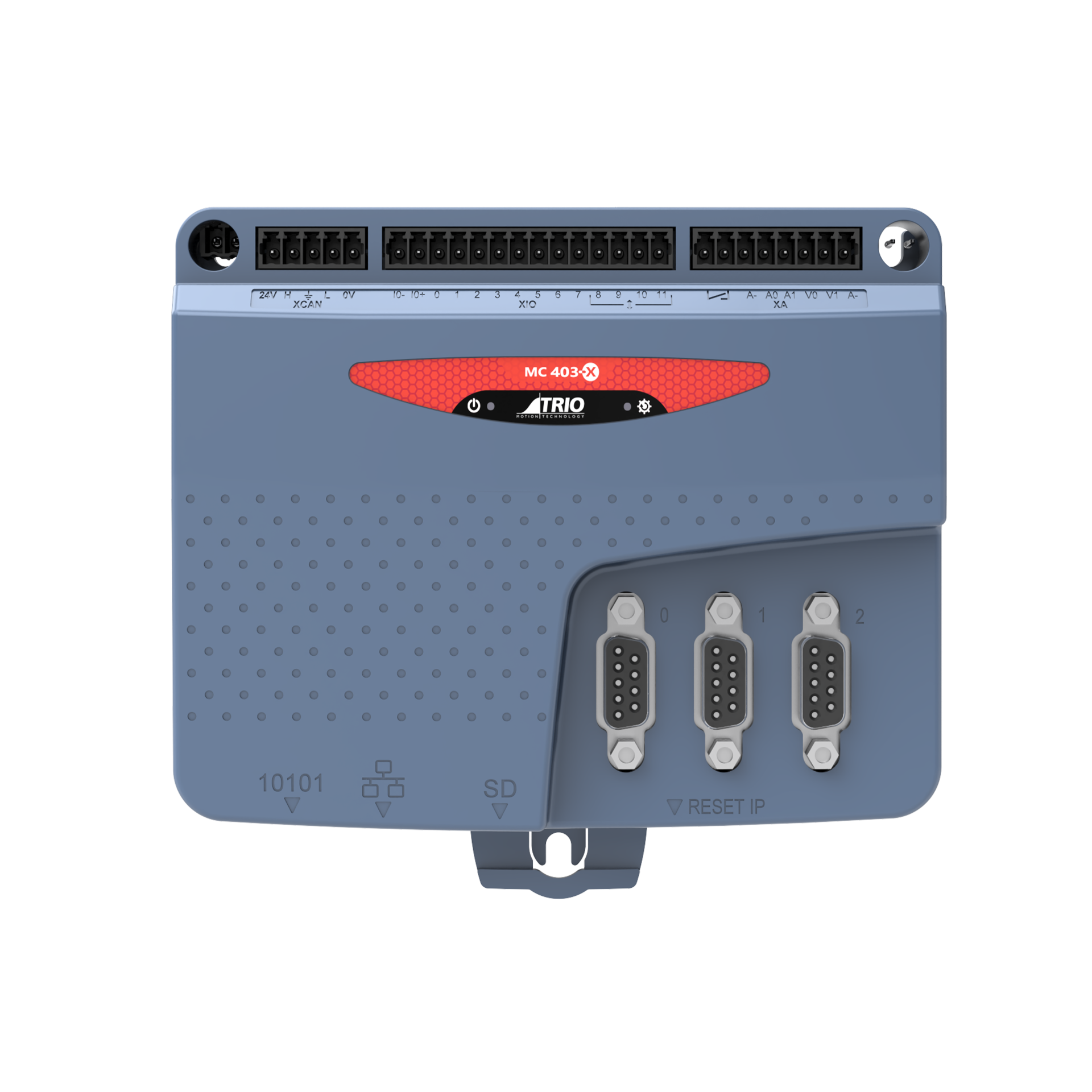

The MC403-X is available in three versions and supports a variety of different axis configurations. All versions feature 16 virtual axes. Any axis not assigned to hardware can be used as a virtual axis. Each axis can be programmed to perform various motions, such as linear, circular, helical, and spatial circular interpolation, electronic cam, master-slave motion, and electronic gearing. Two LEDs make it easy to identify the controller status. The MC403-X is mounted in a rugged plastic housing with an integrated grounded chassis and includes all isolation circuits required for direct connection to external devices in industrial environments. A built-in filtered power supply allows it to be powered from the 24 VDC logic supply found in most industrial cabinets.

Excellent Performance
Cortex M7 VFP processor, precise 64-bit motion calculation;

Rich Motion Control
Two-axis closed-loop servo / 3-axis pulse and direction, supporting linear, circular, helical, and spatial circular interpolation;

High Positioning Accuracy
Maximum encoder differential input frequency: 6 MHz; maximum pulse differential output frequency: 2 MHz;

3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy

Item	P865	P866	P867
Axis 0 Expansion	Expansion	Expansion + Analog Closed Loop	Expansion + Analog Closed Loop
Axis 1 Expansion	Expansion	Expansion	Expansion + Analog Closed Loop
Axis 2 Expansion	Expansion	Expansion	Expansion
Description	Expansion axes can be configured in software as stepper and servo pulse/direction outputs. They can also be configured for incremental encoder feedback or analog encoder output, and can also be configured for absolute encoders, including BiSS, SSI, Tamagawa, and EnDat.	Analog closed-loop servo: Analog closed-loop servo uses built-in ±10 V output. Same as P865 description.	Same as P865 description

	FileName	Category	Format	Release Date	Operation
