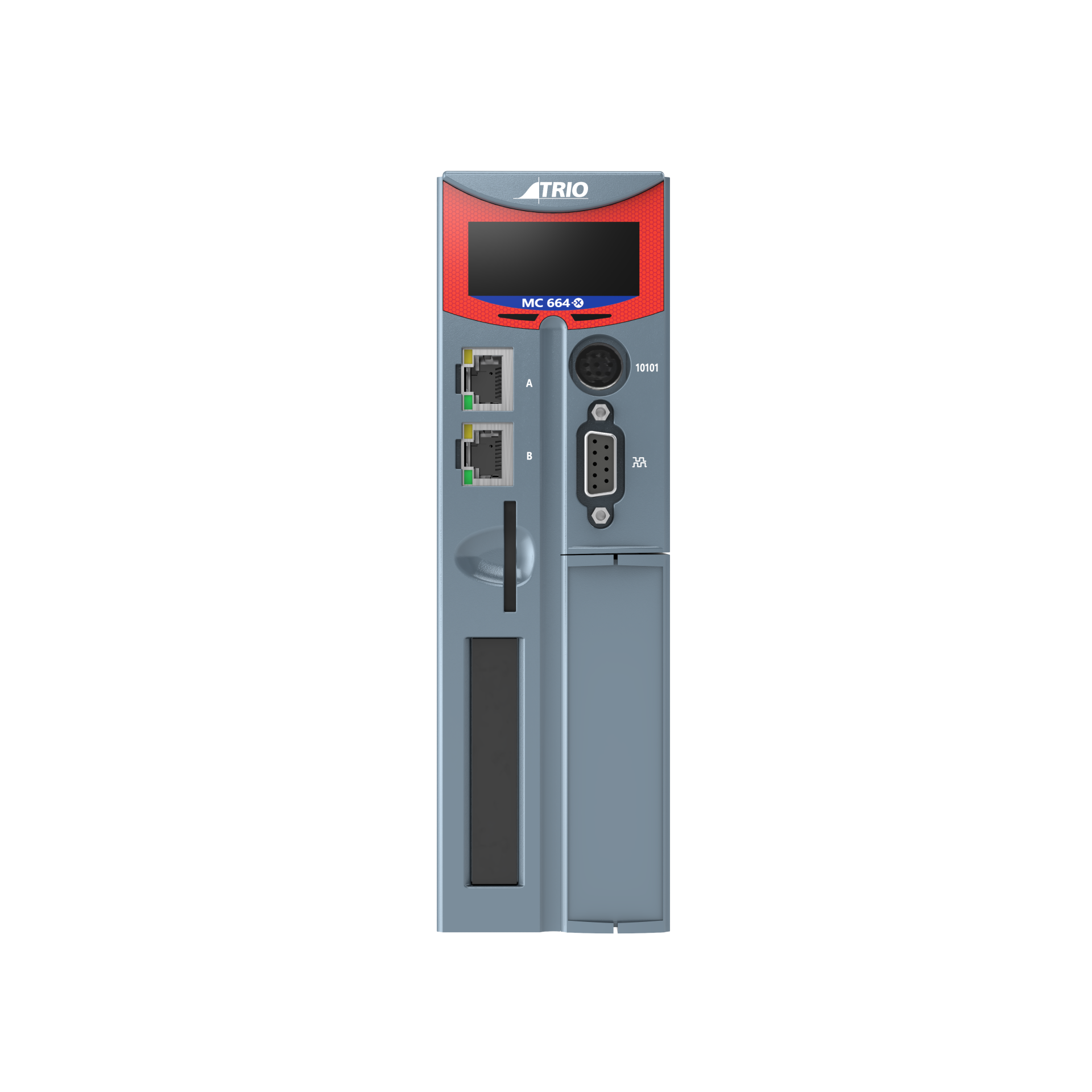

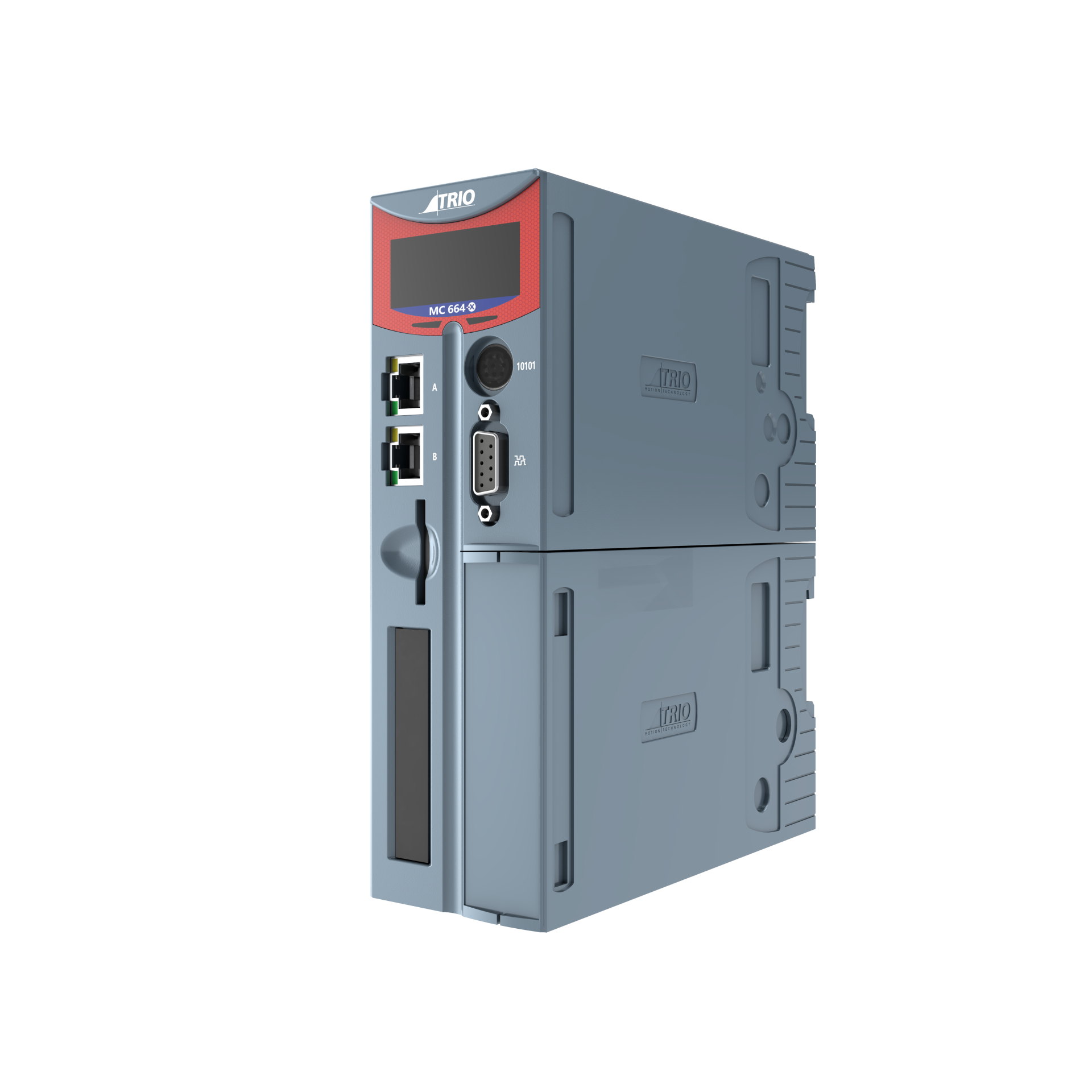

MC664-X 64-Axis High-Performance Motion Controller and Expansion Modules
Controller: The MC664/MC664-X is the highest-performance and ultra-flexible motion controller based on a quad-core Cortex-A9 1 GHz ARM processor. It supports 128 software axes, including 64 motor axes and 64-bit integer position registers. 64-bit floating-point calculation supports ultra-high-precision axis resolution. Through expansion modules, the MC664 supports up to 64 digital network drives, 24 analog servo drives, 25 stepper drives, and 25 absolute and incremental encoders.
Excellent Performance
64-bit computing capability, using a quad-core Cortex-A9 1 GHz processor
Axis Control Capability
Supports up to 128 axes — including 64 stepper/servo axes and 64 virtual axes — with a built-in EtherCAT interface.
Flexible Programming
Supports IEC 61131-3 programming and multi-tasking TrioBASIC programming. Expansion I/O modules: supports digital and analog modules, axis encoder input/output modules, RTEX expansion, RS485 expansion, etc.
Convenient Axis Expansion
Expansion axes can be configured to support absolute encoders, including SSI, EnDat, and Tamagawa.
3C
semiconductor
Precision Manufacturing
electrical appliance
medical device
new energy
| Product Code | Description | |||||
|---|---|---|---|---|---|---|
| P861 MC664 | Single-Core Processor | |||||
| P862 MC664X | Quad-Core Processor | |||||
| Accessories | ||||||
| P317 - P327 | CAN I/O Module | |||||
| P366 - P379 | EtherCAT FlexSlice System | |||||
| P381 | MC664 FlexAxis Branch Cable | |||||
| P750 | Robot Algorithm FEC | |||||
| P871 | MC664 RTEX Interface | |||||
| P872 | MC664 Sercos Interface | |||||
| P873 | MC664 SLM Interface | |||||
| P874 | MC664 FlexAxis 8 Interface | |||||
| P875 | MC664 Anybus-CC Module | |||||
| P878 | MC664 Blank Module | |||||
| P879 | MC664 FlexAxis 4 Interface | |||||
| P843 - P844 | UNIPLAY Touch Screen 7-inch & 10-inch | |||||
| P914 | 2x EtherCAT Axis | |||||
MC664 Expansion Options | ||||||
| Item | P876 | P872 | P871 | P873 | P878 | P875 |
| Network | EtherCAT | Sercos | Panasonic (RTEX) | SLM | ||
| Network Speed | 100 Mbps | 4, 8 or 16 Mbps | 100 Mbps | SLM Standard | ||
| Topology | Bus Structure | Ring Structure | Ring Structure | Star Structure | ||
| Maximum Axes per Interface | 64 | 16 | 32 | 6 | ||
| Maximum Interfaces per MC664 | 7 | 7 | 7 | 7 | ||
| Maximum Axes Supported by MC664 | 64 | 64 | 64 | 42 | ||
| Cable | STP Cat 5-e | Fiber Optic | STP Cat 5-e | RS485 | ||
| Bus Connected to MC664 | 32-bit | 32-bit | 32-bit | 32-bit | ||
| Built-in Time-Based Position Registration | 8 x 24 V Input | 8 x 24 V Input | 8 x 24 V Input | 6 x 24 V Input | ||
| Optically Isolated Registration Mark Input | Supported | Supported | Supported | Supported | ||
| Map Any I/O to Any Axis | Supported | Supported | Supported | Supported | ||
| Remote Registration Mark | Supported | Supported | Invalid | Invalid | ||
| Note | If there is any gap in the system, the blank module ensures that the system is mechanically tied together. P878 has no communication bus connection, but grounding is required. P878. | P875 supports the following Anybus CompactCom modules. These AnybusCC modules can be purchased separately: Profibus, DeviceNet, CANopen, CC-Link, EtherNet/IP, EtherCAT, Modbus-TCP, Modbus-RTU, USB, RS232, RS485, Profinet I/O, Bluetooth. | ||||
